Frost Protection Cable - Heat Trace - Freezing / Frozen Pipe c/w Thermostat

The ELEKTRA FreezeTec system protects pipes and valves even in freezing winter. With ELEKTRA FreezeTec your concerns over damage to water main pipes or valves whether inside or out are eliminated. The system is quick and easy to install. ELEKTRA FreezeTec is intended for the protection of pipes and valves susceptible to damage caused by low/freezing temperatures.

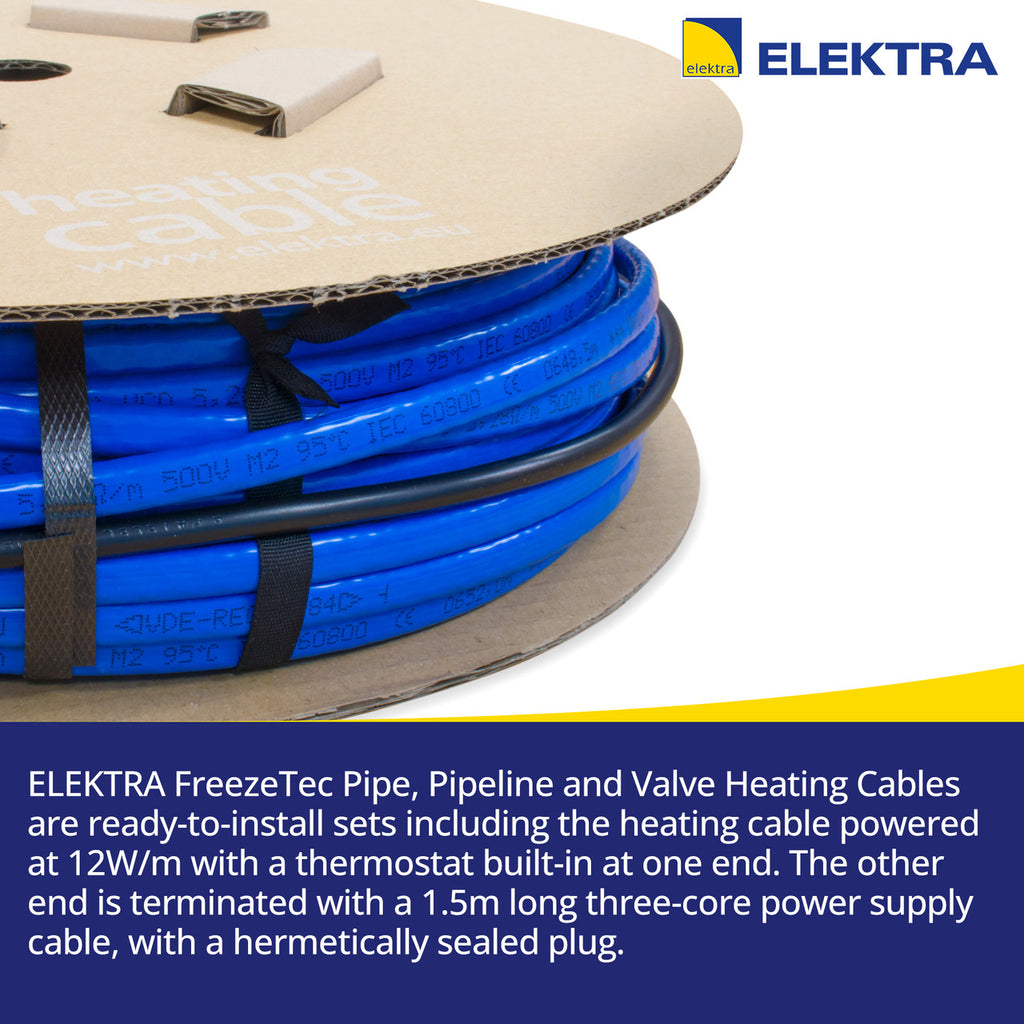

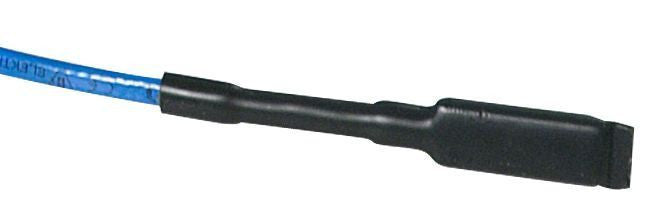

ELEKTRA FreezeTec Pipe, Pipeline and Valve Heating Cables are ready-to-install sets including the heating cable powered at 12W/m with a thermostat built-in at one end. The other end is terminated with a 1.5m long three-core power supply cable, with a hermetically sealed plug. The thermostat will switch on the cable in the ambient temperature of +3°C and switch off at +10°C.

FreezeTec Can Be Used for Preventing Frozen:

• Water Fixtures
• Sewage Systems
• Sprinkler Systems
• Hydrants
• Air Conditioning and Ventilating Pipe Systems

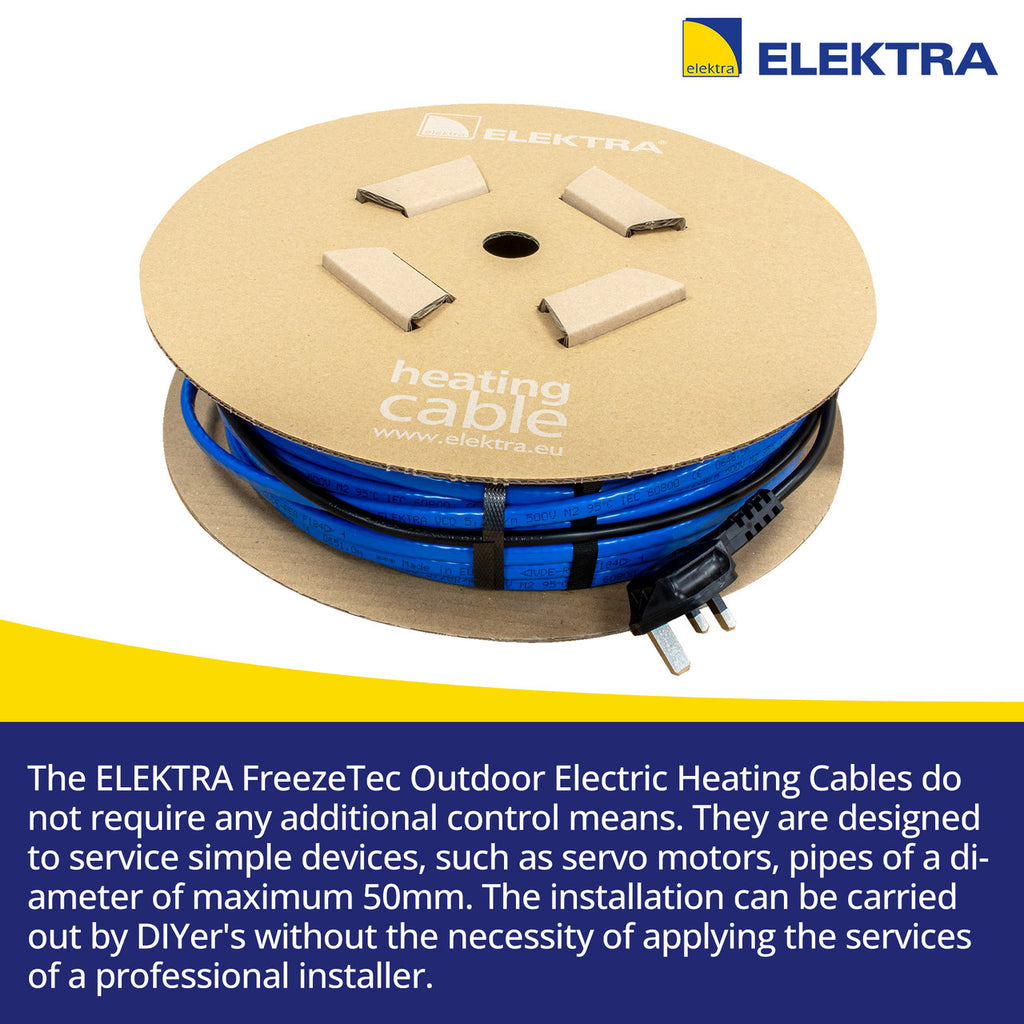

The ELEKTRA FreezeTec Outdoor Electric Heating Cables do not require any additional control means. They are designed to service simple devices, such as servo motors, pipes of a diameter of maximum 50mm. The installation can be carried out by DIYer's without the necessity of applying the services of a professional installer.

The System May be Used With the Following Conditions:

• External diameter of pipe to be insulated should not exceed 50mm;
• Pipe insulation thickness should be between min. 10 mm and max. 20 mm;
• Temperature of the protected pipe should not exceed +65°C;
• Min. Ambient Temperature – 25°C.

Technical Specifications:

• Thermostat Turn-on Temperature: +3°C;
• Turn-off Temperature: +10°C;
• Power Output: 12 W/m;
• Power Supply: 230V, 50/60Hz.
