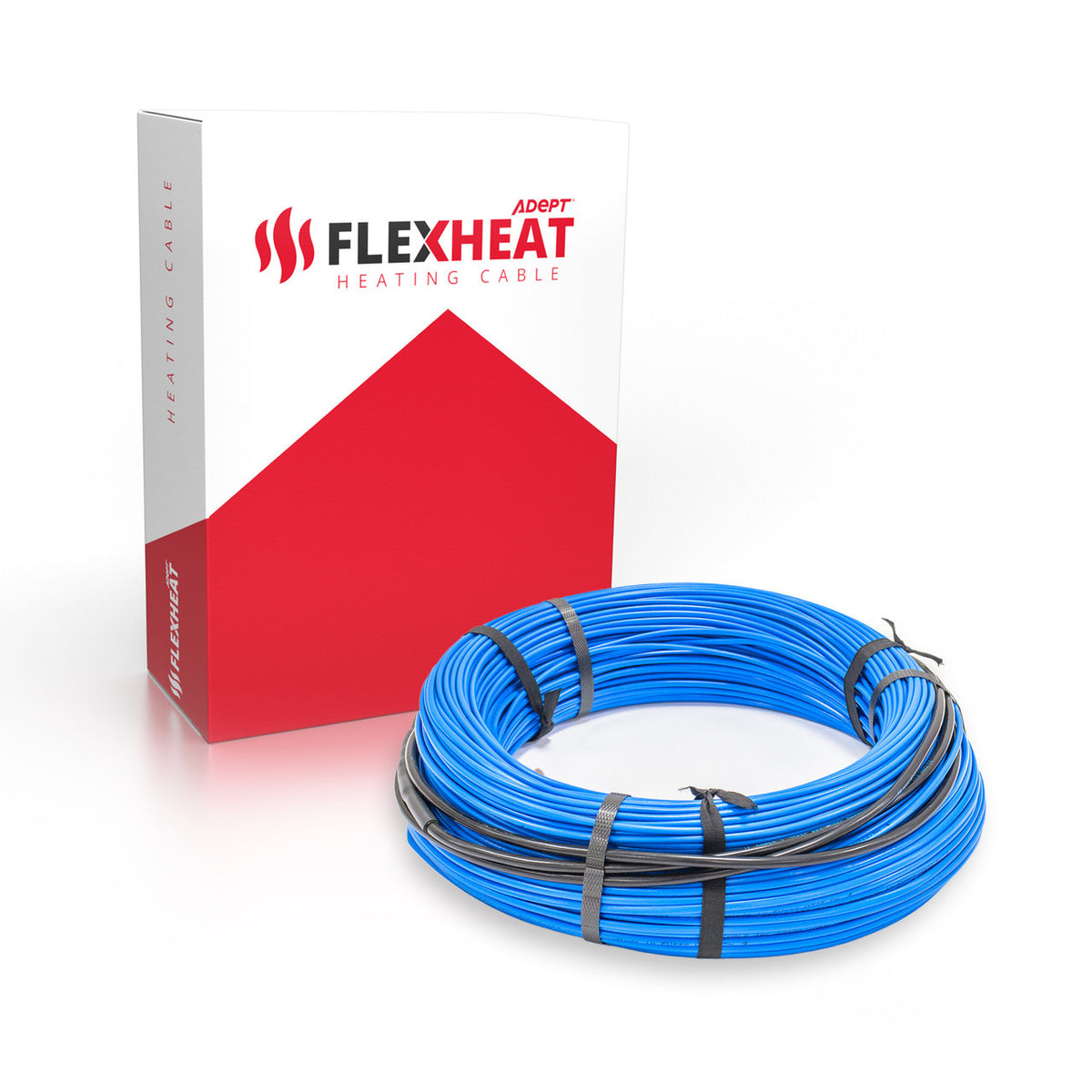

Flexheat Electric Underfloor Heating Cable with FLEX•GRID Decoupling Membrane
Flexheat
Flexheat Electric Underfloor Heating Cable with FLEX•GRID Decoupling Membrane
Product code: FLEXCABLE/105-1
EAN: 5056447723823
Project calculator
Calculate your cable and membrane
Enter the total room area and the floor area you plan to heat.

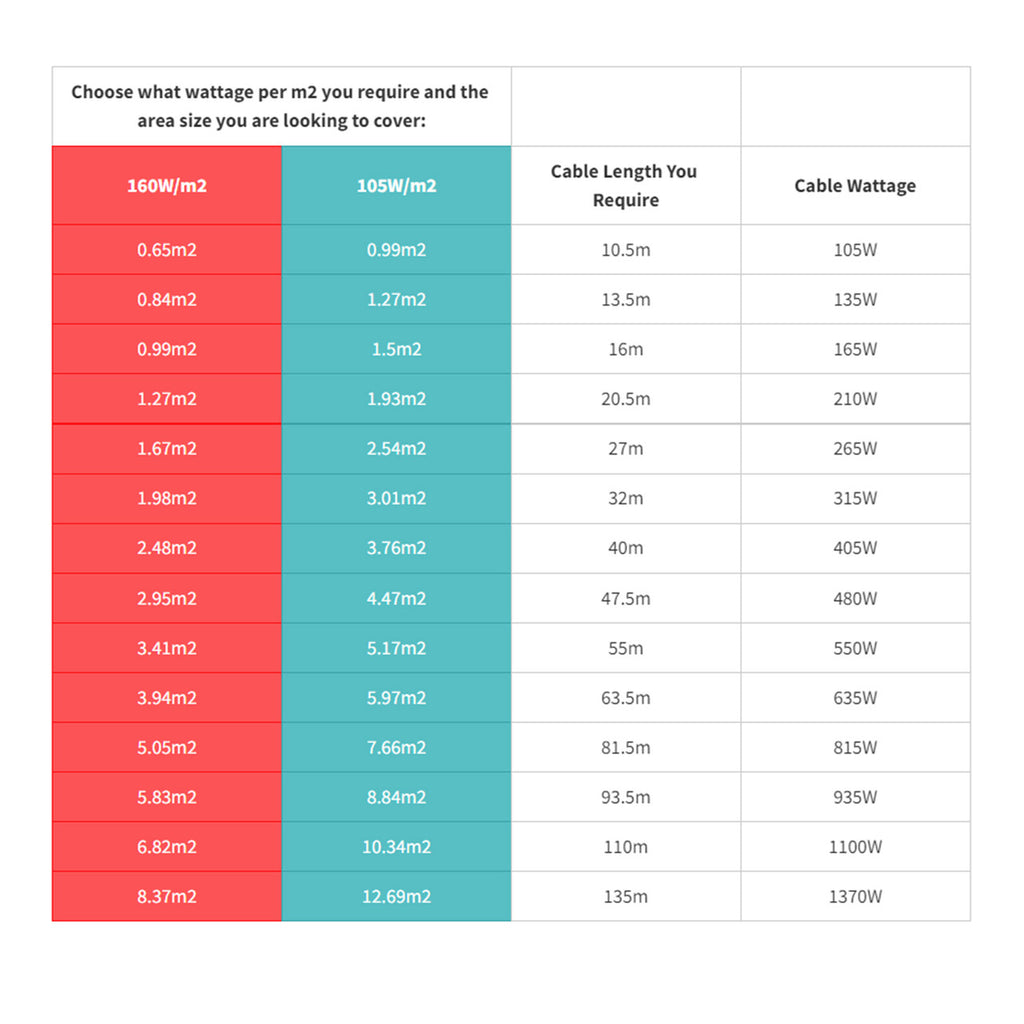

Cable sizing is based on approximately 160W/m². Your installer should confirm the final cable spacing and that the complete floor build-up is suitable.
Add Decoupling Membrane
Decoupling Membrane for Undertile Heating Cable
Select the sizes and quantities you need
selected
Up to 3600W of Flexheat Undertile Heating Cable can be controlled by a single underfloor heating thermostat. For larger areas, please use multiple thermostats or a contactor to switch the load.
For warm floor application, use a thermostat with floor sensor only. For total heating, a thermostat should be used with both air and floor sensor, the exception to this would be wet areas, such as a bathroom where the thermostat must be mounted outside of the wet area with the floor sensor in the wet area floor.

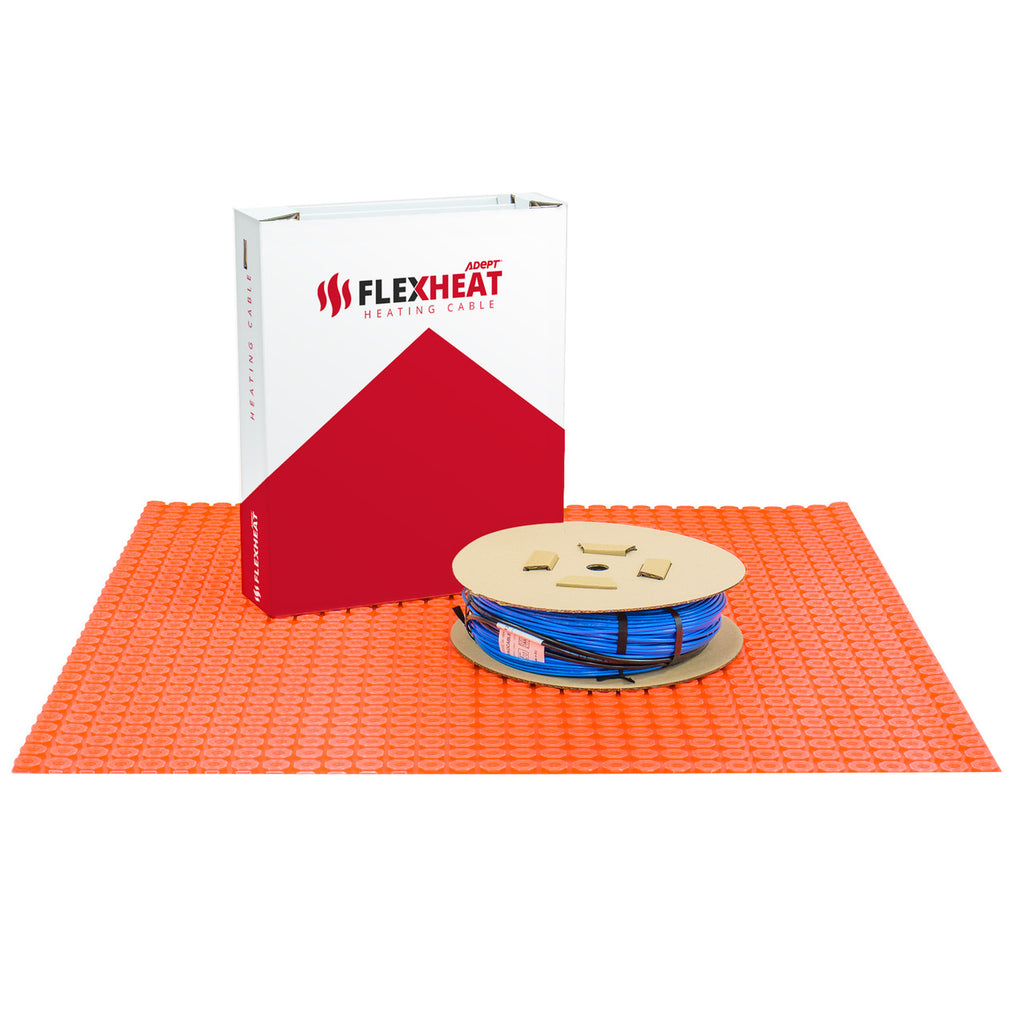

FLEX•GRID Decoupling Membrane
A great underfloor heating solution for under tile requirements is to use a decoupling membrane suitable for use with electric under tile heating cable. Decoupling Membrane for Undertile Heating Cable:
Available Roll Sizes:
1m x 1m
5m x 1m
10m x 1m
20m x 1m

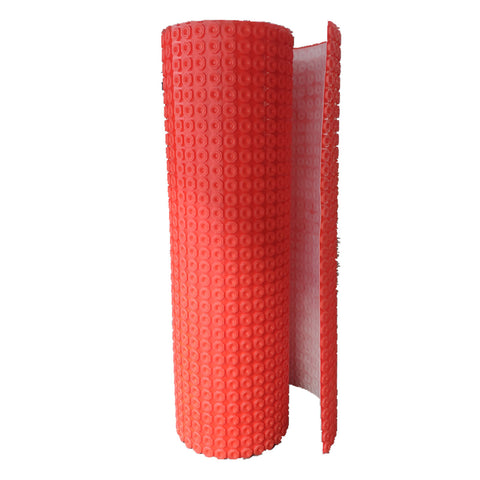

The Flexheat Decoupling Membrane is a high-quality underfloor heating solution designed for use with electric under tile heating cable. Made of durable Polyethylene (PE) film on the top and Polypropylene (PP) non-woven fabric on the bottom, this decoupling membrane is both robust and long-lasting.
Weighing 1000g/sqm and with a thickness of 5.6mm, the Flexheat Decoupling Membrane provides a stable and secure base for your heating cable. It is suitable for use with heating cables with a diameter of 3.6 - 4.2mm, ensuring a snug fit and optimal heat distribution.

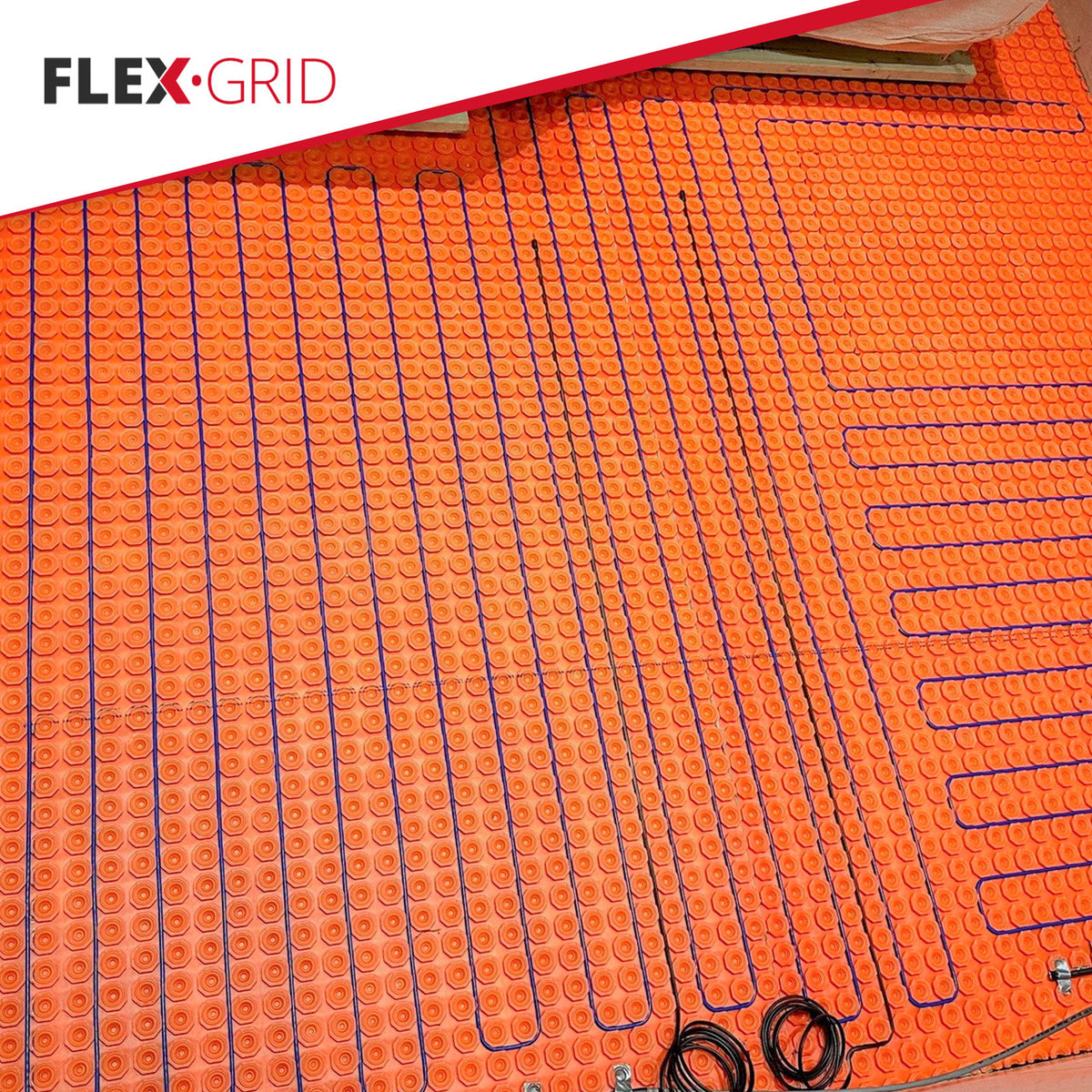

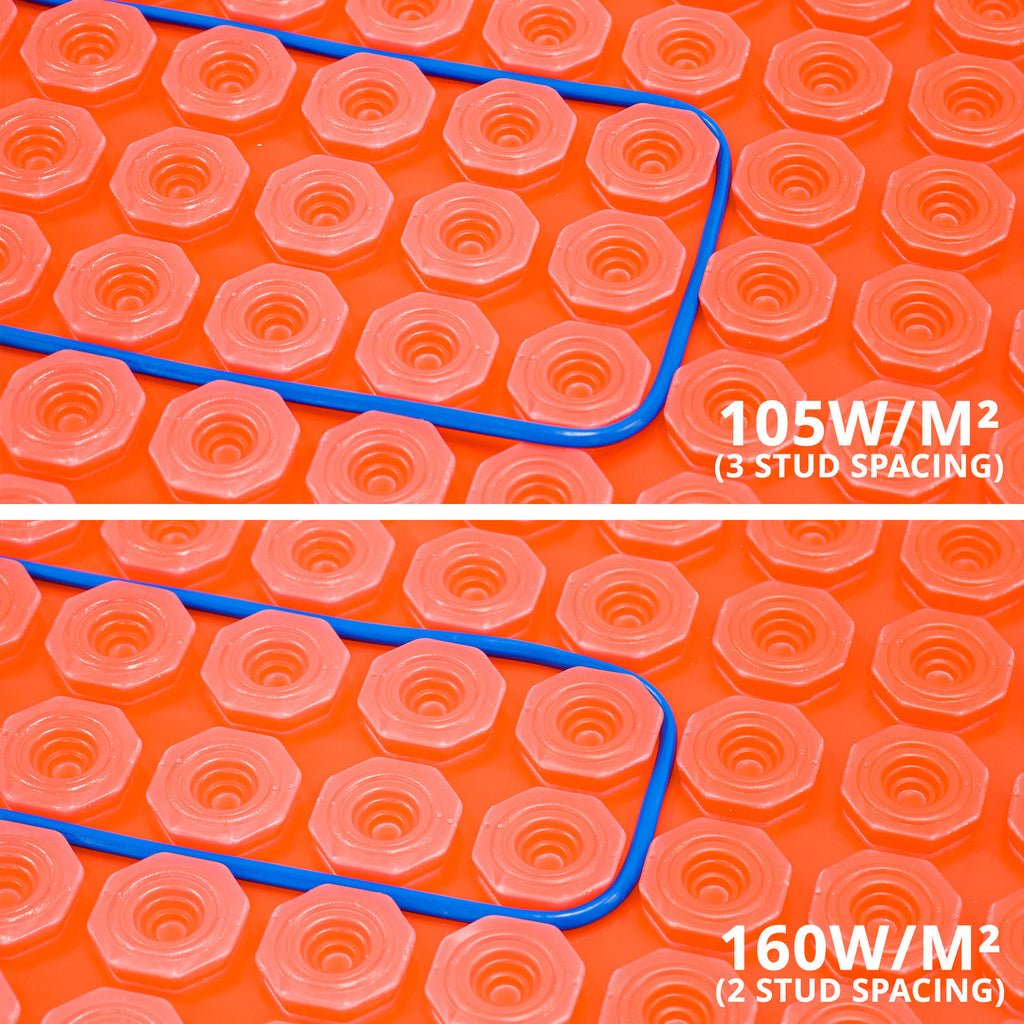

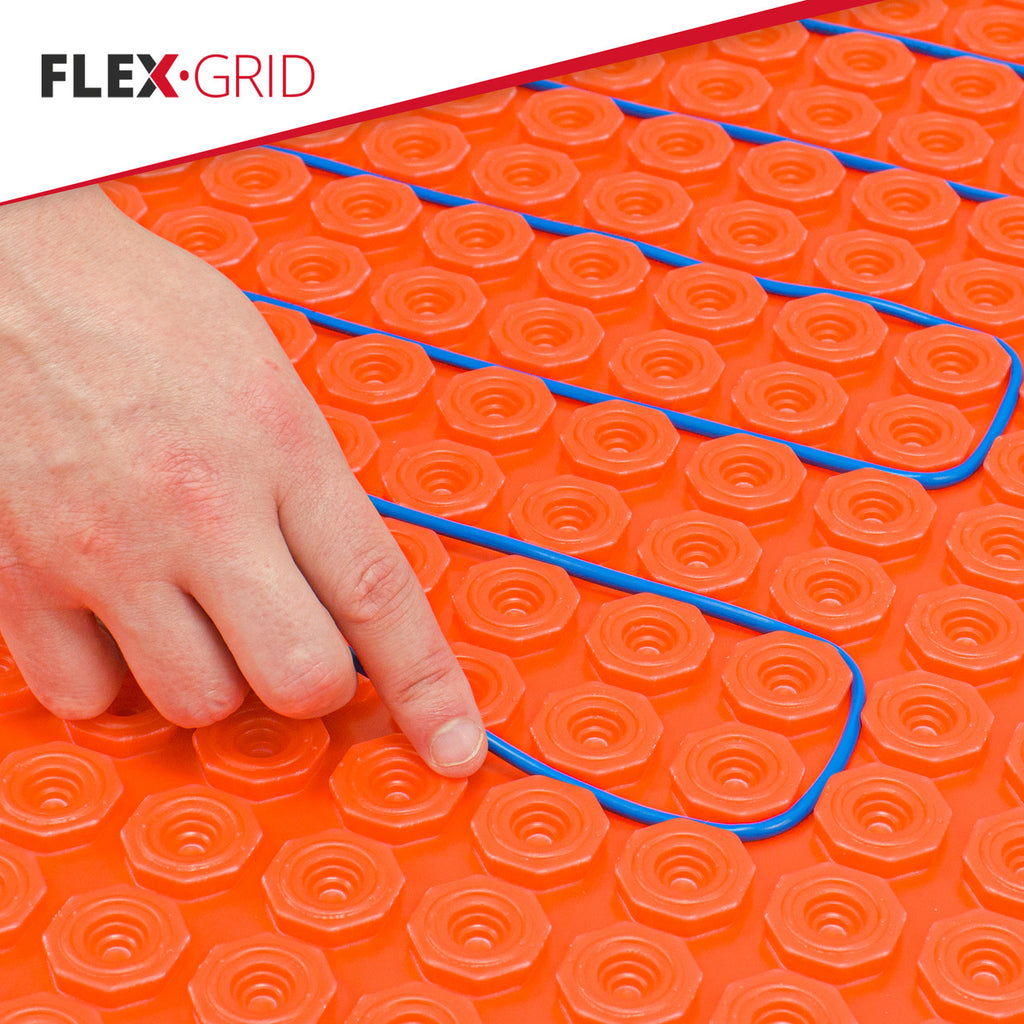

The membrane features studs spaced 4mm apart, providing the perfect spacing for your heating cable. This design allows for even heat distribution and efficient energy use, ensuring your floors are consistently warm and comfortable.
The Flexheat Decoupling Membrane is also waterproof, making it an excellent choice for areas with high moisture levels, such as bathrooms and kitchens. It protects your heating cable from moisture damage and ensures long-lasting performance.
Available in a range of roll sizes, including 1m x 1m, 5m x 1m, 10m x 1m, and 20m x 1m, the Flexheat Decoupling Membrane can be tailored to fit any project size. Upgrade your under tile heating system with this reliable and efficient heating solution.
