ENGO ETR-868 Wireless Relay Transmitter & Receiver Kit
£66.99
Sale price
£66.99
Regular price
Skip to product information
Out of stock
ENGO
ENGO ETR-868 Wireless Relay Transmitter & Receiver Kit
£66.99
Sale price
£66.99
Regular price
Product code: ETR-868
EAN:
Price includes VAT
Next-day delivery available on stocked items
The ENGO ETR-868 EngoLink wireless relay kit connects heating controls to a boiler, circulation pump or other compatible device where running a control cable is impractical. Supplied with a factory-paired transmitter and receiver, it provides wireless on/off switching over 868 MHz.
Key Features
- Wireless heating control: Ideal for retrofit installations and linking a wiring centre to a heat source or pump.

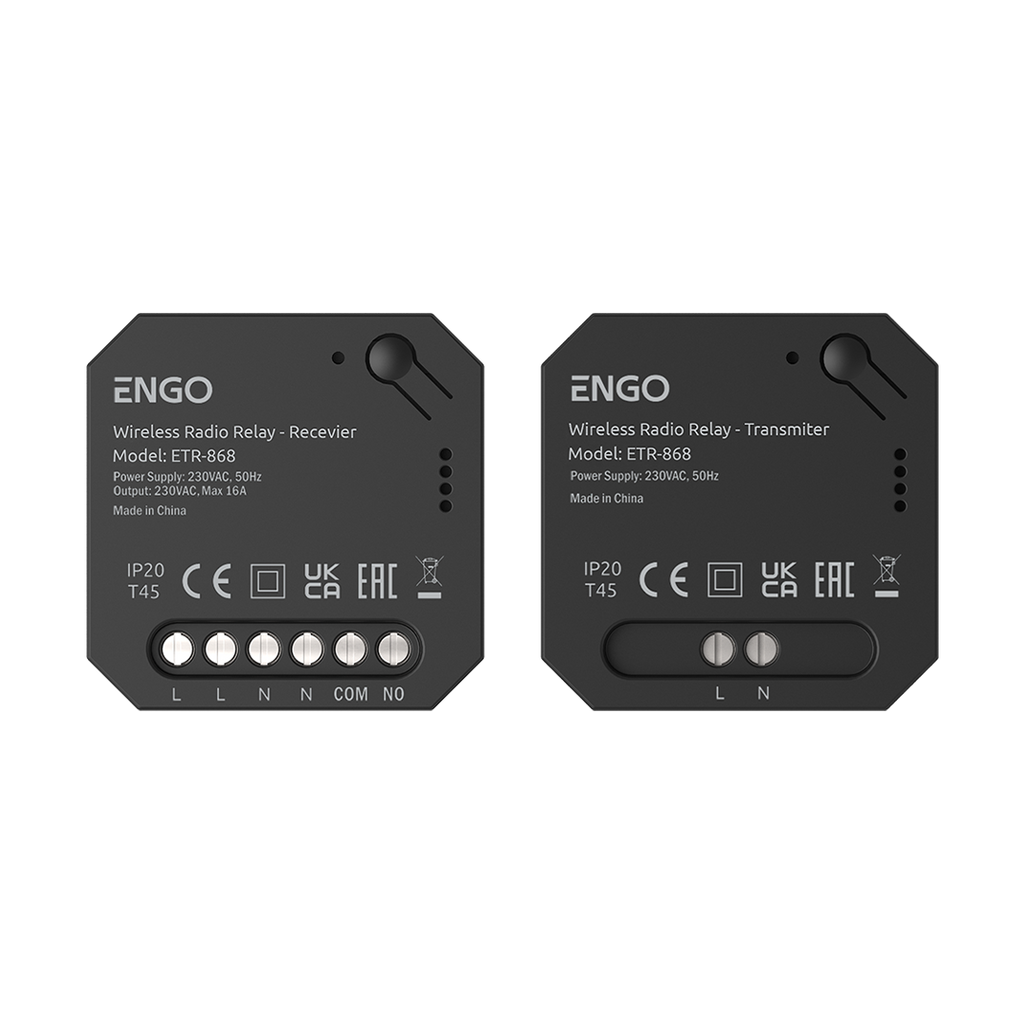

- Ready-paired kit: Transmitter and receiver are paired at the factory.

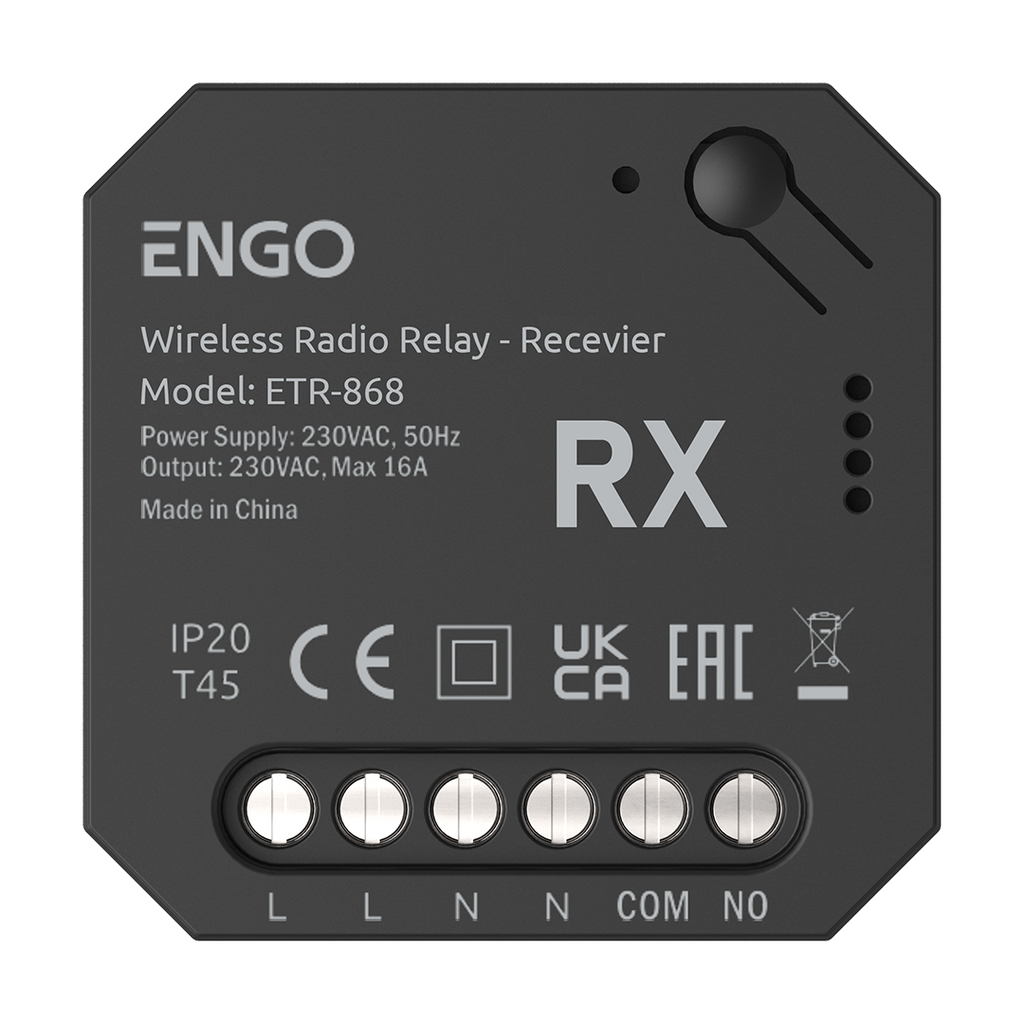

- Volt-free output: Receiver uses COM/NO relay contacts for compatible control circuits.
- Compact installation: Each module measures 46 × 46 × 24 mm and can fit in an installation box or mount on a DIN rail using the included brackets.
- Status indicators: LEDs show device operation.
- Power-loss shutdown signal: The transmitter's built-in supercapacitor allows it to send an OFF command when its power supply is disconnected.
- Expandable control: Additional compatible receivers can be paired to one transmitter.
Technical Specifications
| Model / SKU | ETR-868 |
|---|---|
| Power supply | 230 V AC, 50 Hz |
| Maximum load | 16(5) A |
| Wireless communication | 868 MHz |
| Receiver output | Volt-free COM/NO contacts |
| Transmitter dimensions | 46 × 46 × 24 mm |
| Receiver dimensions | 46 × 46 × 24 mm |
What's Included
One transmitter, one receiver and DIN rail mounting brackets. DIN rail is not supplied.
Installation: For indoor use in dry conditions. Both modules require a 230 V AC supply. Installation must be carried out by a suitably qualified person following the manufacturer's instructions.
