Electric Undertile Heating Cable with HeatBase Decoupling Membrane
Product code: HBDM10/90
EAN:
Complete your system
Recommended add-ons
Choose any optional extras you would like to add with this product.
selected Your selected add-on will be added with this product.
HeatBase combines the Elektra DM10 loose heating cable with a low-profile decoupling membrane, giving you a flexible electric underfloor heating system for tiled floors.

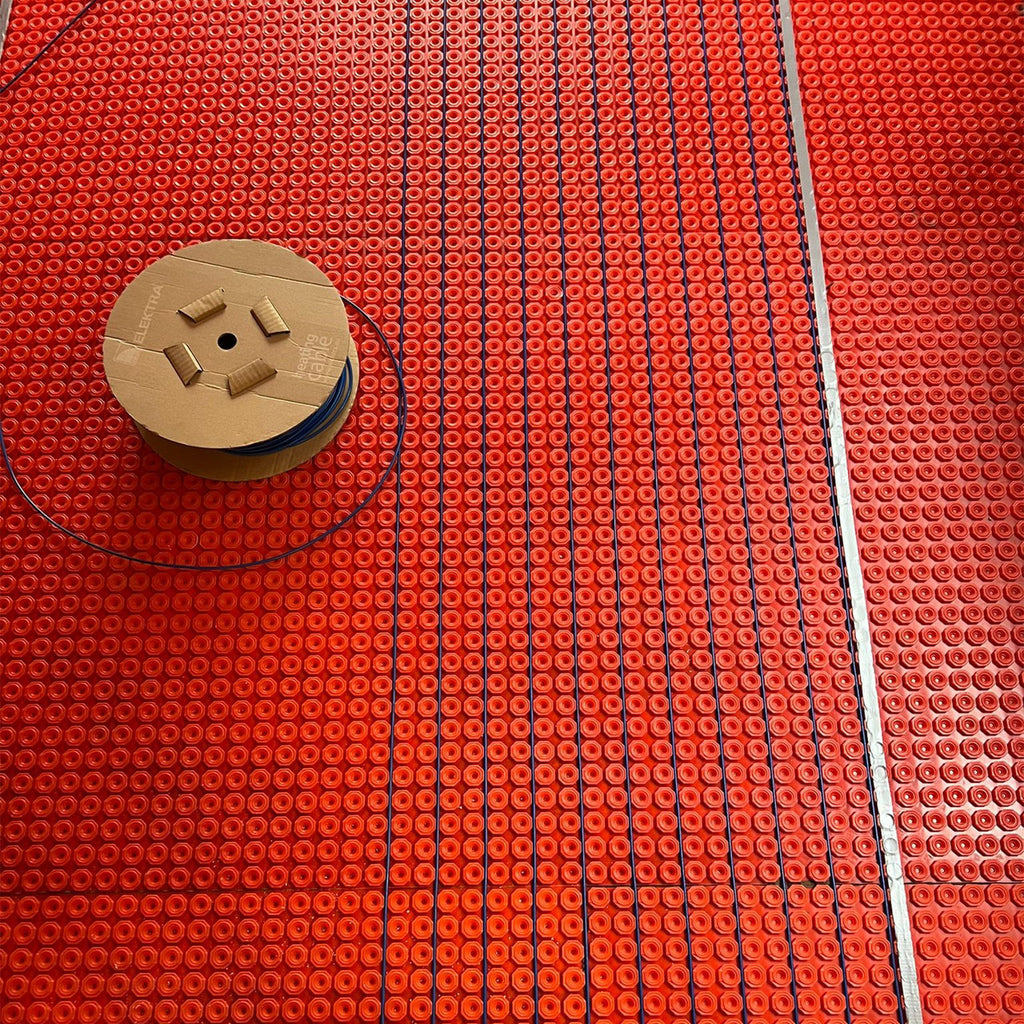

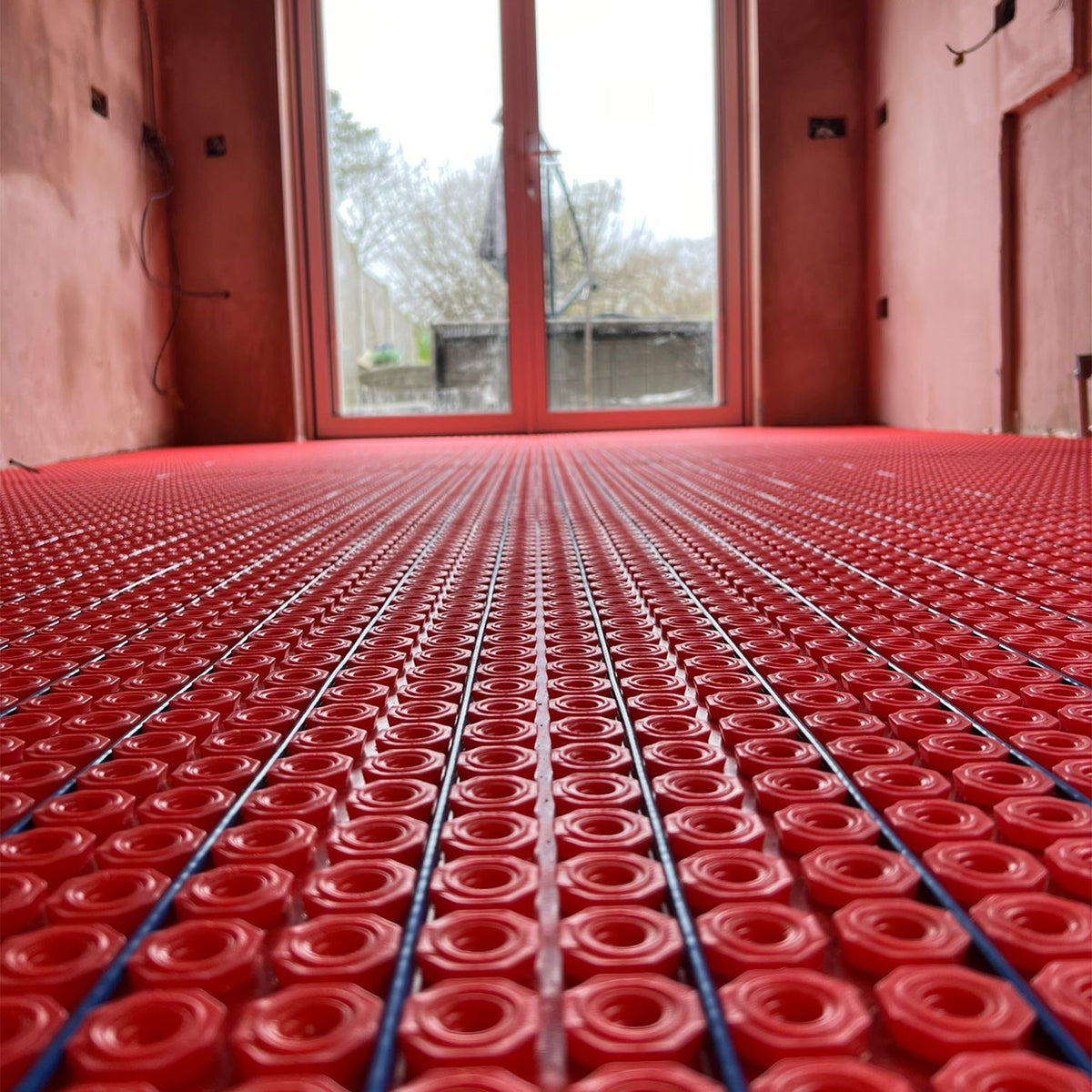

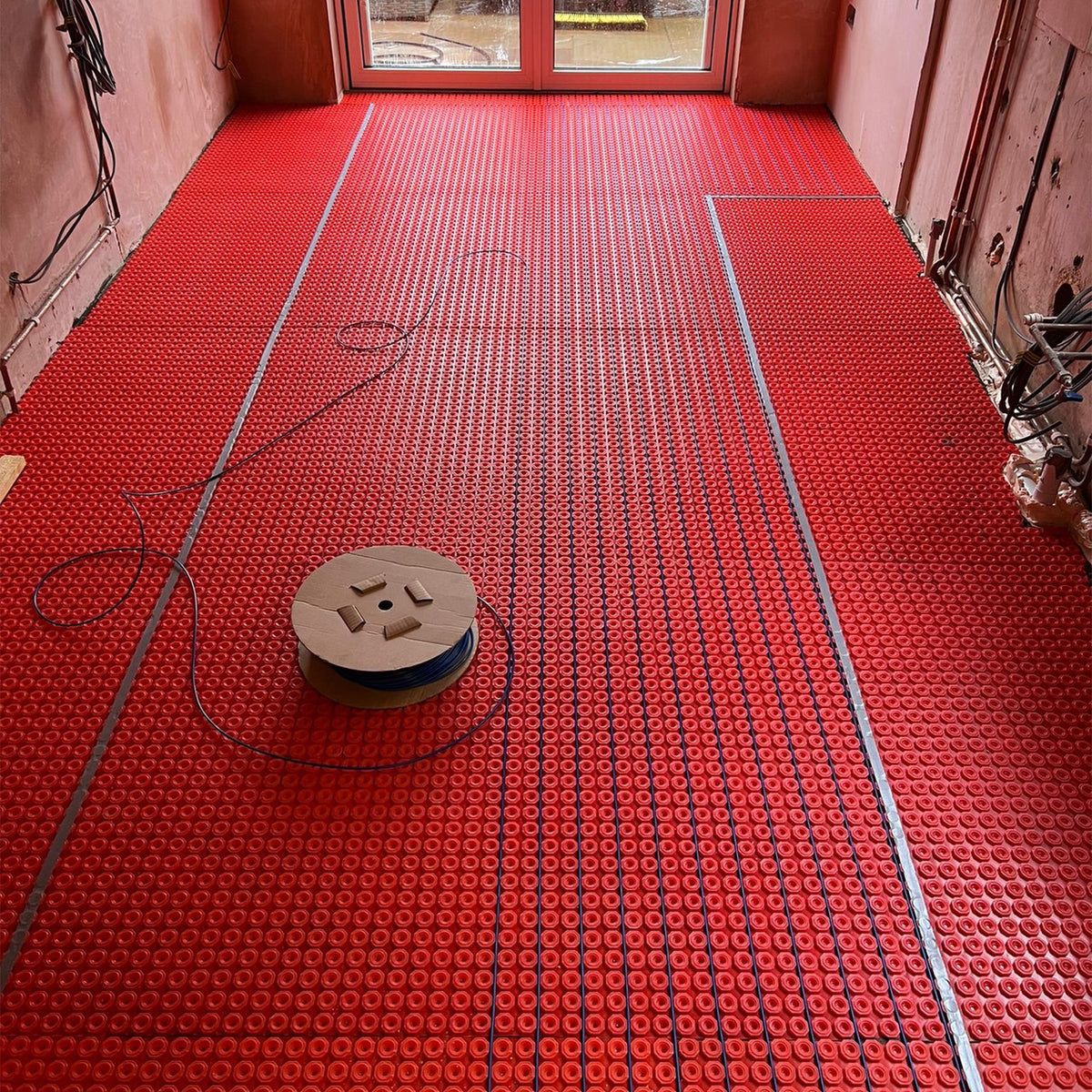

The cable follows the formed channels in the membrane, so it can be routed neatly around bathroom fittings, kitchen units and other fixed obstacles. Choose the kit by the floor area you want to heat and the output required.

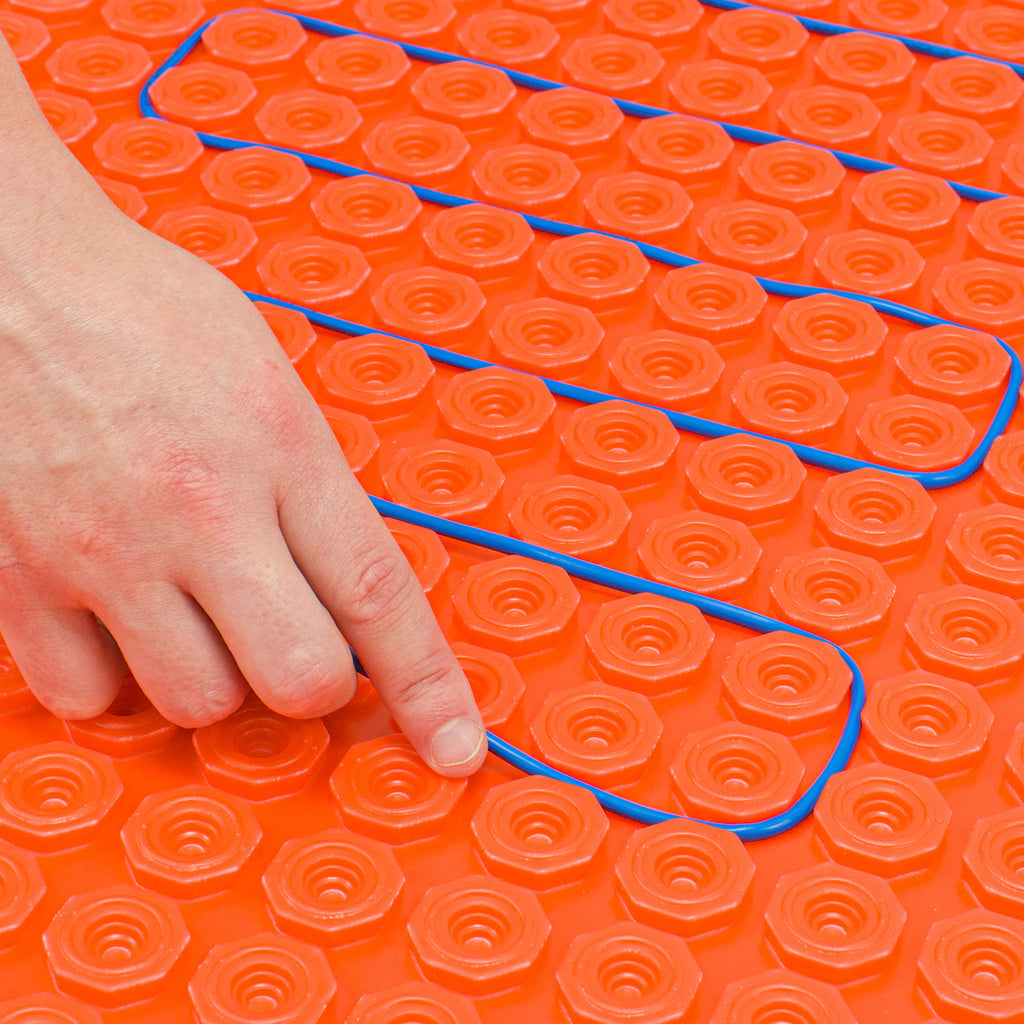

Choose the heat output by cable spacing
Approximately 160W/m²: install the cable at 2 spaces on the HeatBase membrane.
Approximately 100W/m²: install the cable at 3 spaces on the HeatBase membrane.
Do not cut or shorten the heating cable. Select the kit and spacing that suit the heated area, and follow the supplied installation instructions throughout.

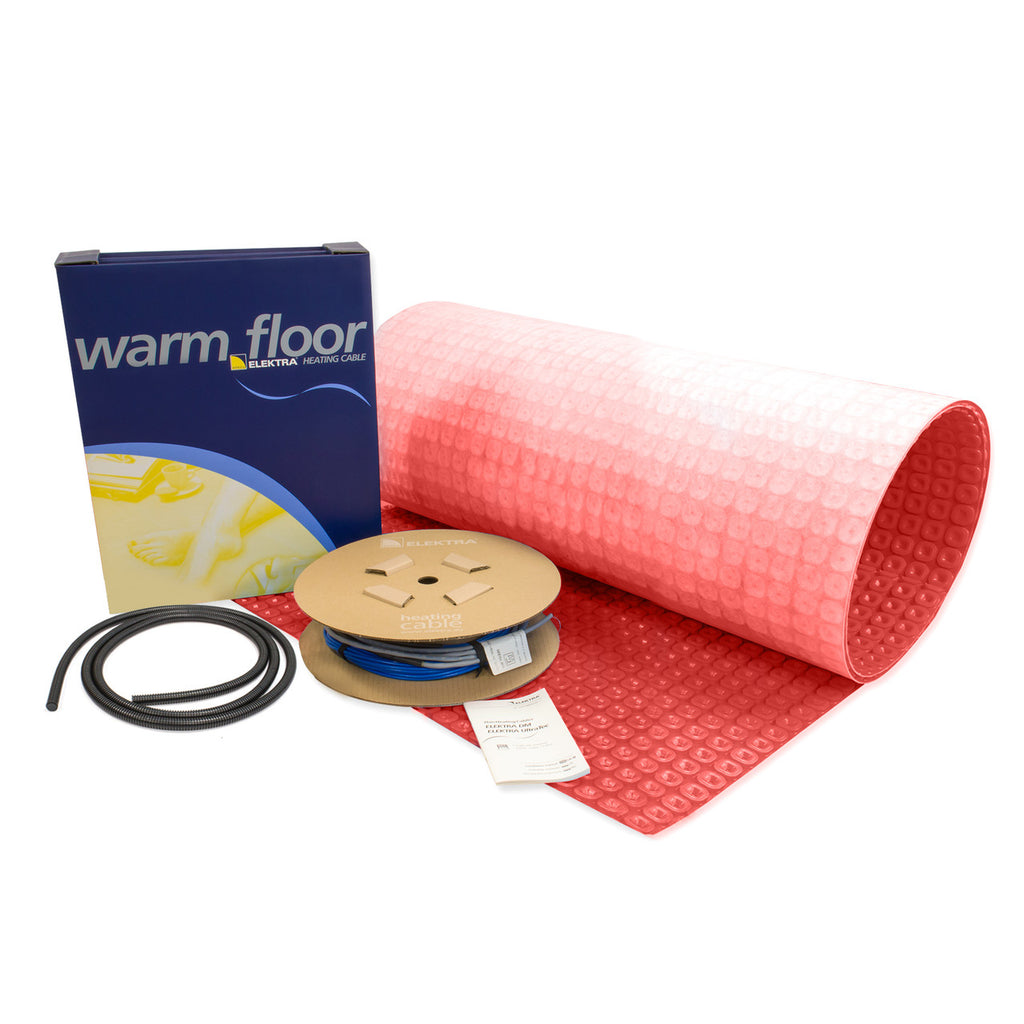

What Is Included?
- One fixed-length Elektra DM10 heating cable
- The quantity of HeatBase decoupling membrane shown in the table below

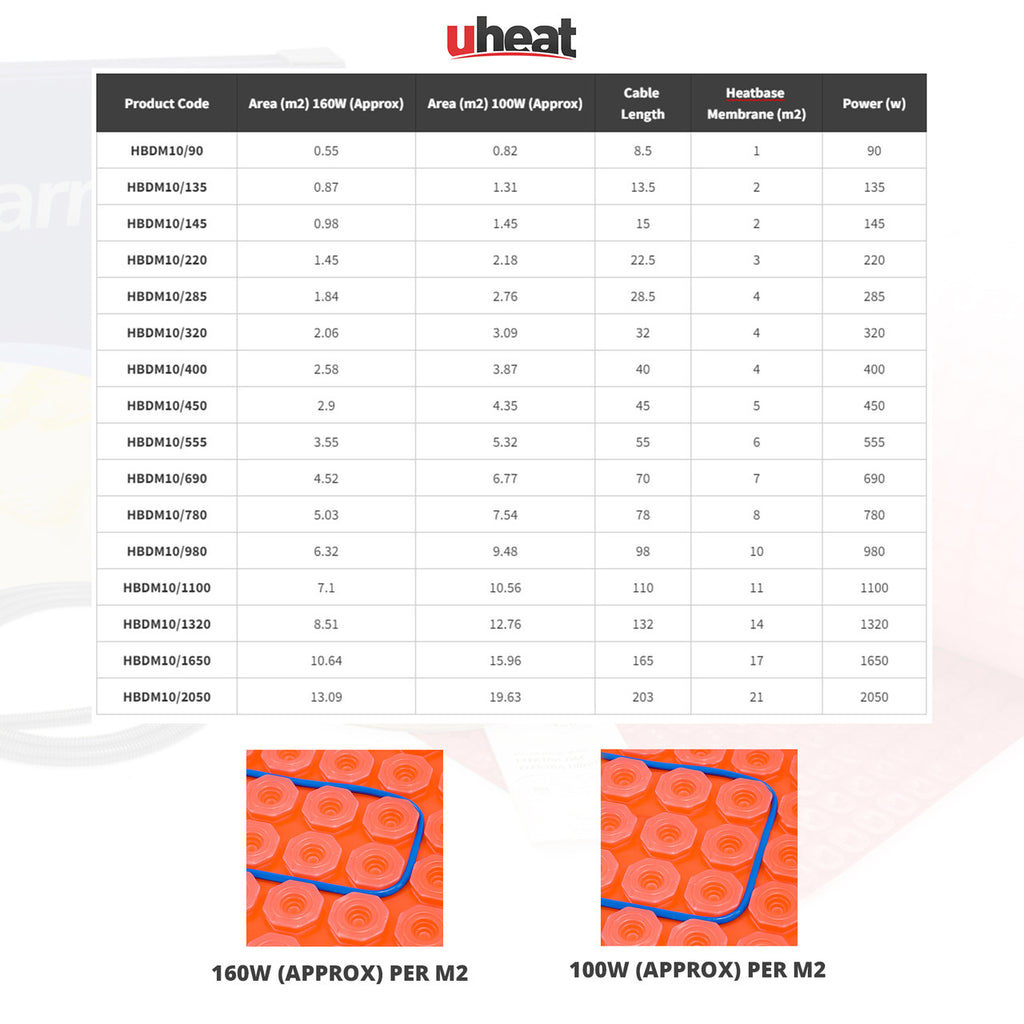

Kit Contents and Coverage
Each cable offers two approximate coverage areas. The smaller figure is for a 160W/m² layout at 2 spaces; the larger figure is for a 100W/m² layout at 3 spaces. The HeatBase column shows the total membrane area supplied with that kit.
| Kit code | Coverage 160W/m² |
Coverage 100W/m² |
Cable length | HeatBase supplied | Cable power |
|---|---|---|---|---|---|
| HBDM10/90 | 0.55m² | 0.82m² | 8.5m | 1m² | 90W |
| HBDM10/135 | 0.87m² | 1.31m² | 13.5m | 2m² | 135W |
| HBDM10/145 | 0.98m² | 1.45m² | 15m | 2m² | 145W |
| HBDM10/220 | 1.45m² | 2.18m² | 22.5m | 3m² | 220W |
| HBDM10/285 | 1.84m² | 2.76m² | 28.5m | 4m² | 285W |
| HBDM10/320 | 2.06m² | 3.09m² | 32m | 4m² | 320W |
| HBDM10/400 | 2.58m² | 3.87m² | 40m | 4m² | 400W |
| HBDM10/450 | 2.90m² | 4.35m² | 45m | 5m² | 450W |
| HBDM10/555 | 3.55m² | 5.32m² | 55m | 6m² | 555W |
| HBDM10/690 | 4.52m² | 6.77m² | 70m | 7m² | 690W |
| HBDM10/780 | 5.03m² | 7.54m² | 78m | 8m² | 780W |
| HBDM10/980 | 6.32m² | 9.48m² | 98m | 10m² | 980W |
| HBDM10/1100 | 7.10m² | 10.56m² | 110m | 11m² | 1100W |
| HBDM10/1320 | 8.51m² | 12.76m² | 132m | 14m² | 1320W |
| HBDM10/1650 | 10.64m² | 15.96m² | 165m | 17m² | 1650W |
| HBDM10/2050 | 13.09m² | 19.63m² | 203m | 21m² | 2050W |
Please note: coverage figures are approximate. The membrane area supplied is intentionally greater than the heated cable coverage so the HeatBase can cover the planned floor area while the cable is kept clear of fixed units and other unheated zones.
Why Choose HeatBase?
- Decoupling and crack-isolation layer for tiled floors
- Guided channels make cable positioning clear and consistent
- Flexible layout for rooms with fixed fittings or irregular shapes
- Waterproofing and vapour management when correctly installed and sealed
- Low-profile 5.5mm membrane depth

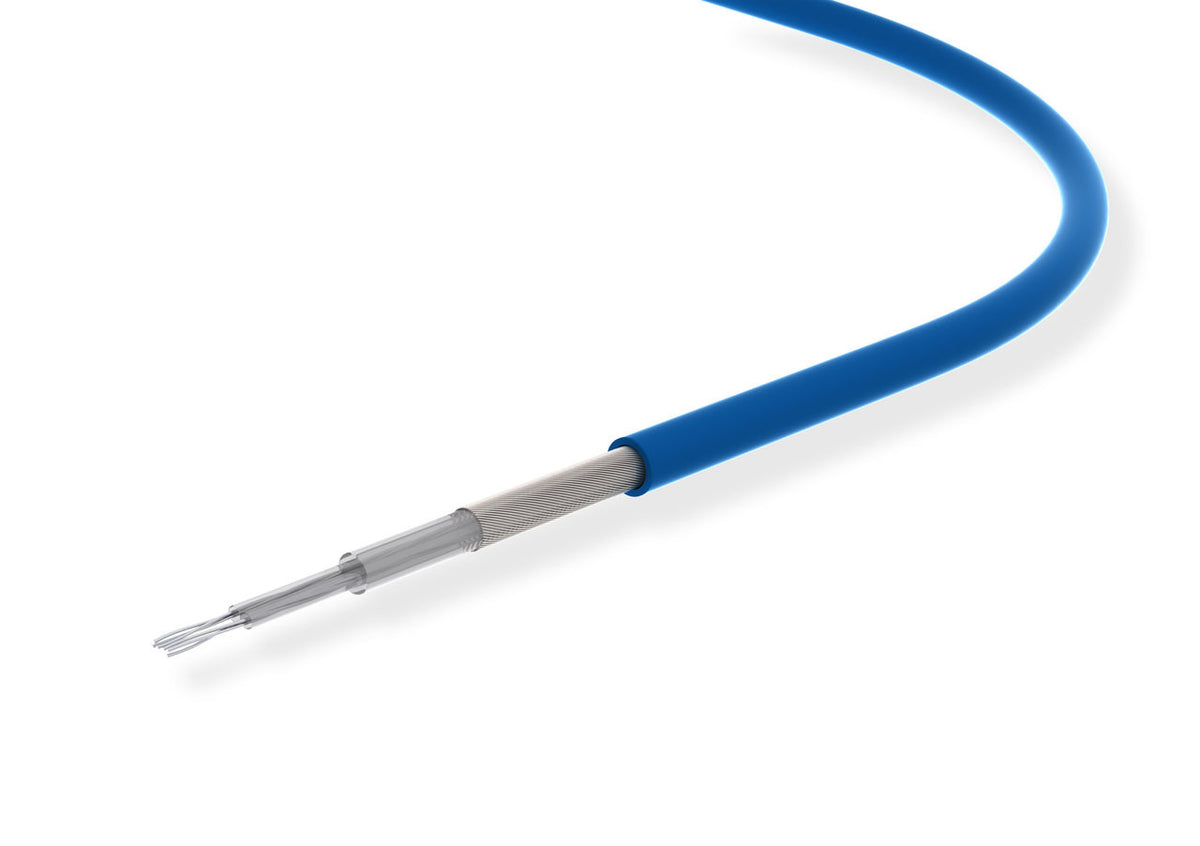

- Elektra DM10 cable with VDE approval and a Lifetime Guarantee
Installation Guidance

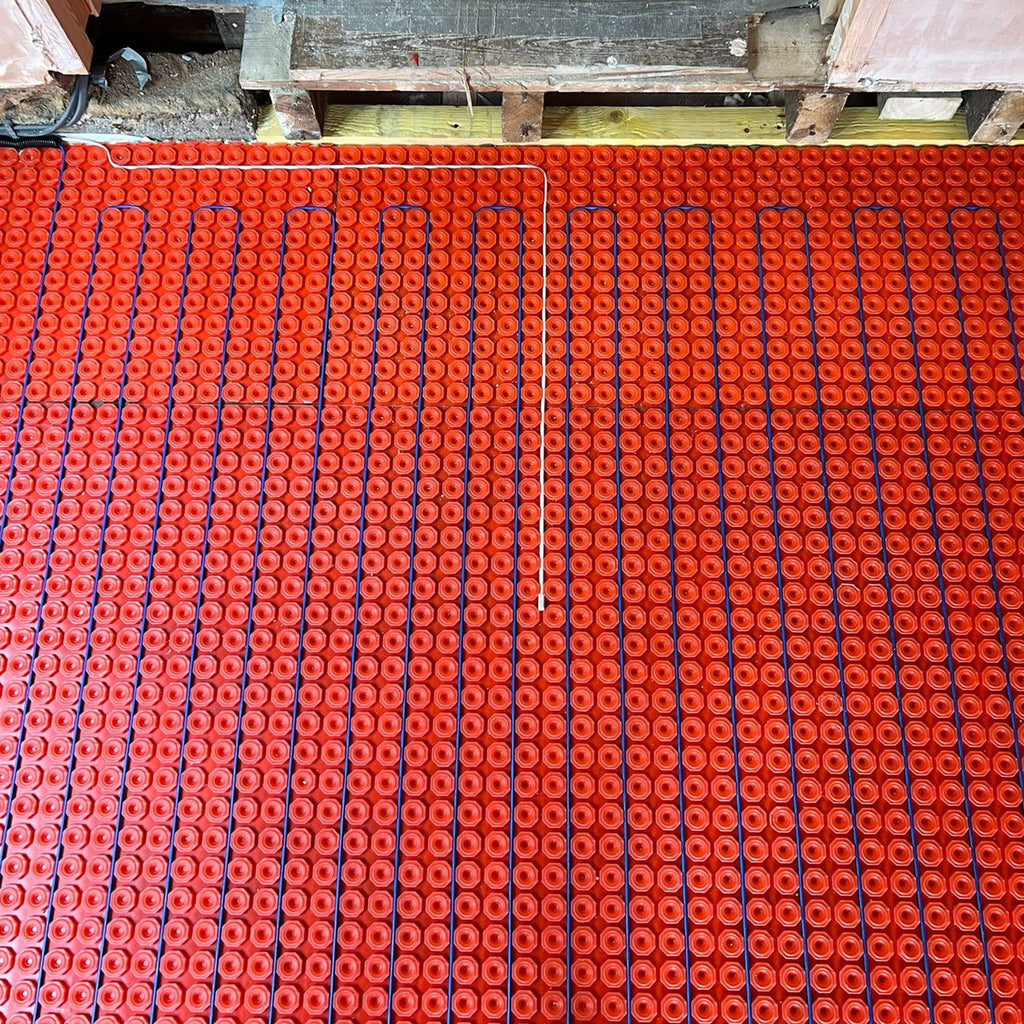

Bond HeatBase to a clean, stable and suitable subfloor with flexible tile adhesive. Install the DM10 cable and floor sensor in accordance with the supplied instructions, then fix the tiles using a compatible flexible tile adhesive. Electrical connection and testing must be completed by a suitably qualified electrician.
