Electric In Screed Underfloor Heating Cable VCD17 - 17W/m
Elektra
Electric In Screed Underfloor Heating Cable VCD17 - 17W/m
Product code: VCD17KIT/545
EAN:

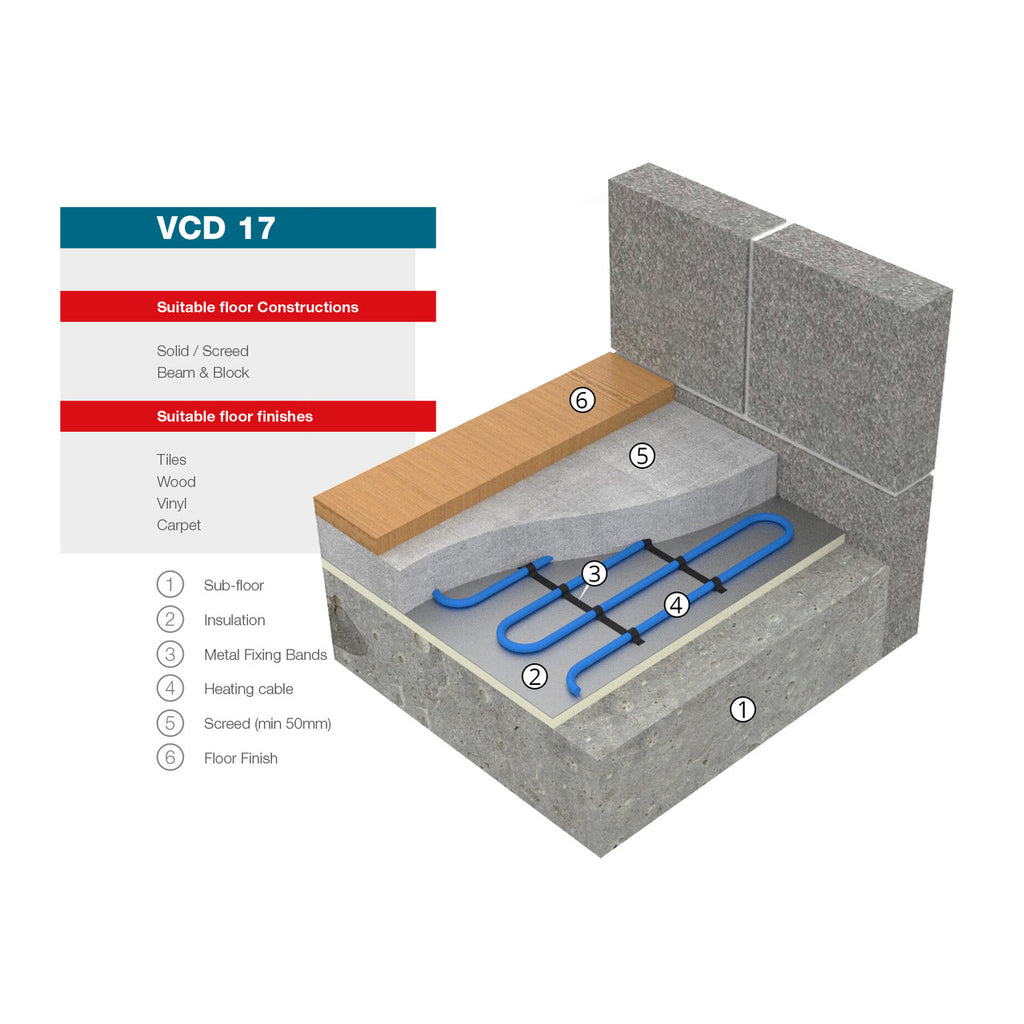

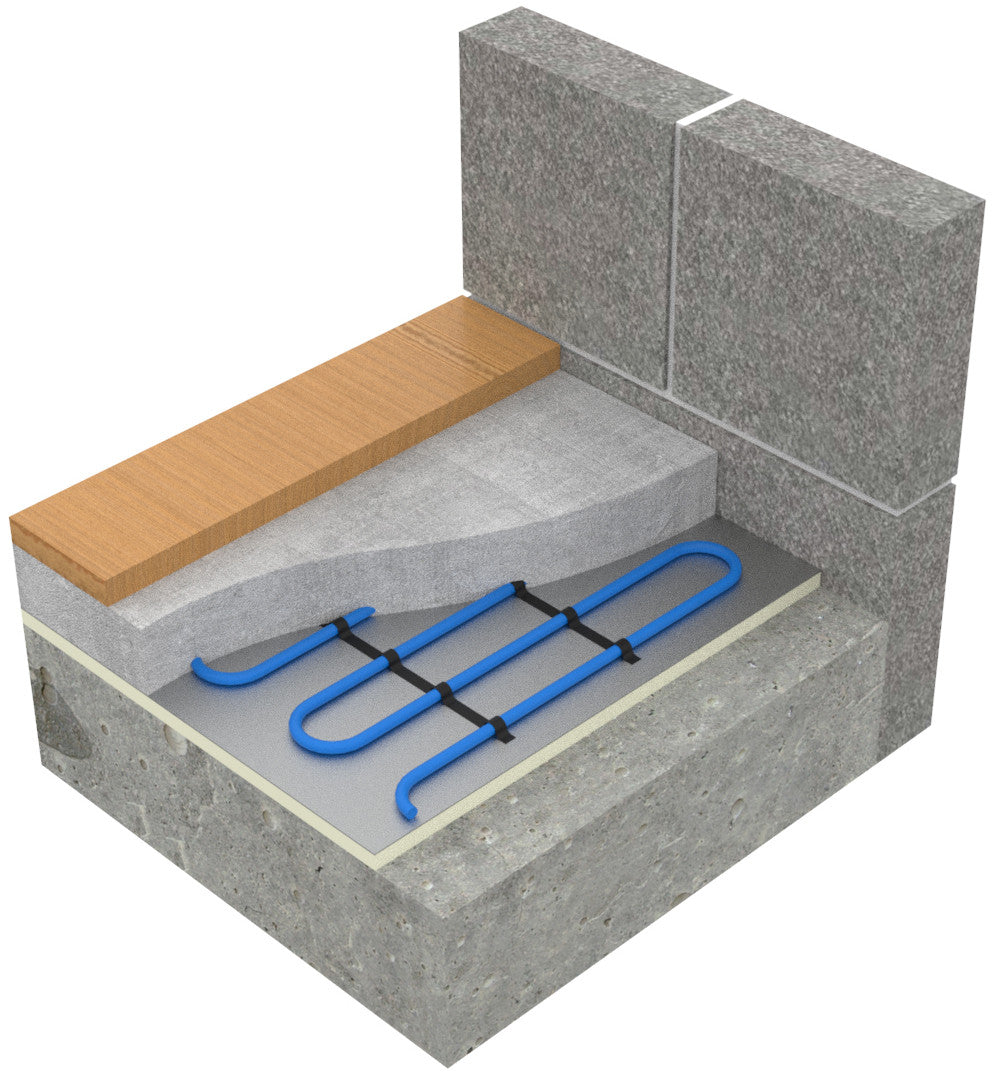

The Elektra VCD Cable is installed in rooms which are under construction and the floor is not finished. It generally serves as primary heating and is the only source of heat in the room. When it serves as a supplementary heating source ("The Warm Floor Effect"), a primary heating system is required. The Cable is installed on top of a insulation using either a staple or a fixing strap to secure the cable until the screed is laid.
The fixing strips for the cable can be found here
Manufactured in Europe complying with ISO 9001 using the highest quality raw materials, in accordance with IEC EN 60335-2-96. Elektra electric in screed underfloor heating cables have gained many approvals around the world.
CE Certified
Lifetime guarantee is available for Elektra VCD17 Underfloor heating cables and UK based technical support for the installation / operating of the underfloor heating is provided by our experienced & qualified technicians.

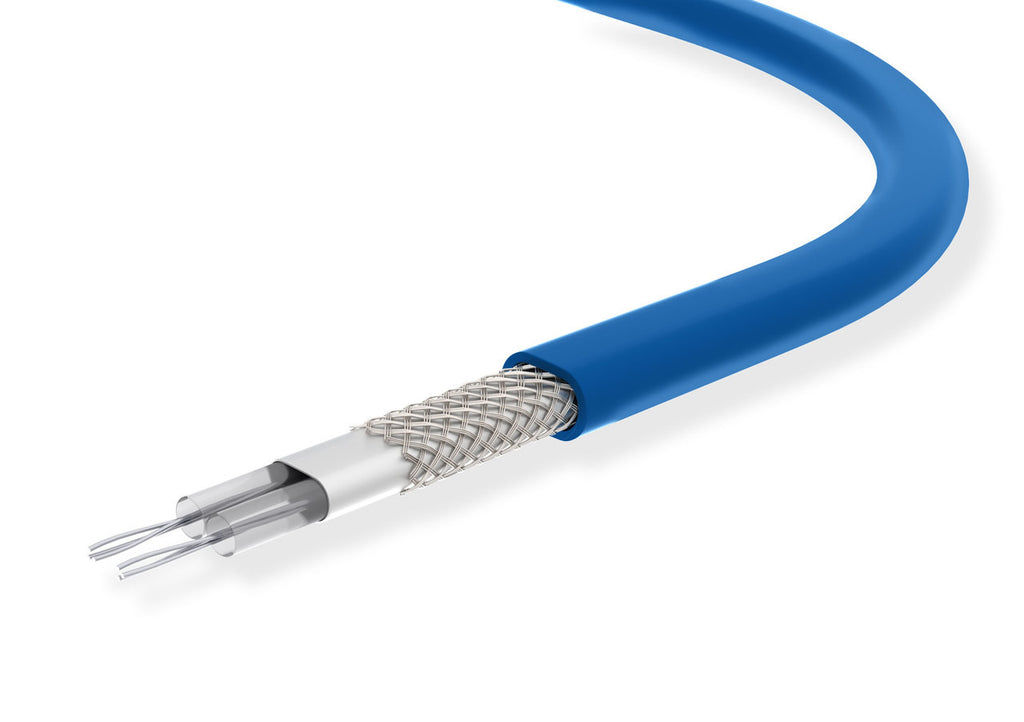

| Specifications | |
| Cable Thickness | 5mm x 7mm (Max) |
| Min Installation Temp | -5oC |
| Max Working Temp | +95oC |
| Cold Tail | 1No. 2.5 metres long - 3 cores |
| Insulation | XLPE |
| Outer Sheath | Heat Resistant PVC |
| Output Power Tollerance | +5%, -10% |
| Min Bending Radius | 3.5D |
| IP Rating | IPX7 |
Notes:
- Insulation should be rigid PIR.
- Some insulation / screed combinations require a vapour barrier to be installed directly on the insulation before you install the cable and lay the screed.
- To comply with building regulations, you should use a minimum 65mm sand / cement screed or 50mm pumped screed.
Choice of Thermostats:
Manual Thermostat
The Adept Manual Dial Thermostat is an easy to use simple On/Off switch and an easy to adjust dial to choose your optimum temperature.
Features
- Easy to Use Dial Thermostat for Easy Temperature Control
- No complicated Setup Required
- On/Off Switch
Max Load: 16 amps
Supply Voltage: 230v
Programmable Thermostat
Provides precise control and is easily configured to control the temperature and timings for most heating systems, including Electric or Wet Underfloor Heating Systems.
Features
- Digital 7 Day Programmable or Non Programmable Thermostat
- Up to 4 Heating Periods Per Day
- Built In Sensor and Floor Sensor Included
Max Load: 16 amps
Supply Voltage: 230v
WiFi Thermostat
The Wifi Thermostat is a smartphone controllable stat perfect for use with underfloor heating systems or for use with electric heating devices or valve actuators. Wifi Thermostats allow you to use the included free app from your smartphone (available for both IOS and Android devices) to control the temperature of your heating device. The WiFi Thermostat gives you accurate and precise control anywhere in the home and is a premium choice for any household.
Features
- Smartphone Controllable via App
- Built In Sensor and Floor Sensor Included
- Control via Amazon Echo and Google Home Devices
IP Rating: IP21
Max Load 16 amps
The WiFi Thermostats only work on 2.4GHz WiFi
