Adept AD-RAIL In Screed Grip Rail Water Underfloor Heating Kits
Adept
Adept AD-RAIL In Screed Grip Rail Water Underfloor Heating Kits
Product code: UFHK40G
EAN:
The Adept AD-RAIL is a complete in-screed water underfloor heating kit for solid/screed and beam-and-block floors.
WRAS-approved 16mm PERT-AL-PERT pipe is held in grip rails at 200mm centres, creating a consistent layout designed to deliver approximately 100W/m². Kits cover clear heated areas from 20m² to 120m² and are configured as a single heating zone.
Why choose the AD-RAIL system?
- Grip rails keep pipe spacing neat and consistent across larger floor areas.
- Suitable for new-build and renovation projects where the pipe will be covered by screed.

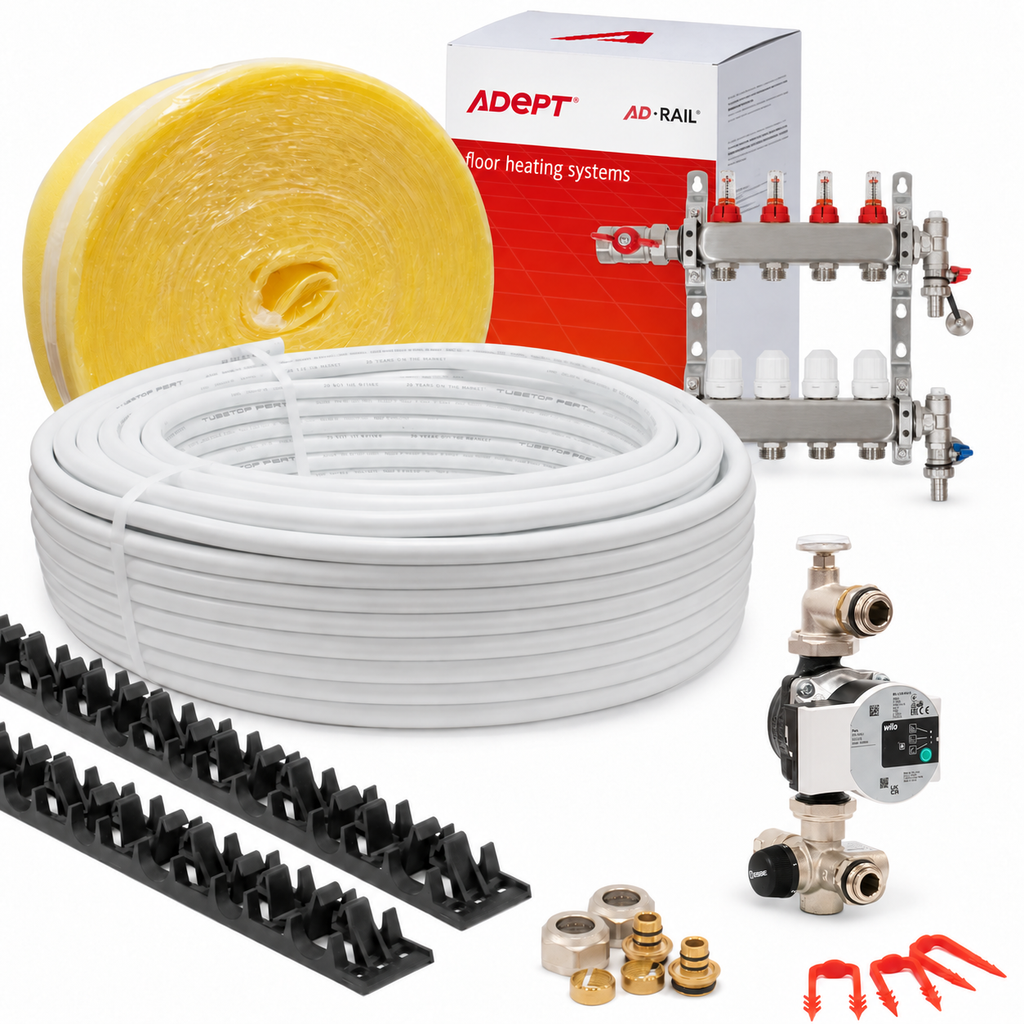

- Includes the pipe, fixing components, edge insulation and the appropriate control arrangement for the selected kit size.
- Uses an A-rated pump and WRAS-approved multilayer pipe.
- Can be incorporated into a wider multi-zone system with suitable additional Adept or Heatmiser controls.
What is included with each AD-RAIL kit?

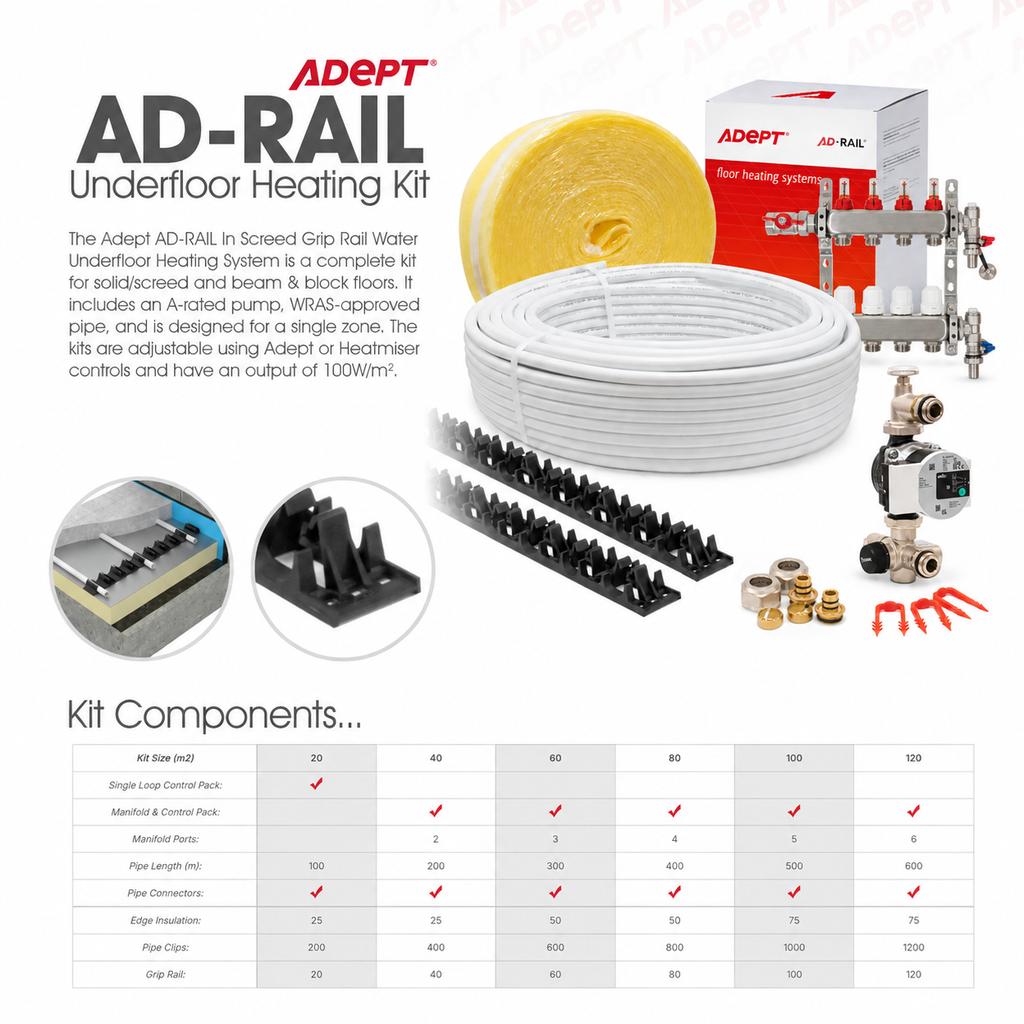

The quantities below are taken from the AD-RAIL kit schedule. Choose the kit using the clear floor area that will actually be heated, excluding fixed kitchen units, sanitaryware and other permanent furniture.
| Kit size | Control arrangement | Manifold ports | Pipe supplied | Edge insulation | Pipe clips | Grip rail |
|---|---|---|---|---|---|---|
| 20m² | Single-loop control pack | — | 100m | 25m | 200 | 20m |
| 40m² | Manifold and control pack | 2 | 200m | 25m | 400 | 40m |
| 60m² | Manifold and control pack | 3 | 300m | 50m | 600 | 60m |
| 80m² | Manifold and control pack | 4 | 400m | 50m | 800 | 80m |
| 100m² | Manifold and control pack | 5 | 500m | 75m | 1,000 | 100m |
| 120m² | Manifold and control pack | 6 | 600m | 75m | 1,200 | 120m |
Also included with every kit: pipe connectors and the components shown for the selected control arrangement.
How is AD-RAIL installed?

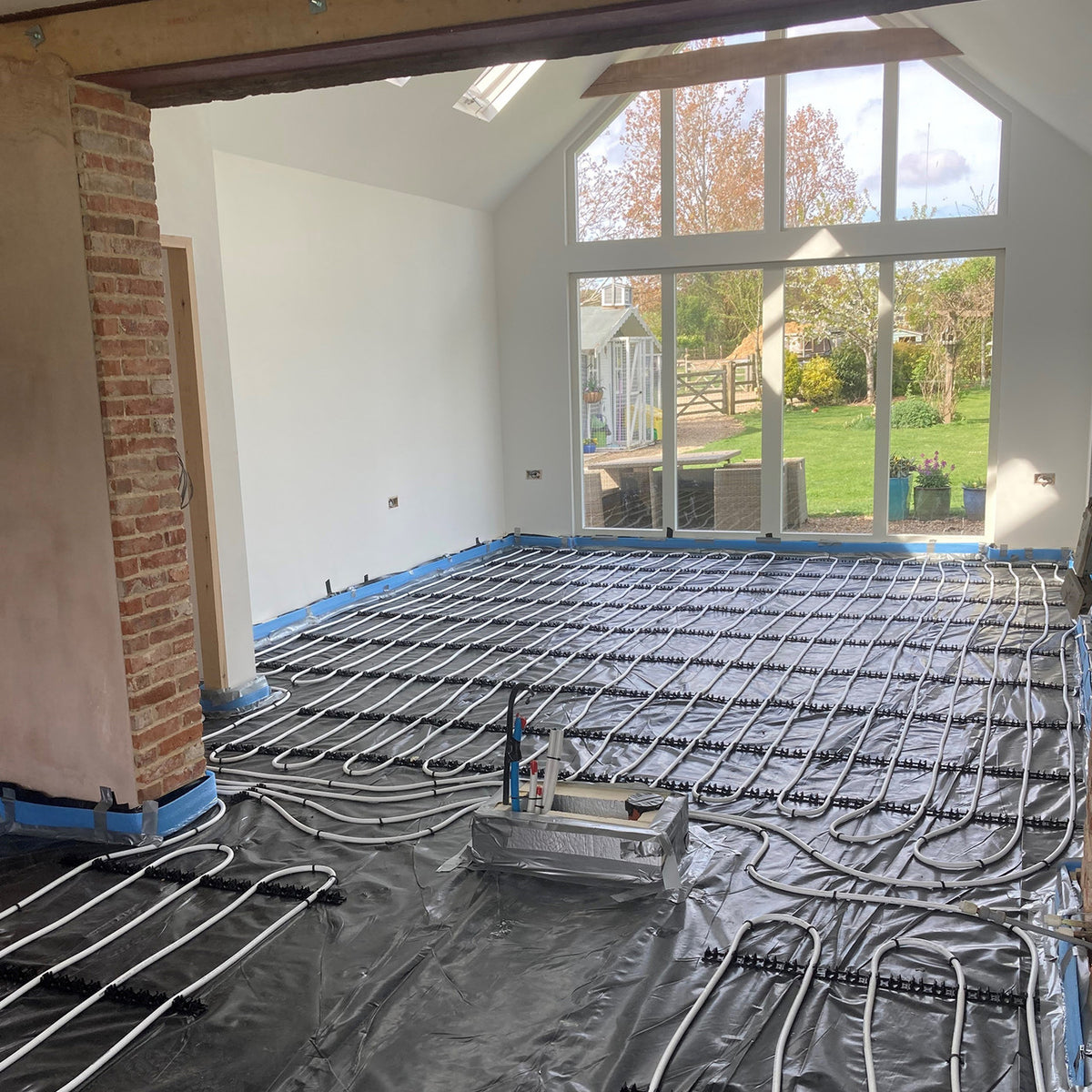

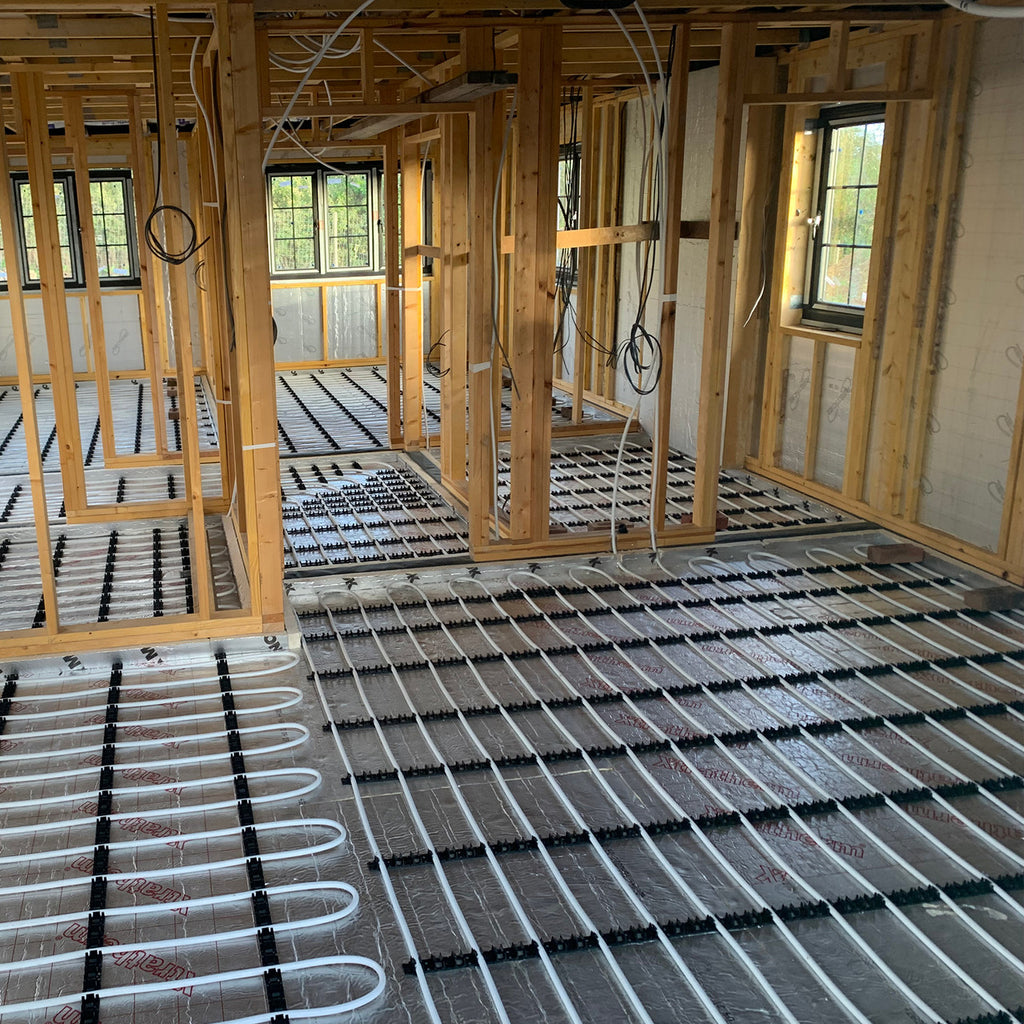

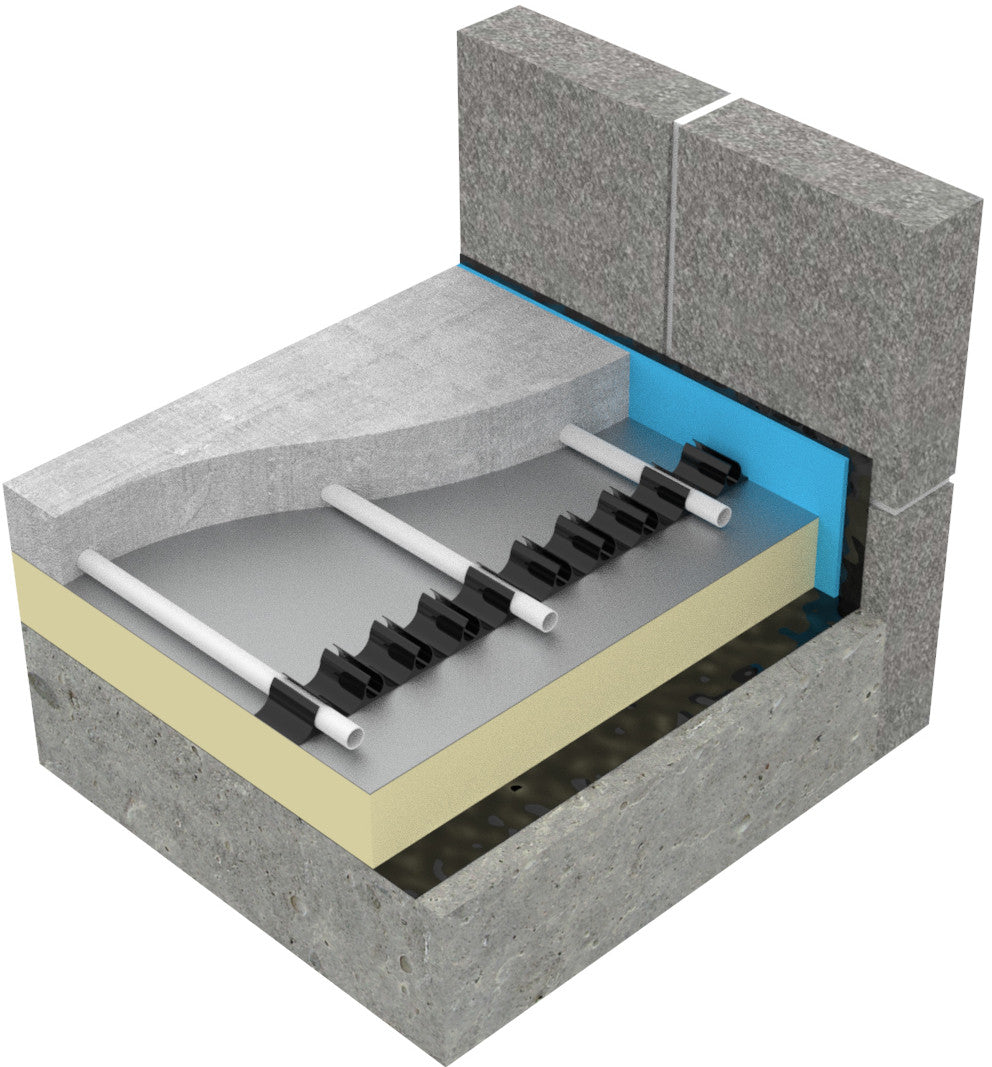

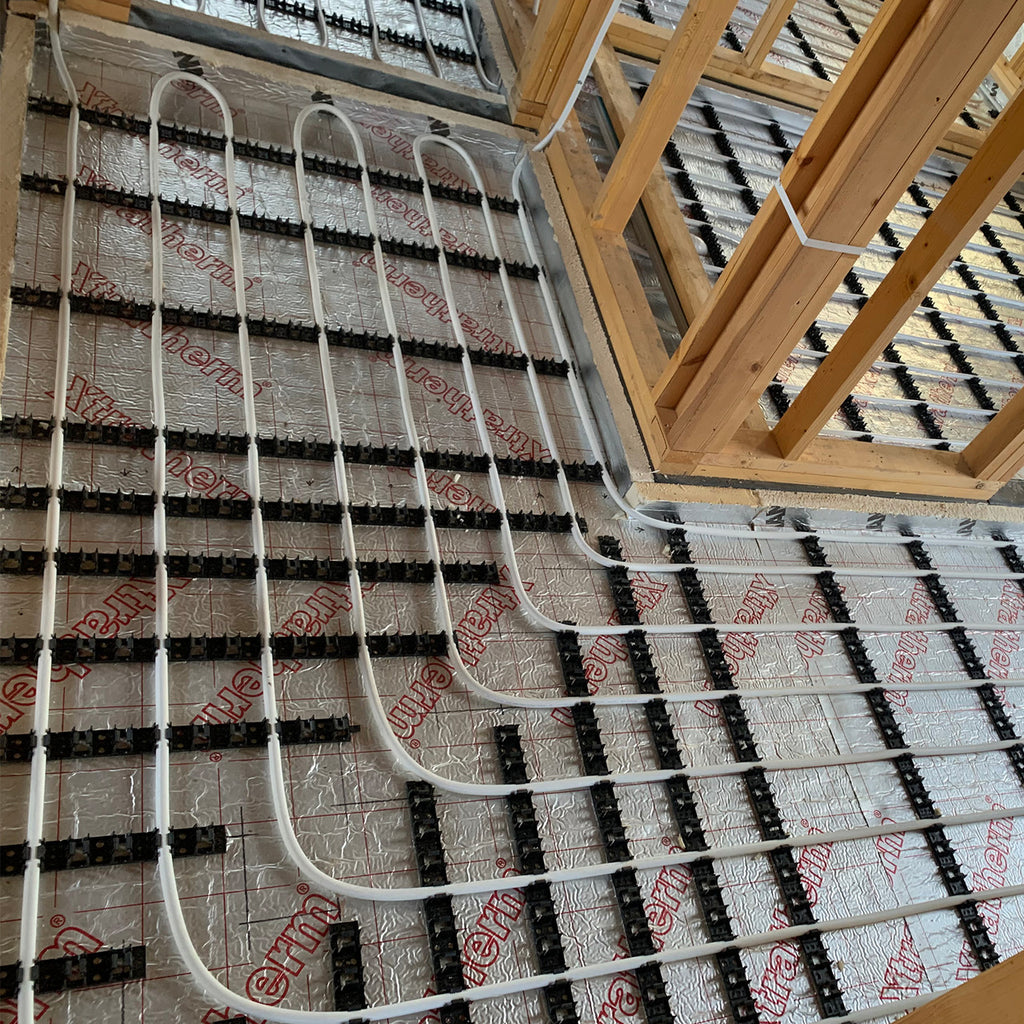

Install the grip rails over suitable rigid PIR insulation, then press the 16mm pipe into the preformed slots at 200mm centres. Fit the edge insulation around the room perimeter before the specified screed is installed over the completed and pressure-tested pipework.
Installation requirements
- Insulation: use a suitable rigid PIR insulation beneath the system.
- Screed depth: allow for a minimum 65mm sand-and-cement screed or 50mm pumped screed, subject to the screed manufacturer's requirements.
- Vapour control: some insulation and screed combinations require a vapour barrier directly over the insulation.
- System design: confirm the room heat loss, available floor build-up and final floor finish before installation.
- Testing: pressure-test the pipework before screeding and have the system connected and commissioned by a suitably competent installer.
Single-zone and multi-zone projects
Each standard kit is supplied for one heating zone. Larger or room-by-room projects can be divided into additional zones using a suitable manifold arrangement and compatible Adept or Heatmiser controls.
