Adept AD-PLATE Timber Water Underfloor Heating Kits
Adept
Adept AD-PLATE Timber Water Underfloor Heating Kits
Product code: UFHK40T
EAN:
The Adept AD-PLATE water underfloor heating kit is designed for suspended timber and batten floor constructions. Aluminium spreader plates distribute heat evenly beneath the floor finish, while the 16mm PERT-AL-PERT pipe is installed at 200mm centres for a designed output of up to 100W/m².
Why choose the Adept AD-PLATE system?
- Designed for suspended timber and batten floor installations
- Aluminium spreader plates promote even heat distribution
- WRAS-approved 16mm PERT-AL-PERT pipe
- A-rated pump for efficient circulation
- Suitable for use with Adept or Heatmiser controls
- Compatible with tiles, wood, vinyl and carpet when installed as part of a suitable floor build-up

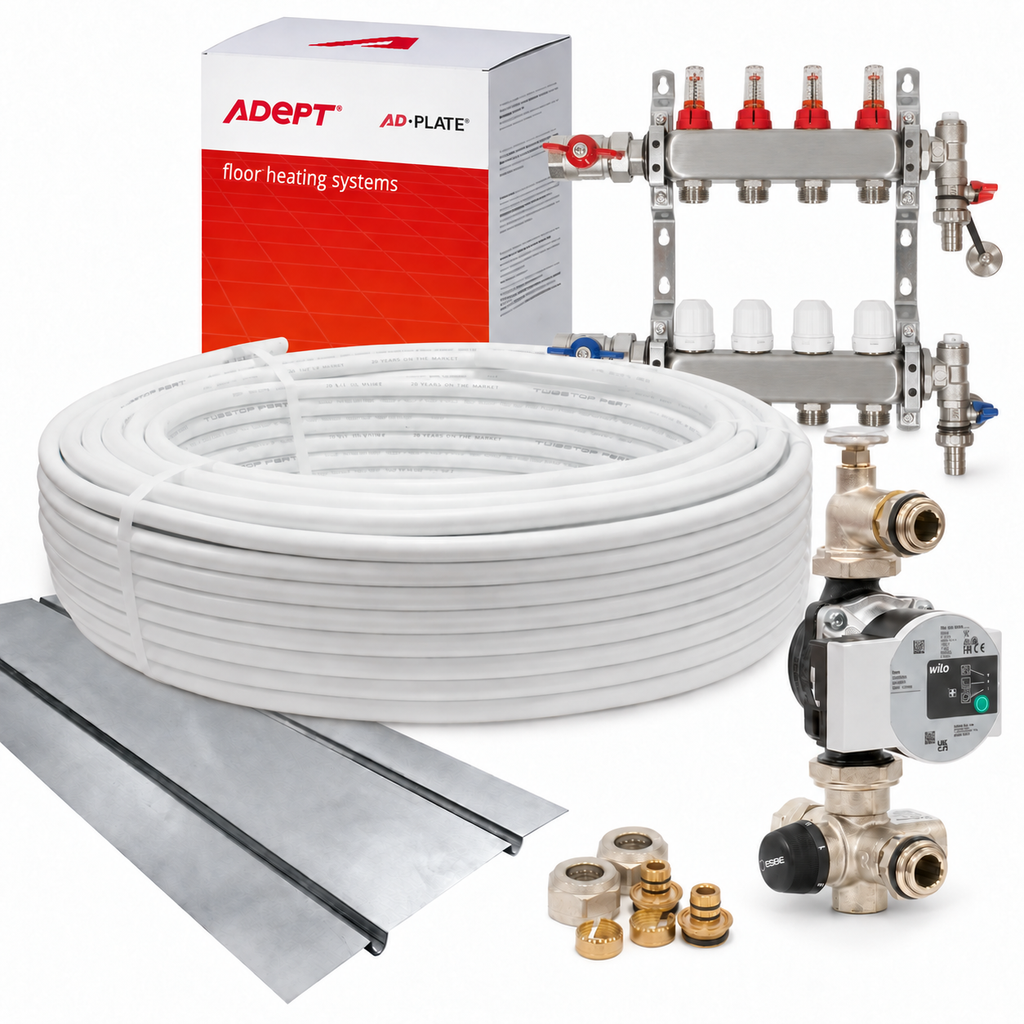

What is included with each AD-PLATE kit?
| Kit size | Control arrangement | Manifold ports | Pipe supplied | Aluminium spreader plates |
|---|---|---|---|---|
| 15m² | Danfoss FHV radiator valve | — | 75m | 31 |
| 20m² | Single-loop control pack | — | 100m | 42 |
| 40m² | Manifold and control pack | 2 | 200m | 83 |
| 60m² | Manifold and control pack | 3 | 300m | 124 |
| 80m² | Manifold and control pack | 4 | 400m | 165 |
| 100m² | Manifold and control pack | 5 | 500m | 205 |
| 120m² | Manifold and control pack | 6 | 600m | 250 |
| 140m² | Manifold and control pack | 7 | 700m | 290 |
All kit sizes include the required pipe connectors and the relevant control items shown above.
Installation guidance

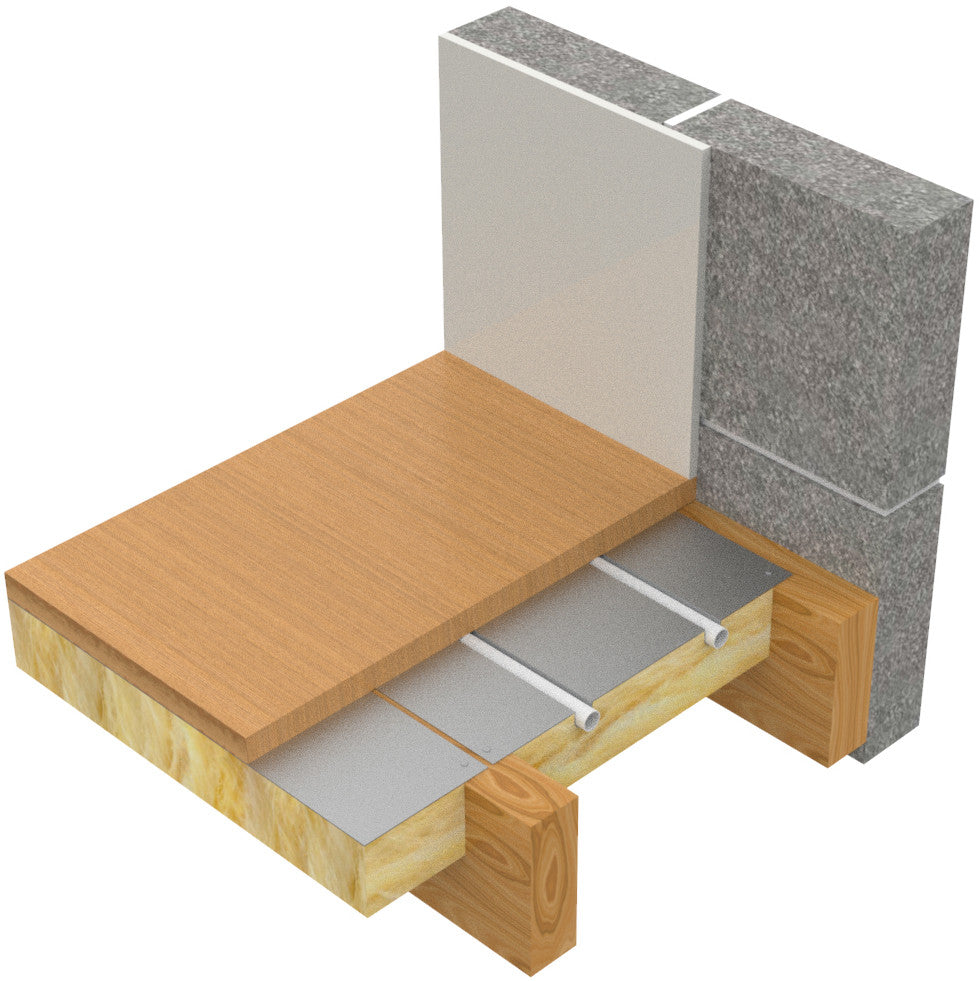

The aluminium spreader plates are positioned between or over the joists or battens, depending on the floor build-up. The 16mm pipe is pressed into the formed channels at 200mm centres. Insulation should be fitted beneath the plates to direct heat upwards; mineral wool is commonly used, although a suitable rigid insulation may also be specified.
The system should be pressure-tested before the floor covering is installed. Always follow the project design, applicable regulations and the floor-finish manufacturer's installation requirements.
Floor finishes
AD-PLATE can be used beneath tiles, engineered wood, suitable vinyl and carpet. The complete floor build-up—including any overlay boards, underlay and adhesives—must be suitable for underfloor heating. For carpeted floors, check the combined thermal resistance of the carpet and underlay.
Planning your system
Select the kit size that most closely matches the heated floor area. Allow for fixed units and other areas where pipework will not be installed, and have the system designed to suit the room heat losses, floor construction and chosen finish.
