Adept AD-CLIP Clip In Screed Water Underfloor Heating Kits

Adept

Adept AD-CLIP Clip In Screed Water Underfloor Heating Kits

£834.99
Sale price  £834.99 Regular price

Product code: UFHK80S

Low stock
Price includes VAT Next-day delivery available on stocked items

Adept In-Screed heating is the Premier Heating Kit, including an A-rated pump (if selected) and WRAS-approved 16mm PERT-AL-PERT Pipe.

Adept Inscreed Heating Kits are all designed for a single zone; however, they can be adjusted with the use of any Adept or Heatmiser controls from within our store. Each Kit is designed to use 200mm centres using a 50mm pipe clip.

The Kits are designed to output 100w/m2.

Kit size Control included Pipe length Edge insulation Pipe clips
15m² FHV valve 75m 25m 200
20m² Single-loop control pack 100m 25m 200
30m² 2-port manifold and control pack 150m 25m 400
40m² 2-port manifold and control pack 200m 25m 400
60m² 3-port manifold and control pack 300m 50m 600
80m² 4-port manifold and control pack 400m 50m 800
100m² 5-port manifold and control pack 500m 75m 1,000
120m² 6-port manifold and control pack 600m 75m 1,200
140m² 7-port manifold and control pack 700m 75m 1,400

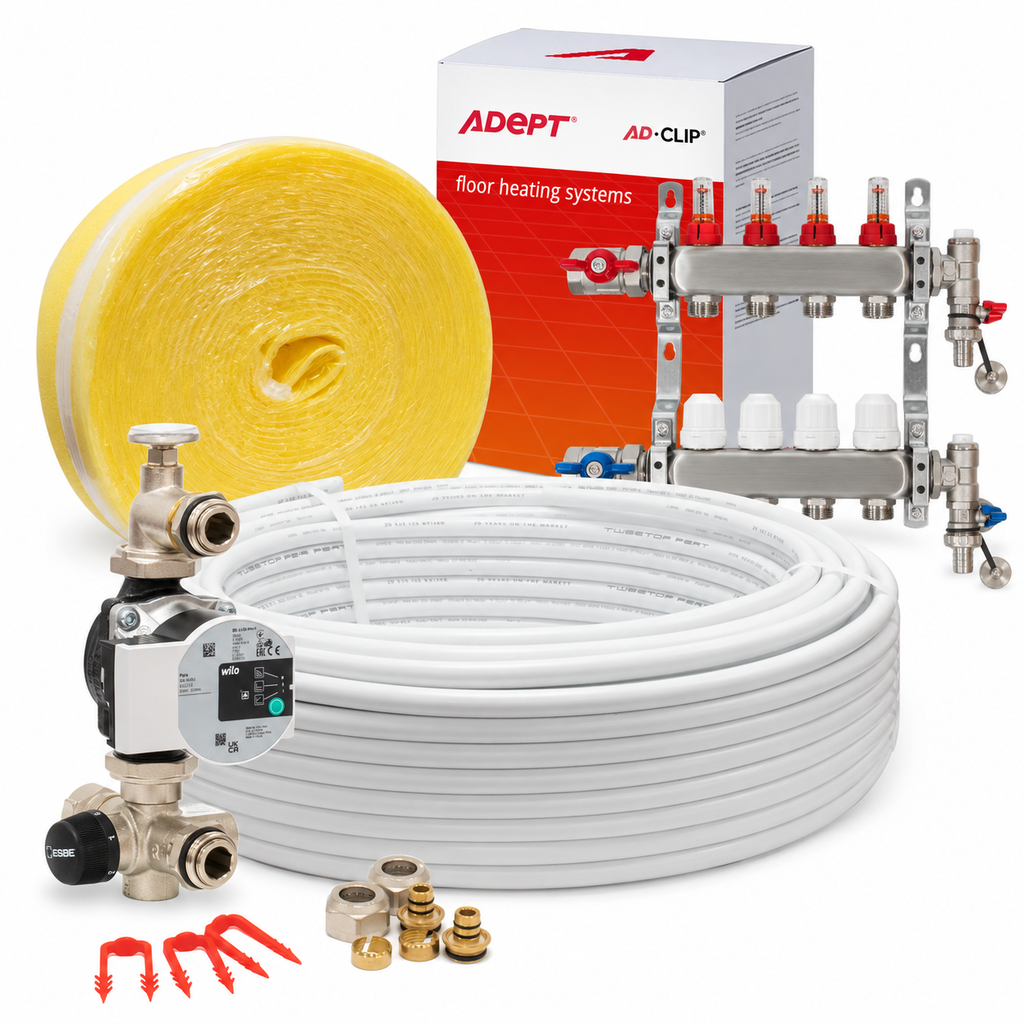

Included with every kit: Pipe connectors.

Notes:

  • Insulation should be rigid PIR.
  • Some insulation / screed combinations require a vapour barrier to be installed directly on the insulation before you install the pipe and lay the screed.
  • To comply with building regulations, you should use a minimum 65mm sand / cement screed or 50mm pumped screed.

Key Features & Specs

  • System type: In-screed water underfloor heating for areas from 15m² to 140m²
  • Designed heat output: 100W/m²
  • Pipe specification: WRAS-approved 16mm PERT-AL-PERT pipe
  • Pipe spacing: Designed for installation at 200mm centres
  • Zone control: Configured as a single heating zone, with additional control options available
  • Kit contents: Includes pipe, connectors, fixing clips and edge insulation
  • Installation requirements: Suitable for rigid PIR insulation with a minimum 65mm sand and cement or 50mm pumped screed
