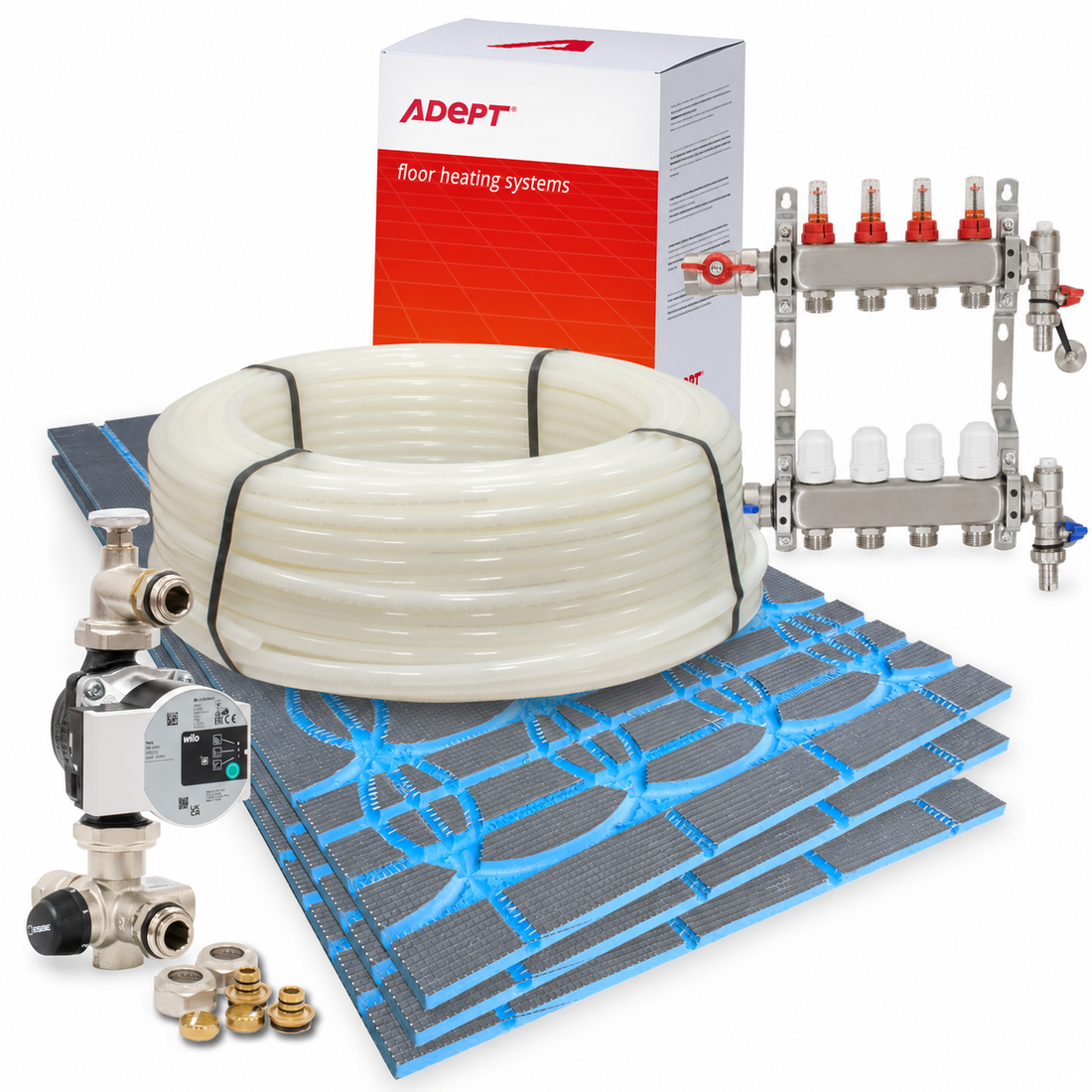

Adept AD-CXPS underfloor heating kit with grooved boards, pipe, manifold, pump and controls

Water underfloor heating solution

AD-CXPS Low-Profile Overlay System

Low-profile warm-water underfloor heating for renovations, extensions and existing floors.

AD-CXPS uses pre-routed, cement-coated XPS boards to hold the heating pipe over a suitable existing floor. It offers a compact alternative to a full screed build-up, with the finished height depending on the board, preparation layers and floor covering.

Shop AD-CXPS Kits Request a Free Sample
Trustpilot 4.8/5 Feefo 5/5

The system behind the solution

Choose Your AD-CXPS Kit

Cement-coated grooved boards create a low-profile heating layer over a suitable existing floor. Pick a kit or ask us to plan the complete build-up.

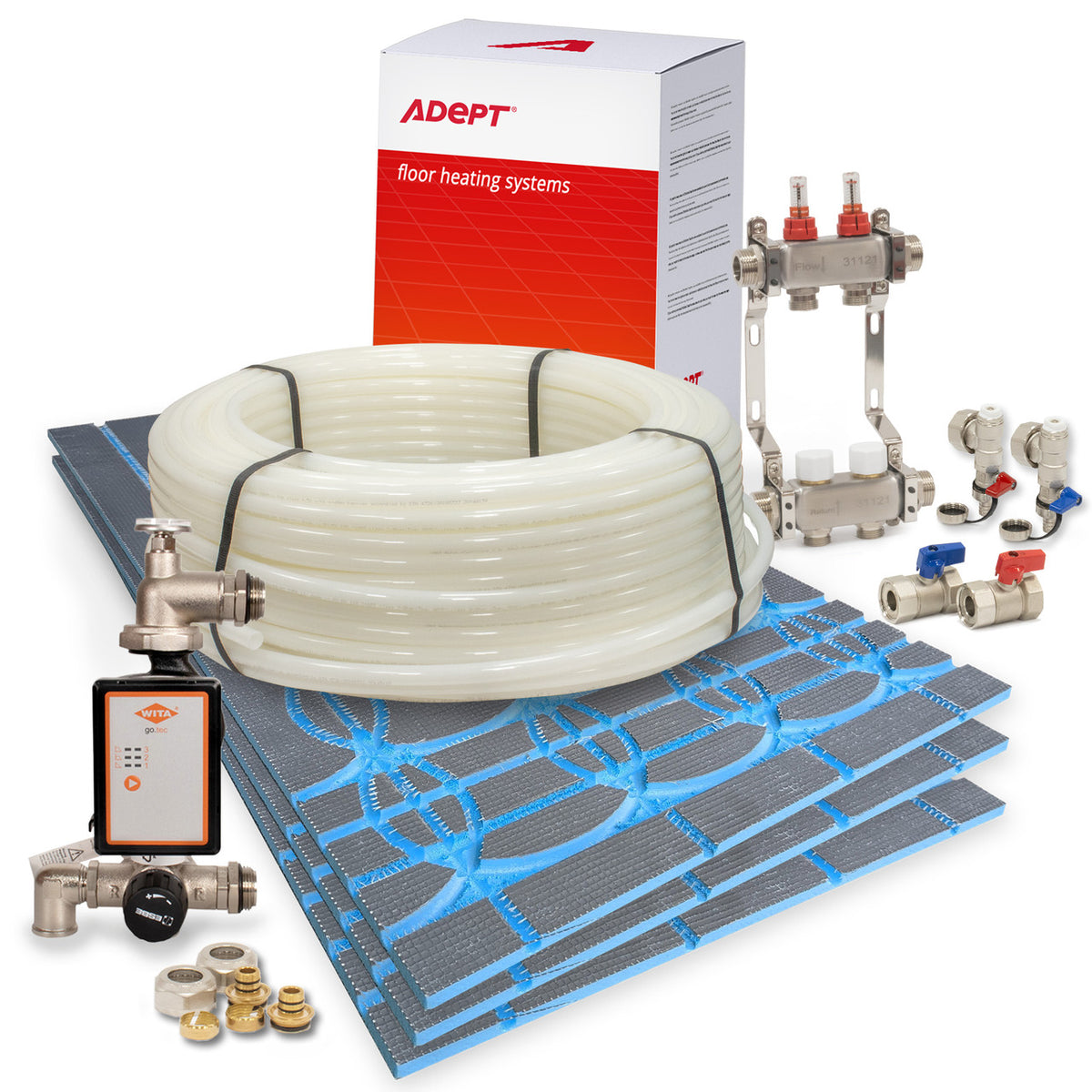

Adept AD-CXPS underfloor heating kit with grooved boards, pipe, manifold, pump and controls
A compact system for existing floors

Grooved boards, pipe and controls vary by kit size.

Buy online

Choose a standard kit

Select the heated area that matches your project.

Kit size

12m² kit contents vary by size. Review the full kit details before ordering.

Selected kit
£774.99 inc. VAT
Unsure of the right size or zoning? See full kit contents and specifications

Need help planning the system?

Not Sure Whether AD-CXPS Suits Your Floor?

Tell us about the existing base, available floor height, room plans, heat source and intended finish. Our specialists will help you confirm the system and complete build-up.

Request a Project Quote Talk to an Expert

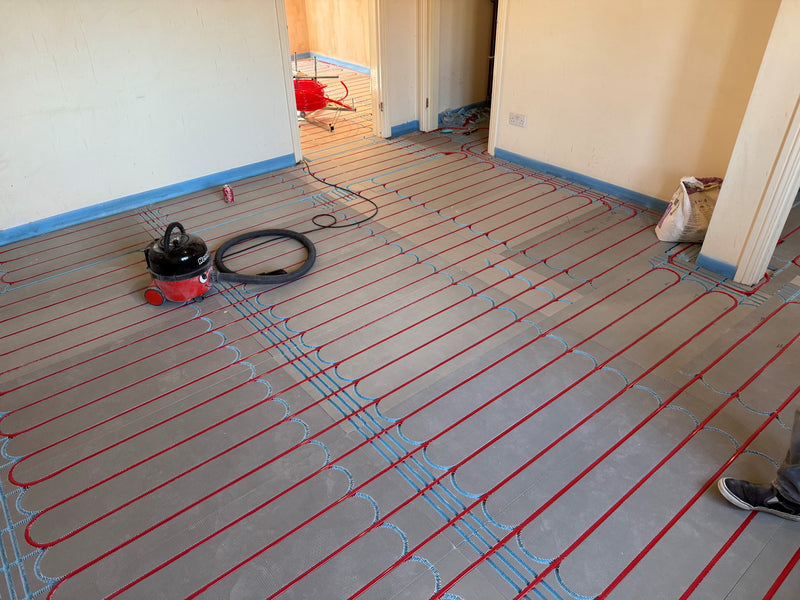

AD-CXPS water underfloor heating overlay system

Straightforward installation

How AD-CXPS Is Installed

Plan the boards and heating circuits before installation. For manifold connections, testing and commissioning, read our water installation guide alongside the AD-CXPS system instructions.

  1. 1Check that the existing base is prepared, stable, clean and suitable for the specified fixing method
  2. 2Plan the board layout, heating circuits and manifold connections before fixing the boards
  3. 3Install the AD-CXPS boards in accordance with the current system instructions
  4. 4Press the heating pipe into the routed channels and complete the required testing
  5. 5Add the preparation layer required for the chosen finished floor

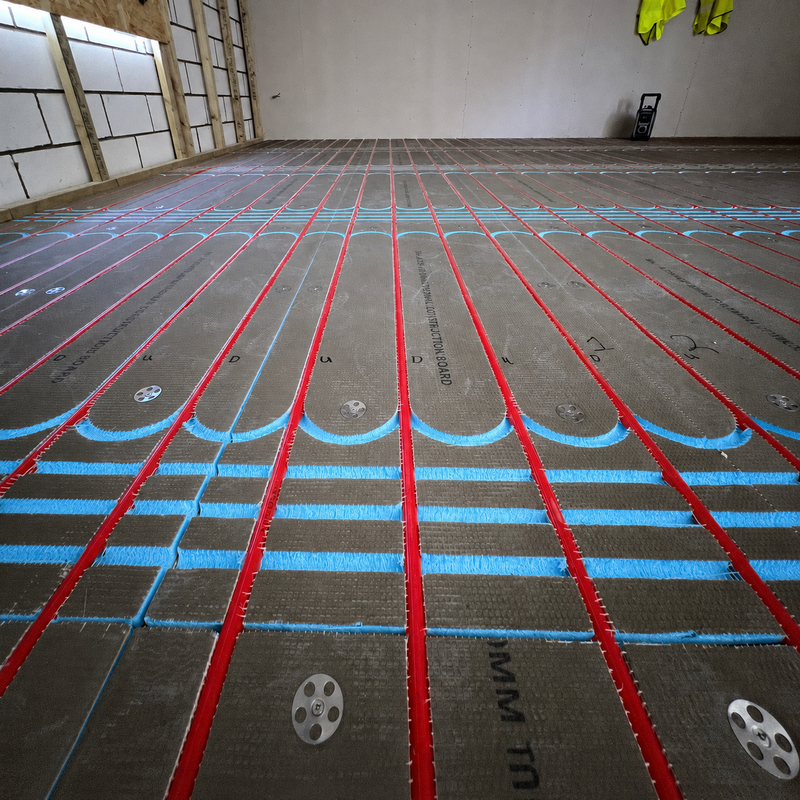

Close-up of routed channels in the cement-coated AD-CXPS board

Designed as one floor layer

Why the Grooved Board Matters

The grooved board combines pipe positioning and a cement-coated working surface in one compact overlay layer.

  • Ready-made grooves hold the pipe in its planned position
  • A cement-coated surface supports the specified finishing layers
  • No traditional full screed; adhesives and levelling compounds still need their specified curing time

Plan the complete installation

Where AD-CXPS Works Best

AD-CXPS suits renovation and extension projects where the existing structural floor remains. Suitable bases can include solid or screeded floors, beam-and-block, suspended timber and batten floors, subject to assessment and the specified fixing method.

  • Retaining an existing structural floor
  • Limited space for a full-depth screed
  • An assessed, stable and prepared base
  • A compatible heat source and designed controls

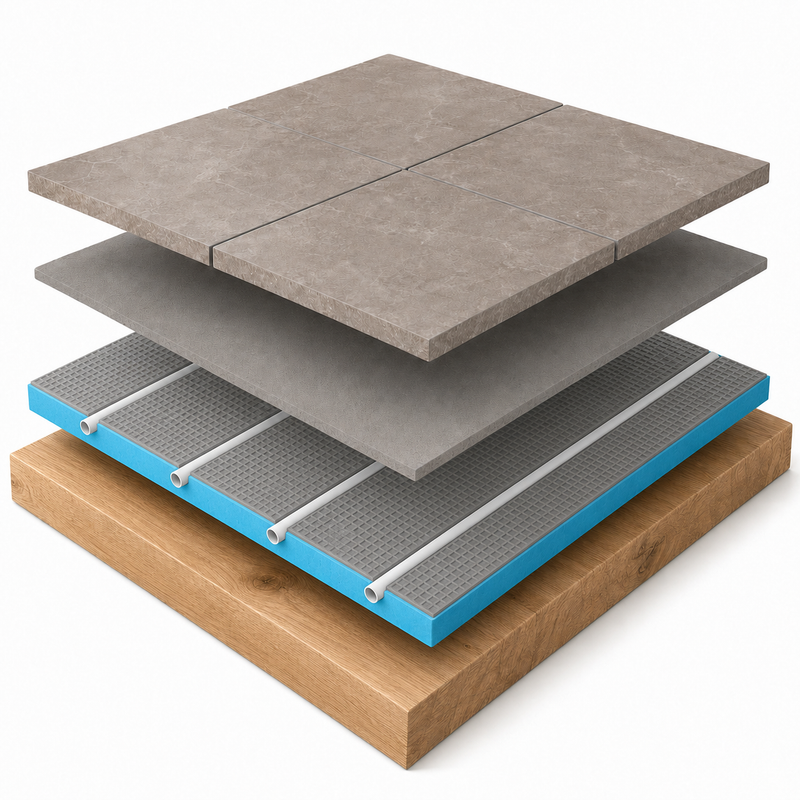

Typical AD-CXPS overlay floor build-up

Typical Floor Build-Up

Check the height of every layer, including the preparation and final floor covering.

  1. 1Prepared base and specified fixing materials
  2. 2AD-CXPS cement-coated grooved boards
  3. 3Heating pipe within the routed channels
  4. 4Approved adhesive or levelling layer
  5. 5Compatible finished floor covering
≈18–20mm
Overlay height before the final floor finish
Pre-routed
Cement-coated XPS boards
5mm
Latex layer for specified non-tile finishes
12–97m²
Standard kit sizes

AD-CXPS project advice

Frequently Asked Questions

Clear answers about floor height, suitable constructions, floor finishes and planning an AD-CXPS installation.

What is the AD-CXPS underfloor heating system?

AD-CXPS is a low-profile warm-water underfloor heating system built around a pre-routed, cement-coated XPS board. The board positions and retains the heating pipe and forms an integral part of the overlay floor build-up.

How much floor height does AD-CXPS add?

AD-CXPS boards are available in 18mm and 20mm versions, matched to the specified pipe size. These are board thicknesses, not finished floor heights. Allow for fixing materials, any levelling or preparation layer and the floor covering. Confirm the board supplied with your kit and the complete build-up before ordering.

Which existing floor constructions can AD-CXPS be installed over?

AD-CXPS can be considered for suitable solid or screeded floors, beam-and-block constructions, suspended timber floors and batten floors. The base must be assessed, prepared and fixed in accordance with the current system instructions.

Which floor finishes can be used over AD-CXPS?

Compatible tile, wood, vinyl and carpet finishes can form part of an AD-CXPS build-up. The preparation above the board varies by finish, so confirm the flooring manufacturer’s approval, temperature limits and required intermediate layers.

View all AD-CXPS questions Show fewer questions
Can tiles be installed directly over AD-CXPS?

Compatible tiles can be installed using the direct tiling construction specified for AD-CXPS. Use the approved adhesive, preparation and fixing method described in the current system documentation.

What is required beneath wood, vinyl or carpet?

These finishes normally require approximately 5mm of a suitable latex levelling compound over the heating layer before the approved floor covering is installed. Confirm the exact compound, depth, adhesive and temperature limits for the project.

Is AD-CXPS suitable for every retrofit project?

No single overlay system suits every floor. Check the available build-up, room heat loss, base-floor condition, heat source, controls and final finish. Where these do not suit AD-CXPS, another overlay or in-floor system may be more appropriate.

How do I choose the correct AD-CXPS kit size?

Provide the room dimensions, usable heated area, floor construction, heat source and intended finish. A project design should confirm the pipe layout, circuit lengths, manifold requirements and kit size before ordering.
