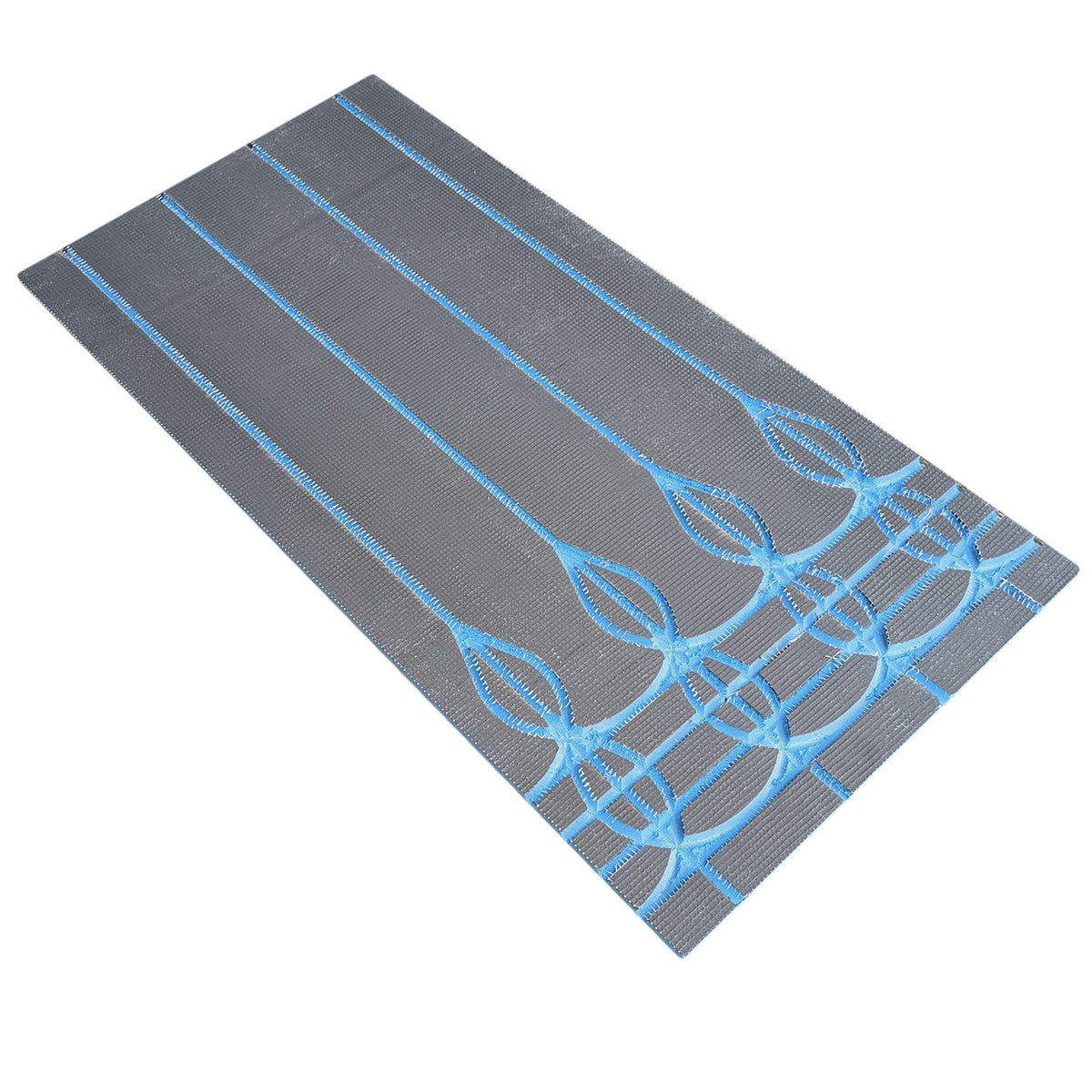

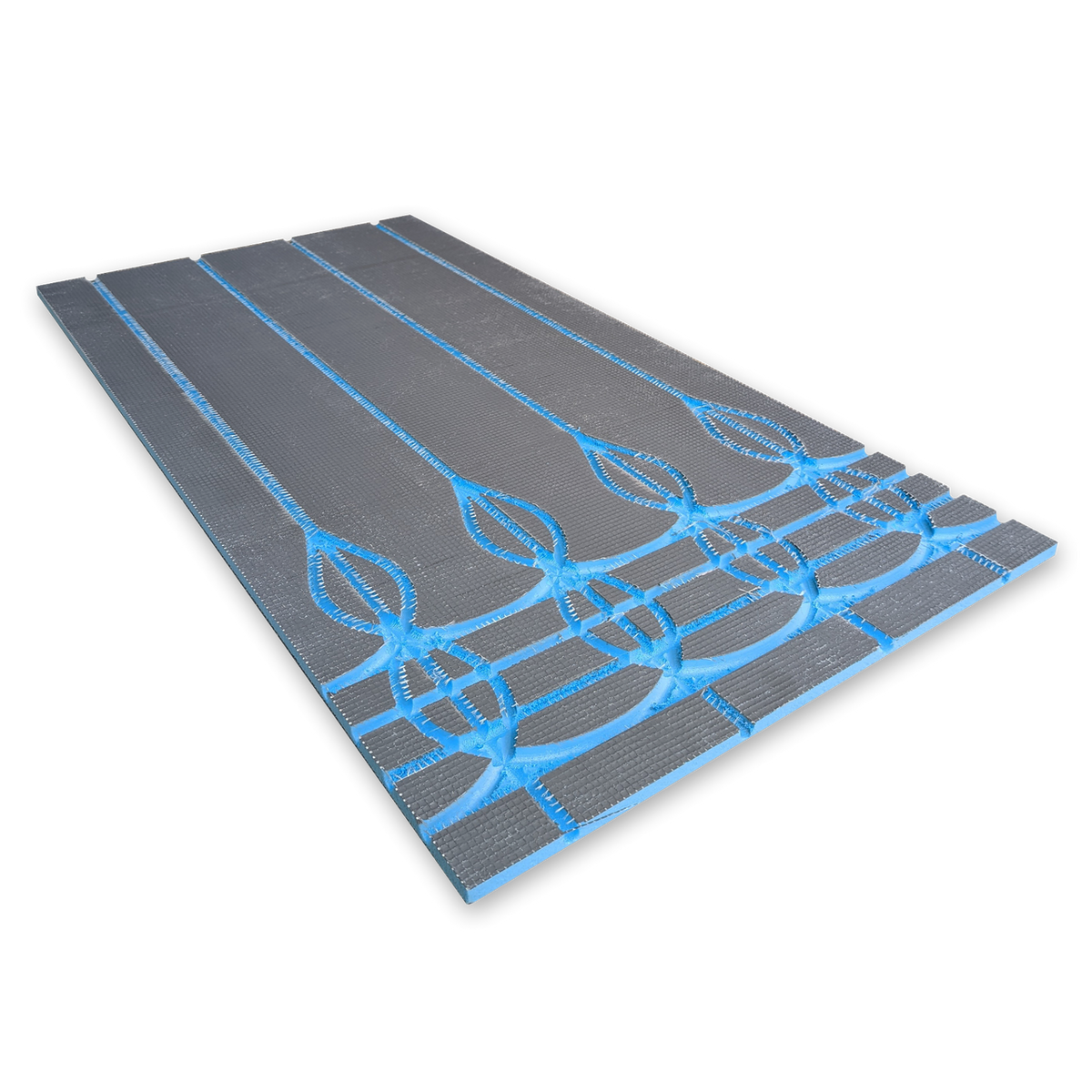

The Adept AD-CXPS is a low-profile water underfloor heating kit built around pre-routed, cement-coated XPS panels.
Designed for projects where floor height is limited, the system adds approximately 18–20mm before the final floor finish. The heating pipe is pressed into the routed channels, allowing each panel to retain the pipe and become an integral part of the floor build-up. Kits cover clear heated areas from 12m² to 97m².
Why choose the AD-CXPS system?
- Low-profile construction adds approximately 18–20mm to the floor height before the final floor finish.

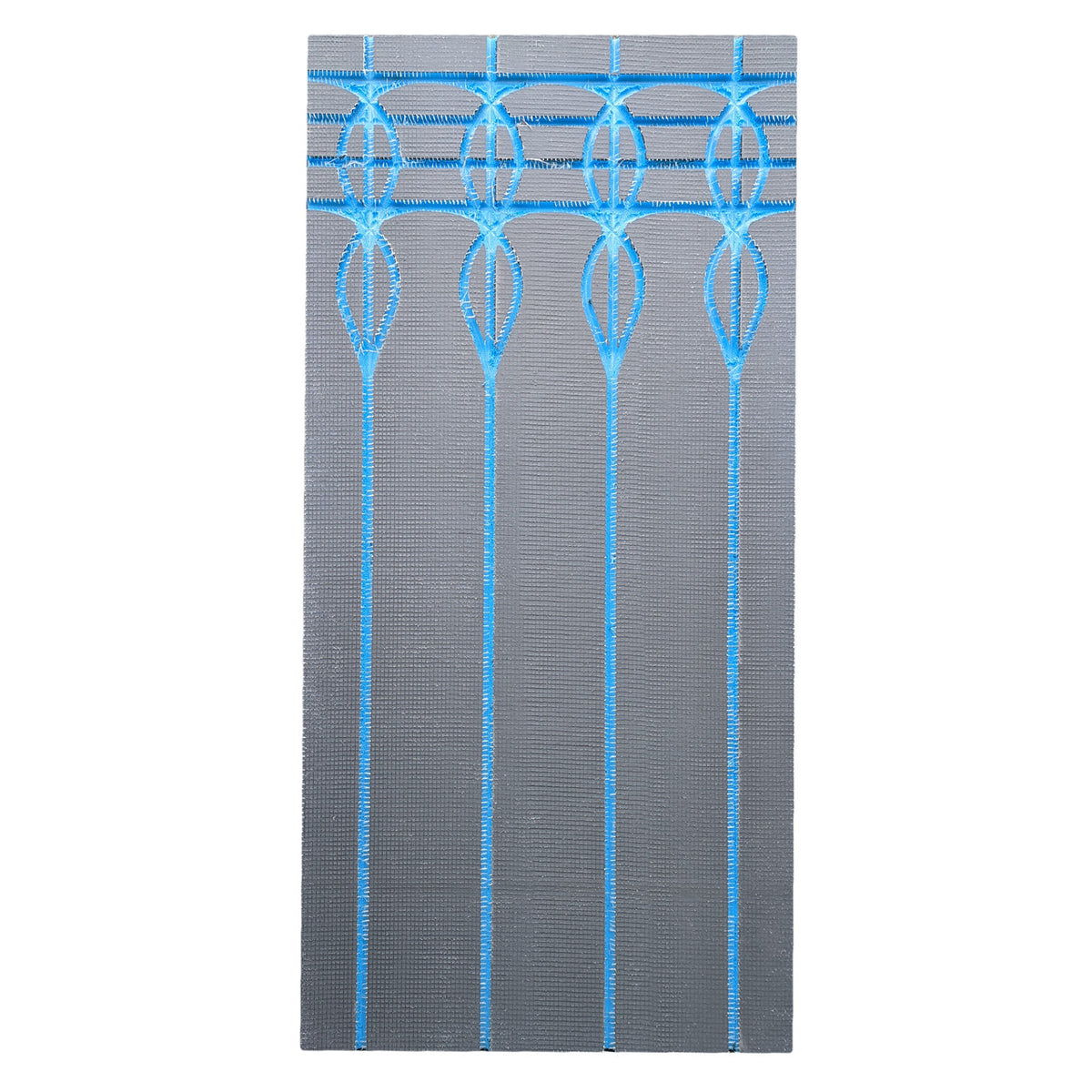

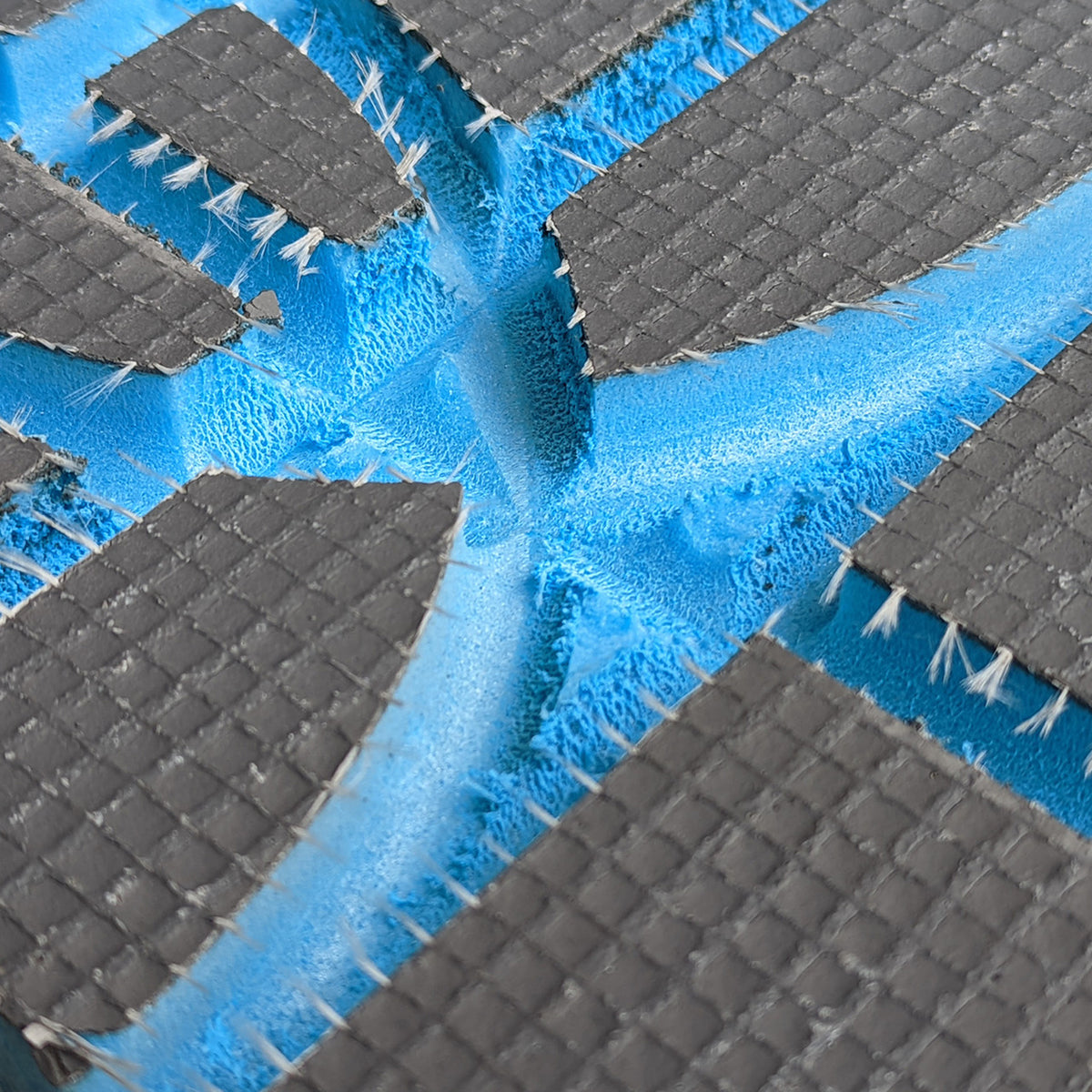

- Pre-routed channels simplify the pipe layout and hold the pipe securely during installation.
- Suitable for installation over many properly prepared existing floor bases.
- Tiles can be installed over the prepared system, while other floor finishes can be accommodated using a 5mm latex levelling layer.

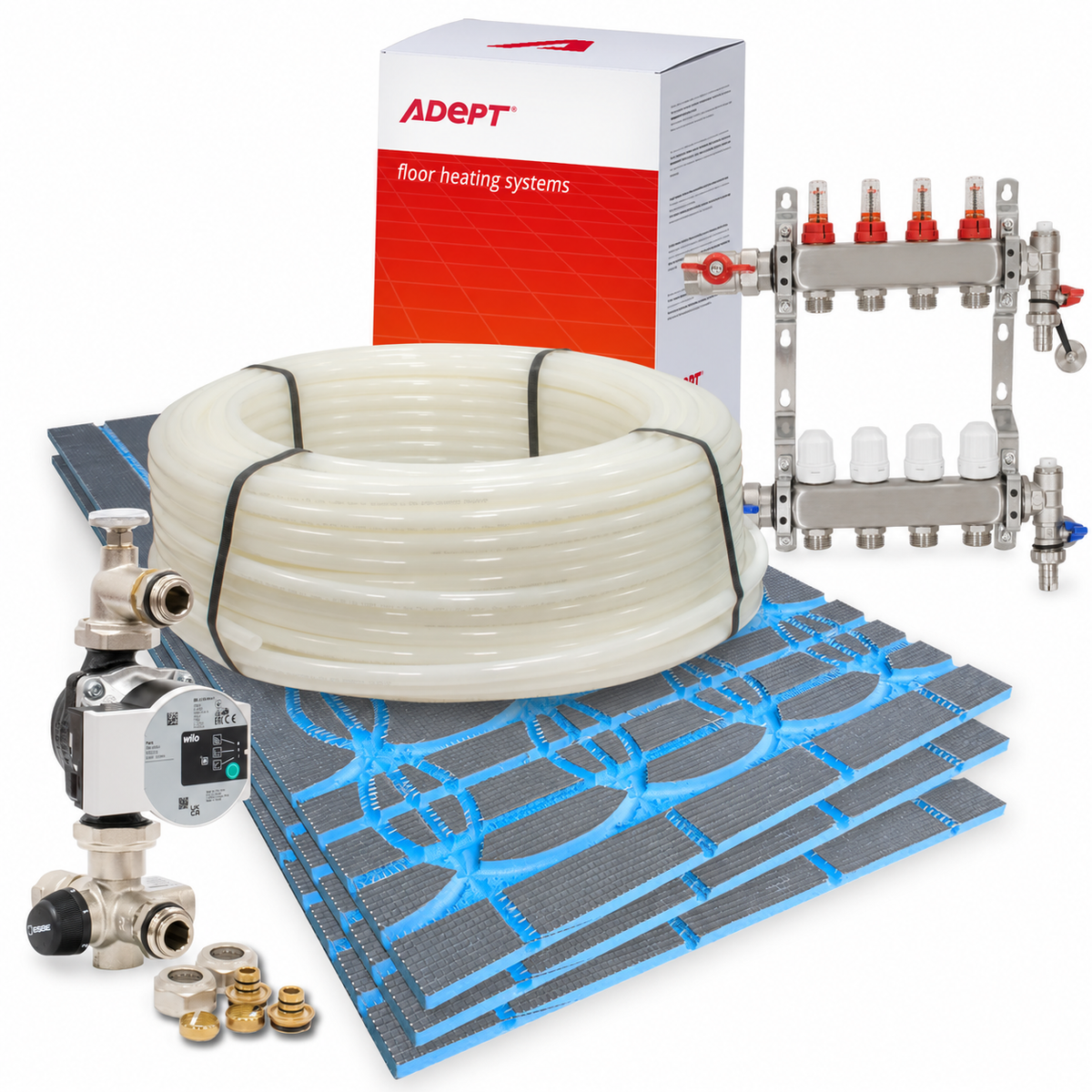

- Complete kits include the appropriate control arrangement, heating pipe, pipe connectors and AD-CXPS panels for the selected coverage.

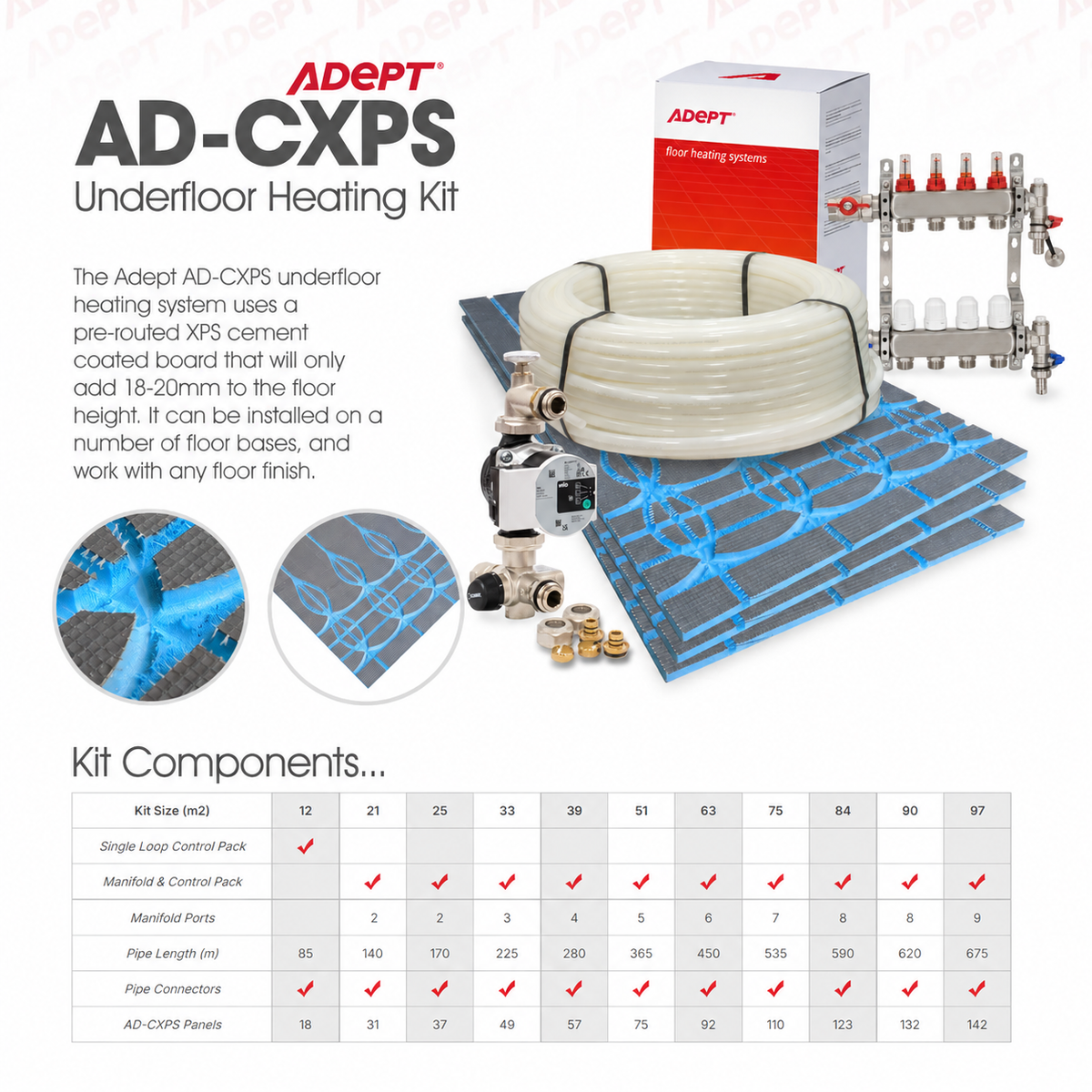

What is included with each AD-CXPS kit?
The quantities below are taken from the AD-CXPS kit schedule. Select the kit using the clear floor area that will actually be heated, excluding fixed kitchen units, sanitaryware and other permanent furniture.
Swipe to view all kit components →
| Kit size | Control arrangement | Manifold ports | Pipe supplied | AD-CXPS panels |
|---|---|---|---|---|
| 12m² | Single-loop control pack | — | 85m | 18 |
| 21m² | Manifold and control pack | 2 | 140m | 31 |
| 25m² | Manifold and control pack | 2 | 170m | 37 |
| 33m² | Manifold and control pack | 3 | 225m | 49 |
| 39m² | Manifold and control pack | 4 | 280m | 57 |
| 51m² | Manifold and control pack | 5 | 365m | 75 |
| 63m² | Manifold and control pack | 6 | 450m | 92 |
| 75m² | Manifold and control pack | 7 | 535m | 110 |
| 84m² | Manifold and control pack | 8 | 590m | 123 |
| 90m² | Manifold and control pack | 8 | 620m | 132 |
| 97m² | Manifold and control pack | 9 | 675m | 142 |
Also included with every kit: pipe connectors and the components shown for the selected control arrangement.
How is AD-CXPS installed?
Prepare a sound, level and suitable floor base, then lay the AD-CXPS panels and press the heating pipe into the pre-routed channels. The panel acts as the pipe retainer and remains as part of the completed floor build-up. Pressure-test the pipework before applying the required floor-finish system.
Floor-finish guidance
- Tiles: can be installed over the correctly prepared AD-CXPS system using compatible installation materials.
- Other floor finishes: apply a 5mm latex levelling layer before installing the selected finish.
- Compatibility: follow the requirements of the floor-finish, adhesive and levelling-compound manufacturers.
System planning
Confirm the room heat loss, available floor build-up, substrate condition and final floor finish before installation. Select the kit by the clear heated floor area and have the system connected, tested and commissioned by a suitably competent installer.
