AD-CHIPBOARD floor build-up over insulated timber joists

Water underfloor heating solution

AD-CHIPBOARD Grooved Floor System

Water underfloor heating built into a grooved chipboard floor deck for timber-floor projects.

Foil-faced panels hold the heating pipe within the floor deck. Add the specified protective layer and chosen floor covering to complete a dry construction without a traditional screed.

Shop AD-CHIPBOARD Kits Get a Quote
Trustpilot 4.8/5 Feefo 5/5

The system behind the solution

Choose Your AD-CHIPBOARD Kit

Foil-faced grooved chipboard panels combine a structural deck with a pipe-retaining layer. Pick a kit or send us your floor plans.

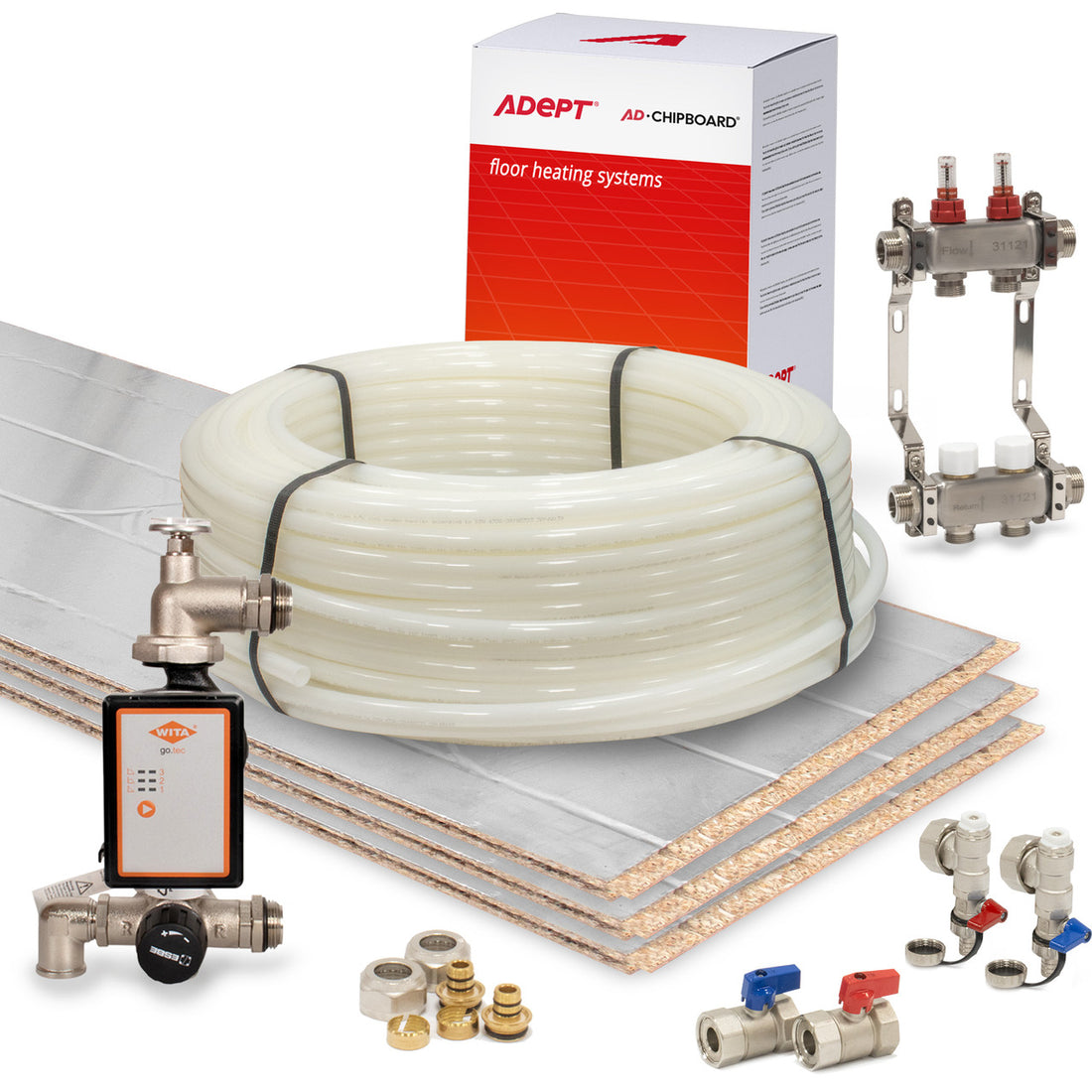

Adept AD-CHIPBOARD underfloor heating kit with foil-faced panels, heating pipe, manifold, pump and controls
A structural deck and heating system

Grooved boards, pipe and controls vary by kit size.

Buy online

Choose a standard kit

Select the heated area that matches your project.

Kit size

12m² kit contents vary by size. Review the full kit details before ordering.

Selected kit
£1,425.49 inc. VAT
Unsure of the right size or zoning? See full kit contents and specifications

AD-CHIPBOARD project support

Plan Your AD-CHIPBOARD System

Send us your floor plans, joist details and chosen covering. We can help check the build-up and specify the boards, pipe circuits, manifold and controls.

Get a Quote Speak to an Expert

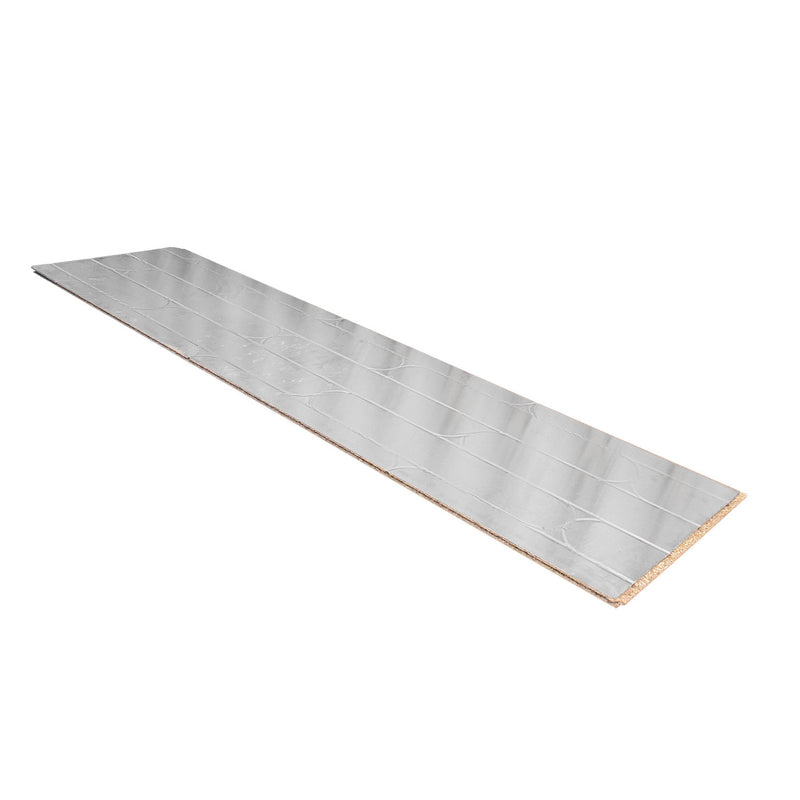

Full AD-CHIPBOARD foil-faced tongue-and-groove heating panel

Installation overview

How AD-CHIPBOARD Is Installed

Plan the deck and pipe routes together. For a joisted installation, follow the project design and current product instructions:

  1. 1Confirm heat loss, joist layout, manifold position, pipe circuits and the complete floor build-up.
  2. 2Prepare the joists and fit insulation between them. Product guidance specifies a maximum 600mm joist spacing; confirm the structural design.
  3. 3Glue adjoining tongue-and-groove edges and the panel-to-joist contact areas, then screw the panels to the joists as specified.
  4. 4Fit the 12mm PERT pipe into the routed channels through the foil, following the planned circuit routes.
  5. 5Connect, fill and pressure-test the circuits before covering the pipe.
  6. 6Mechanically fix the specified protective deck without damaging the pipe, then fit the approved floor finish.

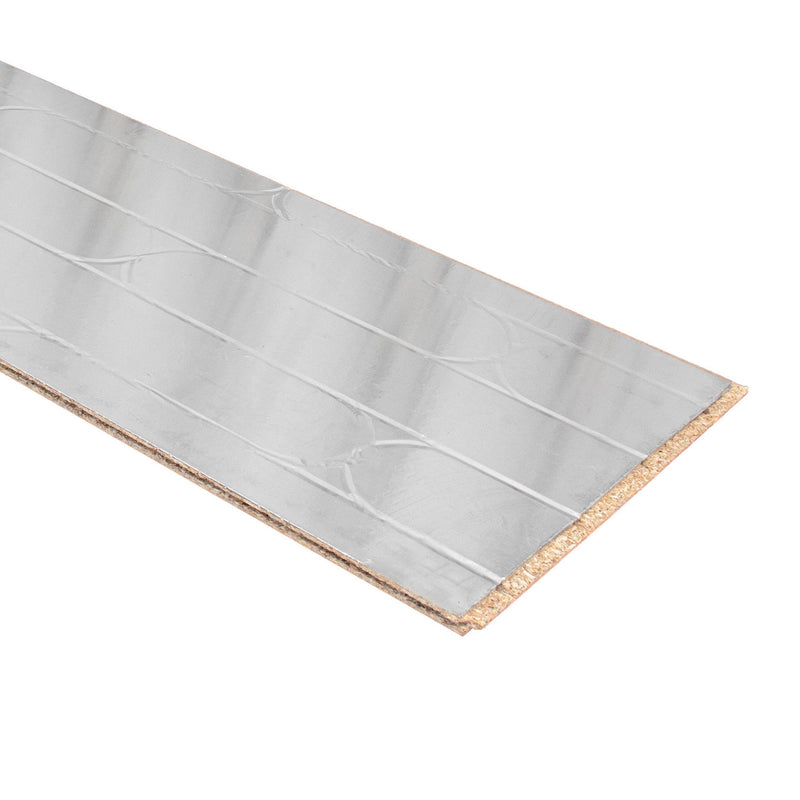

Close view of the foil facing, routed channels and chipboard edge of an AD-CHIPBOARD panel

Understanding the floor deck

Grooved Boards with a Protective Top Layer

The grooved chipboard carries the heating pipe within the deck. A separate flooring-grade layer above it provides a stable base for the finish and helps protect the pipe during future floor replacement.

  • Routed channels position the pipe at 150mm centres.
  • Tongue-and-groove edges join adjoining panels.
  • The foil facing forms part of the heating panel.
  • The protective top layer is separate from the 22mm heating board.

Plan the complete installation

Where AD-CHIPBOARD Works Best

Consider AD-CHIPBOARD where a chipboard floor deck is being installed or replaced. If the existing deck is staying, compare the overlay systems before choosing.

  • New builds and extensions with a designed timber floor.
  • Renovations where the existing floor deck is being replaced.
  • Suitable joisted or battened constructions with insulation below.
  • Projects allowing for a protective deck and the chosen floor finish.

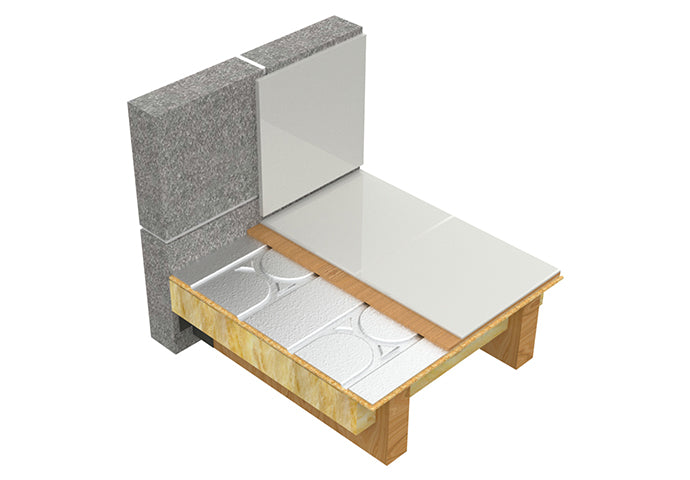

Typical AD-CHIPBOARD build-up showing heating panels above insulated timber joists and a protective upper flooring layer

Typical AD-CHIPBOARD Floor Build-Up

This example shows a timber-joist construction. The supporting floor, insulation and layers above the panels must be specified for your project.

  1. 1Designed timber joists or supporting battens
  2. 2Specified insulation between the supports
  3. 322mm foil-faced, grooved chipboard deck
  4. 412mm PERT heating pipe within the routed channels
  5. 5Mechanically fixed protective flooring-grade layer
  6. 6Any further preparation or underlay, then the compatible floor finish
22mm
Grooved chipboard panel
12mm
PERT heating pipe
150mm
Routed pipe centres
2400 × 600mm
Individual panel format

AD-CHIPBOARD project advice

Frequently Asked Questions

Answers about board thickness, joists, protective layers and choosing your kit.

What is the AD-CHIPBOARD system?

It is a water underfloor heating system using 22mm foil-faced, grooved P5 chipboard panels and 12mm PERT pipe. The panels combine the floor deck with channels for the heating pipe.

How much floor height does it need?

The heating board is 22mm thick. The protective deck and chosen floor finish add to this. The product guidance specifies 6mm or thicker plywood for carpet, laminate and timber, while other finishes may need a different preparation layer.

What joist spacing is required?

The product guidance gives a maximum joist spacing of 600mm, with insulation between the joists. Your designer must confirm the joist sizes, supports, floor loading and fixing specification for the project.

Can I lay the floor finish directly on the heating panels?

A separate, mechanically fixed flooring-grade layer is required above the heating panels. It provides a stable base and helps protect the pipe when floor coverings are replaced. Fixings must avoid the pipe routes.

View all AD-CHIPBOARD questions Show fewer questions
Can I use tiles or vinyl?

They can be considered with the correct sub-deck and preparation. Depending on the finish, this may involve thicker plywood, a suitable backer board or a preparation layer. Follow the flooring and preparation-product manufacturers' instructions.

Is it the same as a thin overlay system?

AD-CHIPBOARD is suited to projects where a grooved chipboard floor deck is being fitted. If you intend to retain the existing structural floor, compare the overlay options or ask us to check the construction.

Can I use it for several rooms or zones?

The product is offered as a single-zone kit. Multiple rooms or separate temperature zones need a suitable circuit layout, manifold and control specification. Send us your plans so we can check what is required.

How do I choose the correct kit?

Provide your heated area, room plan, floor construction, heat source and zoning requirements. The design should confirm board quantities, circuit lengths, manifold size and controls.

Browse AD-CHIPBOARD kits to check sizes and contents, or get a quote for your project.
