Adept AD-CHIPBOARD Foiled Grooved Water Underfloor Heating Kits
Adept
Adept AD-CHIPBOARD Foiled Grooved Water Underfloor Heating KitsAdept AD-CHIPBOARD Foiled Grooved Water Underfloor Heating Kits
Product code: UFHK12TG
EAN:

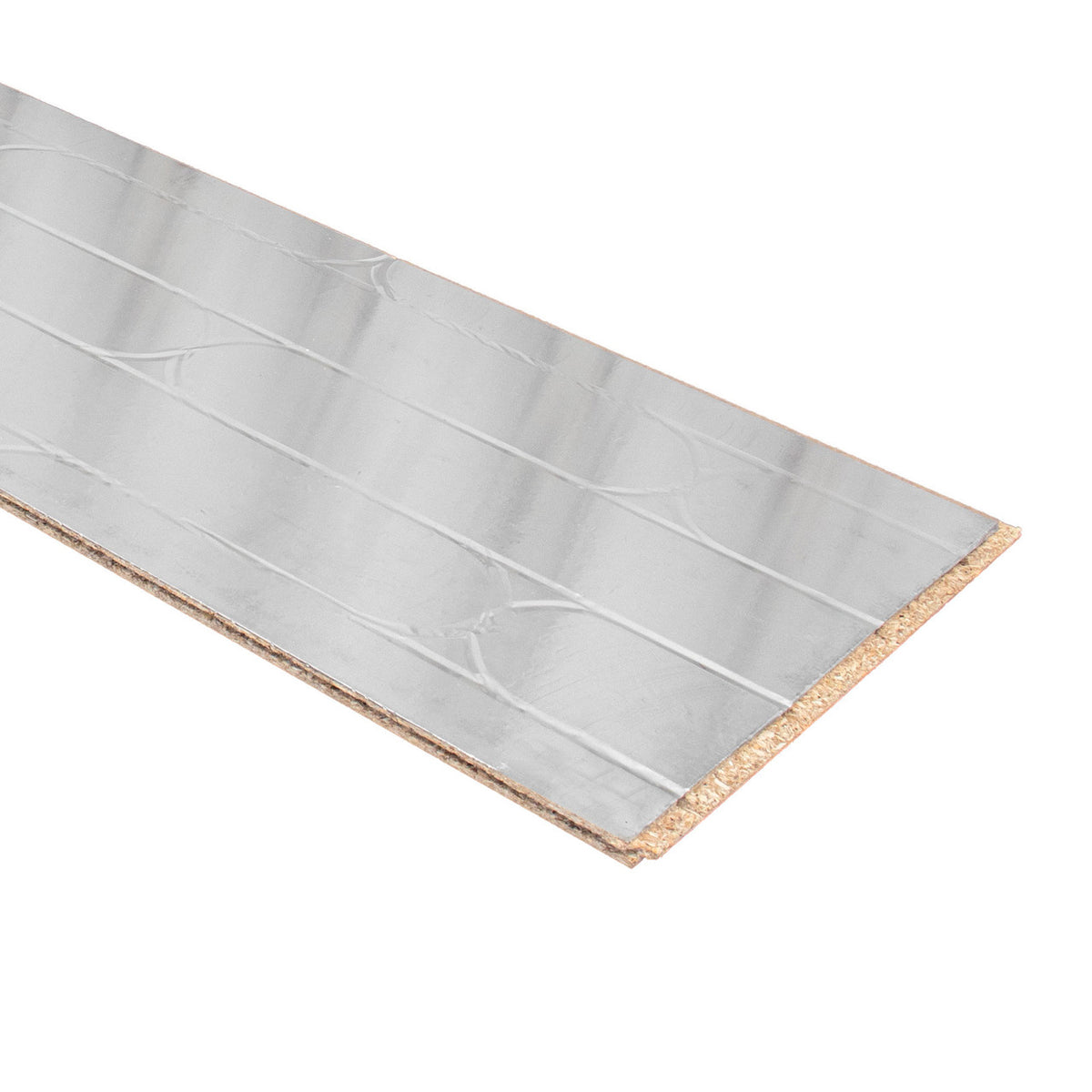

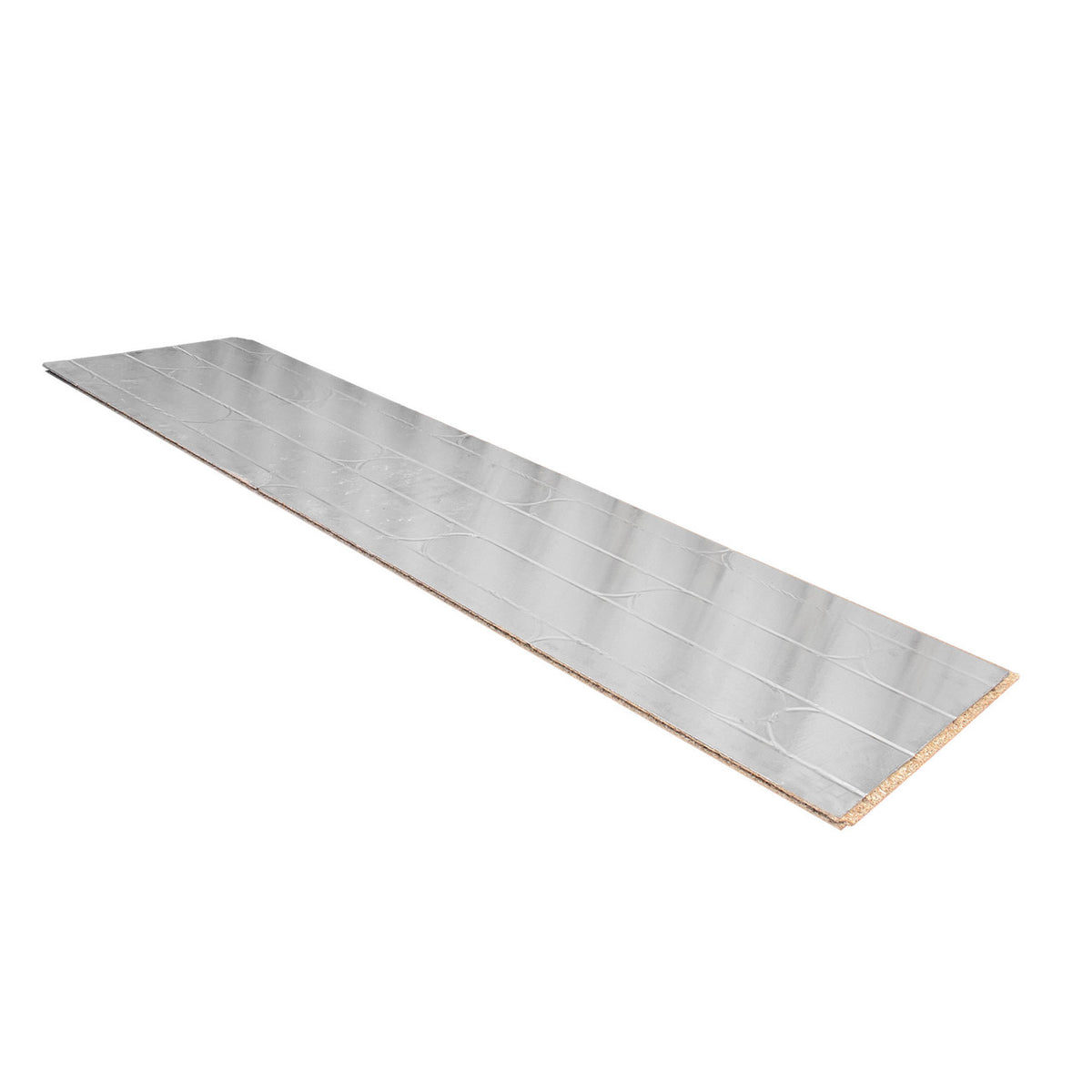

The Adept AD-CHIPBOARD is a complete water underfloor heating system built around foil-faced, pre-grooved structural chipboard panels.

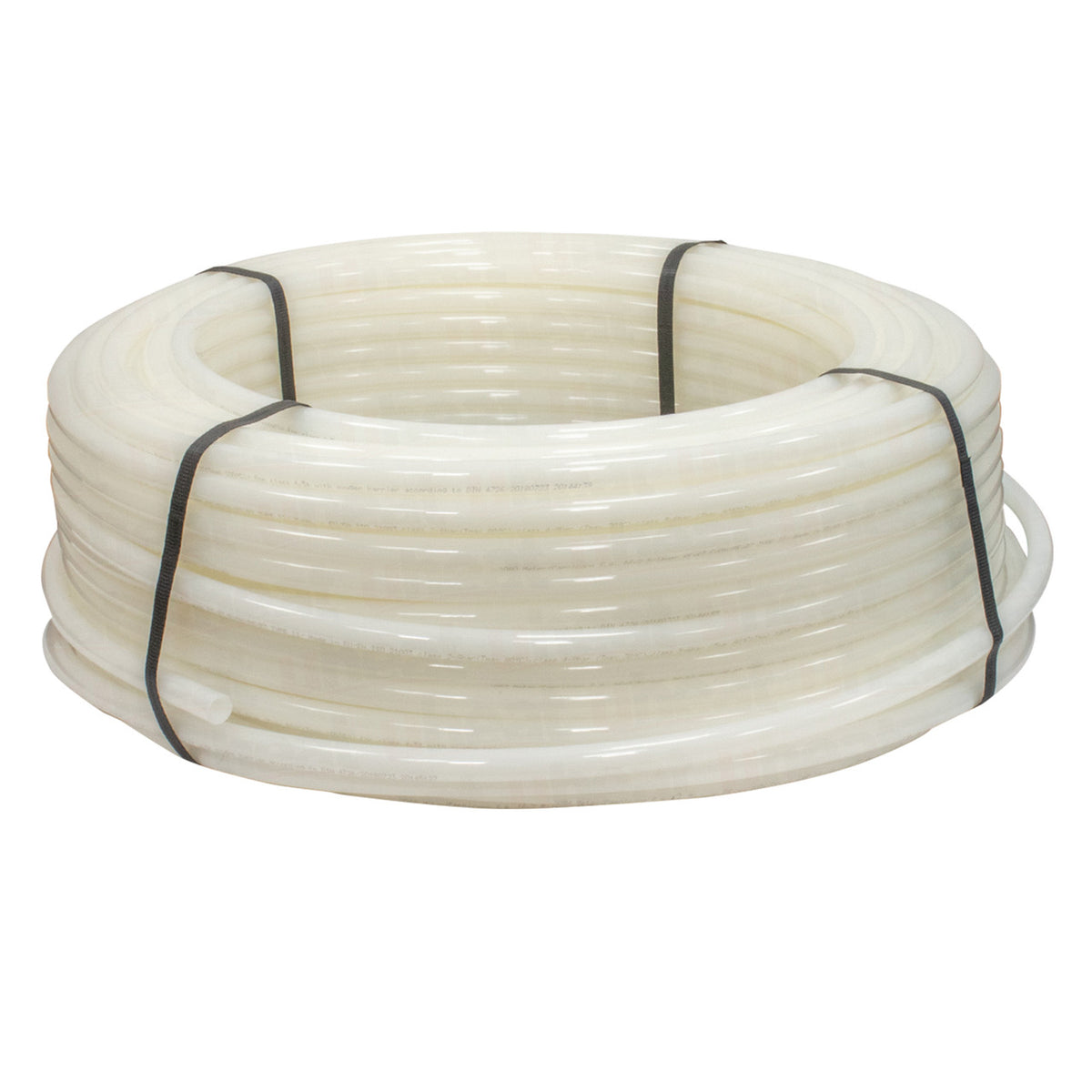

The system combines 22mm P5 moisture-resistant tongue-and-groove panels, 12mm PERT heating pipe and an A-rated pump. Designed for installation at 150mm pipe centres, it can deliver up to 100W/m² and is supplied as a single heating zone. Kits cover clear heated areas from 12m² to 97m².
Why choose the AD-CHIPBOARD system?
- The grooved panels combine the structural floor deck and pipe-retention layer in one system.
- Factory-applied foil helps spread heat across the floor surface.
- P5 moisture-resistant chipboard panels have tongue-and-groove edges for a secure floor construction.
- Preformed channels create a consistent pipe layout at 150mm centres.
- Suitable for solid/screed, beam-and-block, suspended-timber and batten-floor constructions when installed as part of an appropriate build-up.
- Compatible with Adept or Heatmiser controls.
What is included with each AD-CHIPBOARD kit?

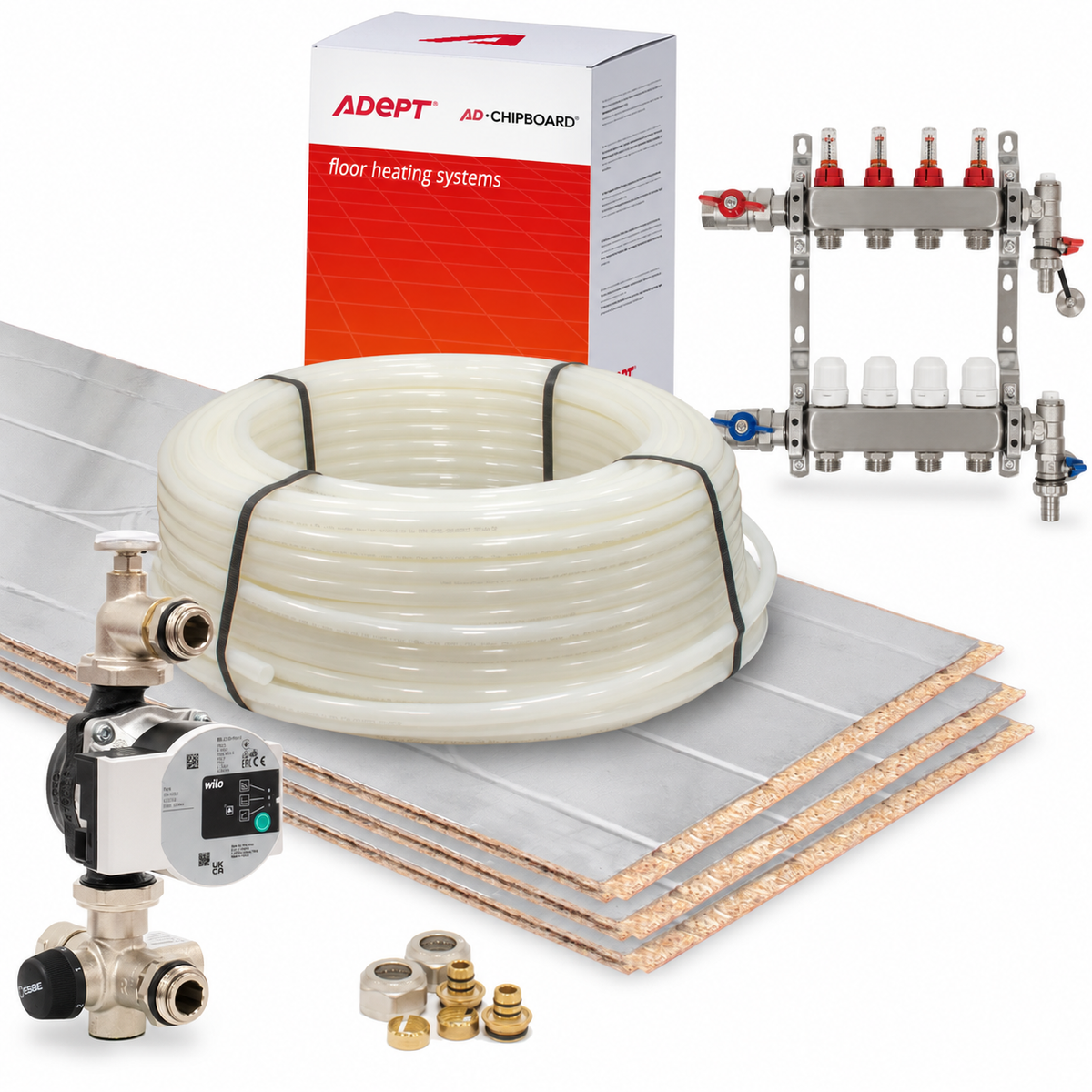

Each kit contains the foil-faced grooved chipboard panels, 12mm PERT heating pipe, pipe connectors and the appropriate control arrangement for the selected coverage.

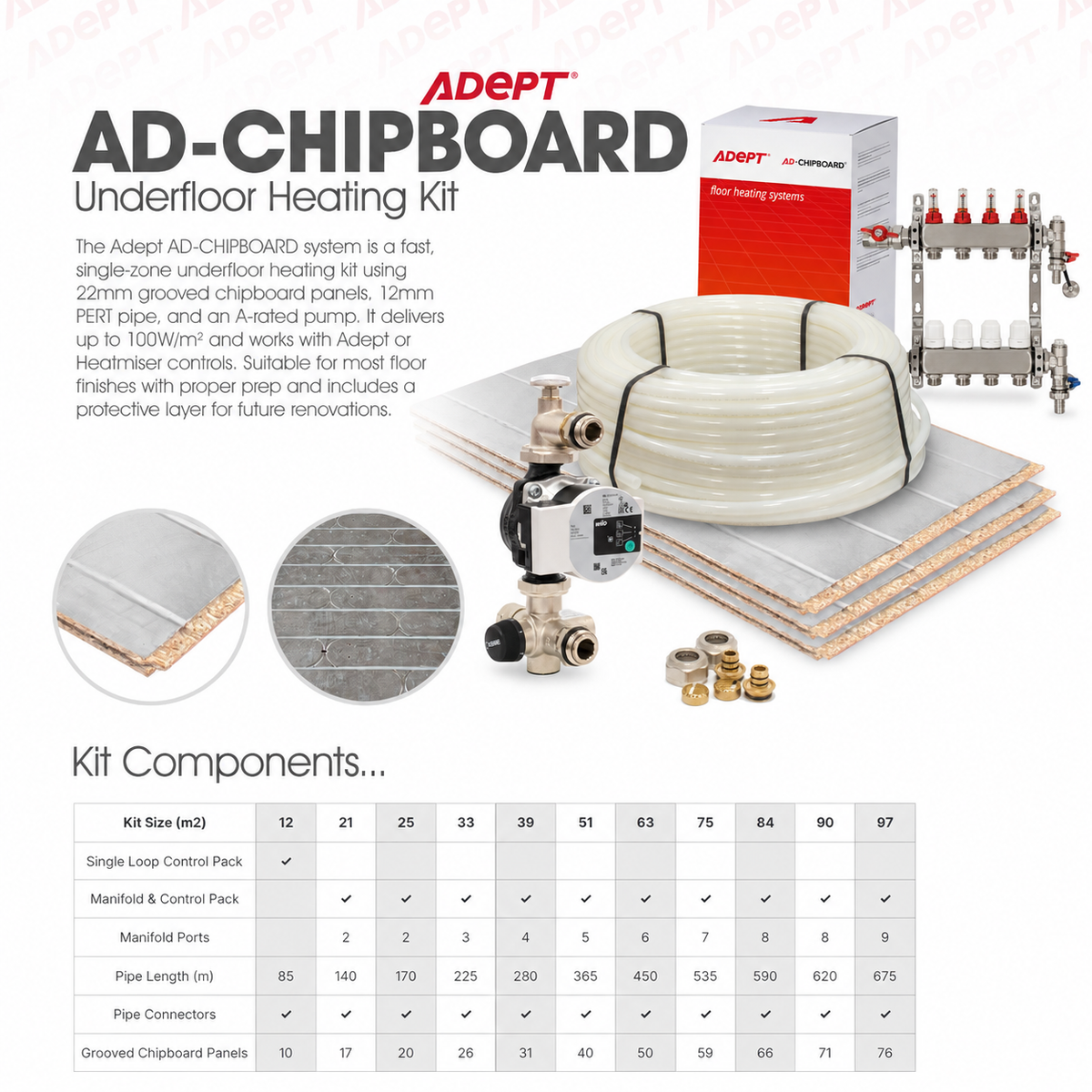

Kit components by size
The quantities below are taken from the supplied 2026 AD-CHIPBOARD kit schedule. Choose the kit using the clear floor area that will actually be heated, excluding fixed kitchen units, sanitaryware and other permanent furniture.
Swipe to view all kit components →
| Kit size | Control arrangement | Manifold ports | Pipe supplied | Grooved panels |
|---|---|---|---|---|
| 12m² | Single-loop control pack | — | 85m | 10 |
| 21m² | Manifold and control pack | 2 | 140m | 17 |
| 25m² | Manifold and control pack | 2 | 170m | 20 |
| 33m² | Manifold and control pack | 3 | 225m | 26 |
| 39m² | Manifold and control pack | 4 | 280m | 31 |
| 51m² | Manifold and control pack | 5 | 365m | 40 |
| 63m² | Manifold and control pack | 6 | 450m | 50 |
| 75m² | Manifold and control pack | 7 | 535m | 59 |
| 84m² | Manifold and control pack | 8 | 590m | 66 |
| 90m² | Manifold and control pack | 8 | 620m | 71 |
| 97m² | Manifold and control pack | 9 | 675m | 76 |
Also included with every kit: pipe connectors and the components shown for the selected control arrangement.
How is AD-CHIPBOARD installed?
Install the panels over joists positioned at a maximum of 600mm centres, with suitable insulation between the joists. Glue the tongue-and-groove edges to the adjoining panels and joists, then screw the panels securely to the joists. Press the 12mm heating pipe through the foil and into the preformed channels before pressure-testing the completed pipework.
Floor-finish requirements
Mechanically fix a minimum 6mm layer of flooring-grade plywood over the AD-CHIPBOARD panels before installing the final floor finish. This creates a stable sacrificial deck and helps protect the heating system during future floor replacement or renovation.
- Carpet, laminate and timber: install over the correctly prepared plywood layer in accordance with the floor-finish manufacturer's requirements.
- Tiles and vinyl: ensure the sub-deck is suitable for the selected finish. The required build-up may include thicker plywood, a tile-backer or cement board, or an approved skim layer.
- Compatibility: follow the requirements of the flooring, adhesive, levelling-compound and board manufacturers.
System planning
Confirm the room heat loss, joist layout, insulation, floor build-up and final floor finish before installation. Select the kit by the clear heated floor area and have the system connected, tested and commissioned by a suitably competent installer.
