Room Shape
Map irregular edges, alcoves, obstacles and the full route before selecting a cable.
Electric heating solution
Elektra UltraTec Electric Underfloor Heating Cable
Flexible, ultra-thin electric floor heating for irregular rooms, detailed layouts and awkward floor areas.
Manufactured by ELEKTRA · European-made heating system.
UltraTec is a loose 10W-per-metre heating cable that can be spaced to suit the usable floor area and required output. It is installed within an approved flexible adhesive or self-levelling layer.
Buy online
Choose Your UltraTec Cable
Choose a fixed cable length for your usable heated area and planned output. Confirm the spacing and floor build-up before ordering.

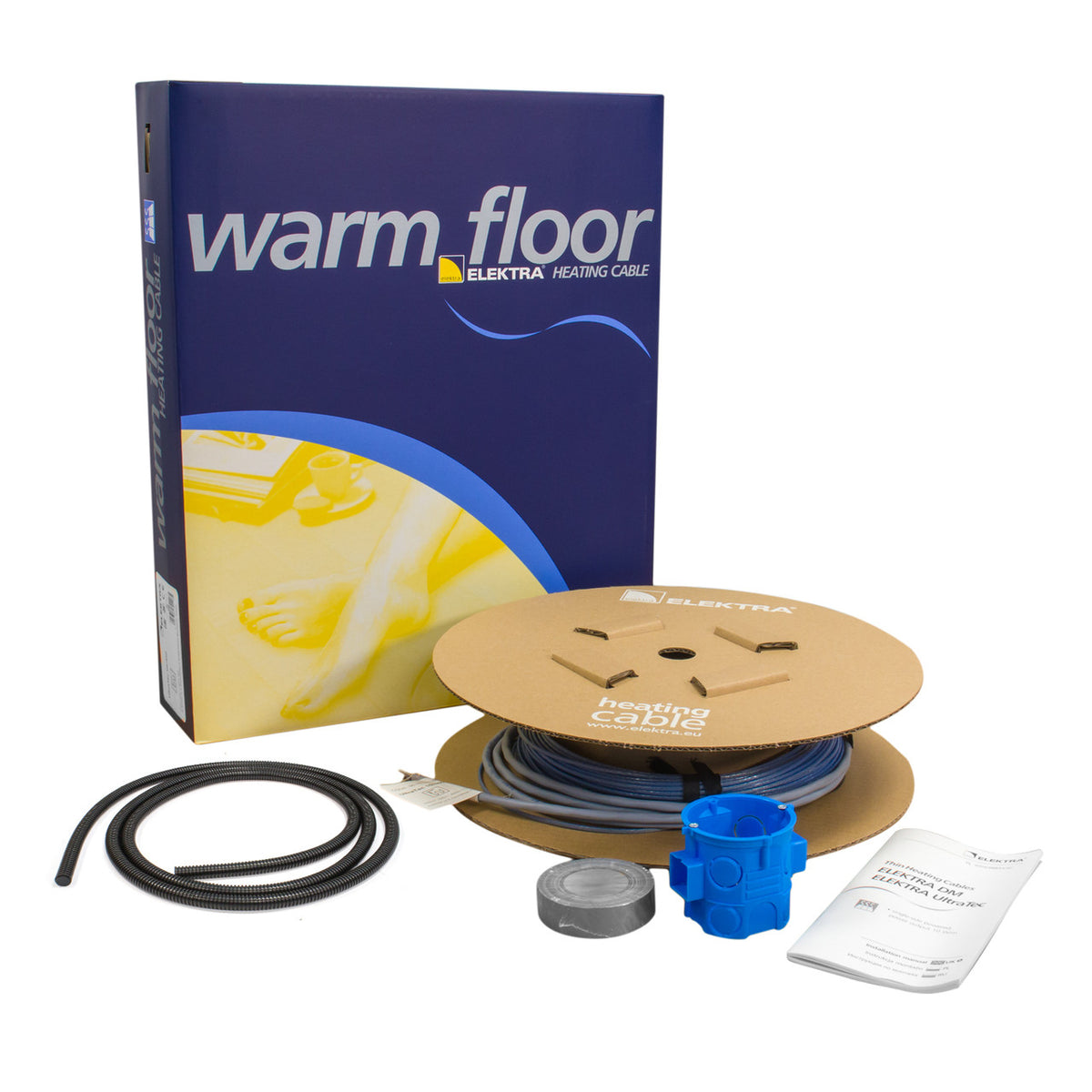

ELEKTRA UltraTec loose heating cable
10W per linear metre, with flexible spacing to follow awkward room shapes and usable floor areas.
Select a cable
Choose your cable size
Compare cable output and estimated coverage at the planned spacing.
The cable cannot be cut or shortened. Coverage depends on the approved spacing; exclude fixed furniture and check the required heat output.
Selected cable
£46.99 inc. VAT
Need help with the cable layout?
See all cable details
The flexible cable solution
What Is An UltraTec Heating Cable?
UltraTec is an ultra-thin, high-temperature-resistant electric heating cable supplied as a ready-to-install length with a cold tail. Unlike a pre-spaced mat, the loose cable can be routed around awkward shapes and fixed obstacles.
The cable delivers 10W per linear metre. Its spacing determines the output per square metre, so the heated area, floor finish and room heat loss must be considered together before the cable is selected.
10W per linear metre
Flexible output through planned spacing
2 × 3mm maximum
Ultra-thin cable profile
100% earthed
Screened cable construction
6–8mm covering
Approved adhesive or levelling compound
Best for irregular rooms and detailed layouts. For open, regular-shaped spaces, a pre-spaced MD heating mat may be simpler.
Choose the right cable
Plan Your Cable Layout
UltraTec is selected by cable length and designed spacing—not by cutting the cable to fit. Start with the actual free floor area and the output the room needs.
Usable Heated Area
Exclude fixed furniture, baths, kitchen units and other areas that must not be heated.
Planned Output & Spacing
Match cable length and spacing to the heated area, required output and floor finish.
Flexible installation
How UltraTec Is Installed
The cable is fixed across the prepared floor at the approved spacing, tested, and then completely covered within the specified floor build-up.
- Prepare a stable subfloor and install suitable insulation where specified
- Plan the complete cable route, cold-tail position and floor-sensor location
- Fix the cable at the approved spacing without crossing, touching or shortening it
- Test the cable, then cover it with the specified adhesive or levelling compound
Designed around the room
Why Variable Spacing Matters
Because UltraTec delivers 10W per metre, the distance between cable runs controls how much heat is installed per square metre. This makes the system flexible, but it also means the layout must be planned before installation.
- Loose cable follows curved, narrow and irregular usable floor areas
- Closer spacing increases output per square metre within the approved limits
- Wider spacing lowers output and may suit compatible temperature-sensitive finishes
- Final spacing must follow the current UltraTec design and installation guidance
Plan the complete installation
Where UltraTec Works Best
UltraTec is particularly useful where a pre-spaced mat cannot cover the usable floor evenly. The final finish determines how the cable must be covered, so confirm every layer before ordering.
- Irregular or awkward rooms where a pre-spaced mat is difficult to position
- Solid, screeded, beam-and-block, suspended timber or batten constructions when correctly prepared
- Tile and stone floors within an approved flexible adhesive or levelling build-up
- Compatible wood, laminate, vinyl or carpet after the cable is fully covered by levelling compound

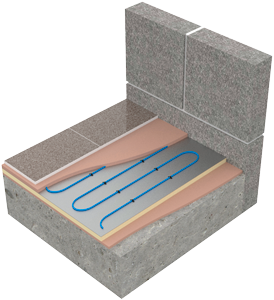

Typical UltraTec Floor Build-Up
UltraTec must be fully contained within a 6–8mm layer of compatible flexible tile adhesive or self-levelling compound before the approved floor finish is installed.
- Prepared and stable subfloor
- Suitable insulation or tile backer board where specified
- UltraTec cable, cold tail and correctly positioned floor sensor
- 6–8mm flexible adhesive or self-levelling compound
- Compatible finished floor
Technical reference
Technical Specification
- Manufacturer
- ELEKTRA
- Cable output
- 10W per linear metre
- Supply
- 230V / 50Hz
- Cable dimensions
- 2 × 3mm maximum
- Cold tail
- 2.5m, three-core
- Insulation / sheath
- FEP (Teflon)
- Protection rating
- IPX8
- Minimum bending radius
- 5D
- Temperature range
- Install from -20°C; maximum working +150°C
- Output tolerance
- +5% / -10%
- Required covering
- 6–8mm flexible adhesive or levelling compound
- Warranty
- Lifetime guarantee available
UltraTec cable advice
Frequently Asked Questions
Clear answers to common questions about selecting, planning and installing an Elektra UltraTec heating cable.
What is UltraTec heating cable?
UltraTec is a loose, ultra-thin ELEKTRA heating cable rated at 10W per linear metre. It is designed for indoor direct floor heating and can be positioned at planned spacings across irregular or awkward usable floor areas.
How do I choose the cable length and spacing?
Measure the free floor area that can actually be heated, decide the required output per square metre and select the cable length closest to the calculated design. The cable cannot be shortened, so confirm the final layout and spacing before ordering.
Can UltraTec be used beneath wood, vinyl or carpet?
Yes, when the selected floor covering is approved for electric underfloor heating and the UltraTec cable is first fully covered by a suitable self-levelling compound. Confirm the complete build-up, temperature limit and thermal resistance with every manufacturer involved.
Can UltraTec cable be cut or shortened?
No. The heating cable must never be cut or shortened. Only the cold tail may be shortened where permitted. Choose a cable length that fits the usable heated area at the approved spacing.
