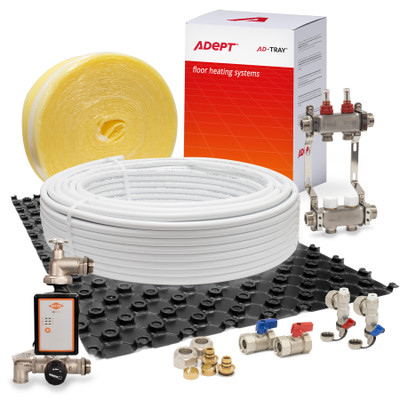

Adept AD-TRAY underfloor heating system is the premier heating kit, including an A rated pump (if selected) and WRAS Approved 16mm PERT-AL-PERT Pipe.
Adept AD-TRAY heating kits are all designed for a single zone, however can be adjusted with the use of any Adept or Heatmiser controls from within our store. The Kits are designed to use 200mm centres to output 100w/m2.
Adept AD-TRAY Specifications:
- Made from 100% recycled high impact plastic.
- Easy to install.
- Minimal amount of waste.
- Tray dimensions: 1220 x 820 x 20mm.
- Each panel covers approximately 1 square metre.
- Made in the UK.
AD-TRAY floor panels allow for fast and easy installation. Trays can be cut to size to fit any room shape, and allow for accurate pipe spacing for even heat distribution.
Kit Size (m2): | ||||||
20 | 40 | 60 | 80 | 100 | 120 | |
Single Loop Control Pack: | ||||||
Manifold & Control Pack: | ||||||
Manifold Ports: | 2 | 3 | 4 | 5 | 6 | |
Pipe Length (m): | 100 | 200 | 300 | 400 | 500 | 600 |
Pipe Connectors: | ||||||
Edge Insulation: | 25 | 25 | 50 | 50 | 75 | 75 |
Trays: | 20 | 40 | 60 | 80 | 100 | 120 |
Notes:
- To comply with building regulations, you should use a minimum 65mm sand / cement screed or 50mm pumped screed.
Manual Thermostat
The Adept Manual Dial Thermostat is an easy to use simple On/Off switch and an easy to adjust dial to choose your optimum temperature.
Features
- Easy to Use Dial Thermostat for Easy Temperature Control
- No complicated Setup Required
- On/Off Switch
IP Rating: IP20
Max Load: 16 amps
Supply Voltage: 230v
Programmable Thermostat
Programmable Thermostat that is ultra compact and provides precise control and is easily configured to control the temperature and timings for most Heating systems, including Electric or Wet Underfloor Heating Systems.
Features
- Digital 7 Day Programmable or Non Programmable Thermostat
- Up to 6 Heating Periods Per Day
- Built In Sensor and Floor Sensor Included
IP Rating: IP20
Max Load: 16 amps
Supply Voltage: 230v
Intuitive Thermostat
The ELEKTRA MCD5 temperature controller features no knobs or dials, thus becoming optically “friendlier”, and nicely fitting in with the walls. As in previous versions of the ELEKTRA MCD, the simplicity user same remains, but this time with a touchscreen.The controller “learns” the thermal inertia characteristics of the floor, and after some days already knows when to switch the heating on in order to achieve thermal conditions required by users at a precisely set time.
Features
- 6 Event Programming Settings
- Built In Sensor and Floor Sensor Included
- Calender Settings for Planning Weekend Outings or Holdays
IP Rating: 21
Max Load 16 amps
WiFi Thermostat
The Wifi Thermostat is a smartphone controllable stat perfect for use with underfloor heating systems or for use with electric heating devices or valve actuators. Wifi Thermostats allow you to use the included free app from your smartphone (available for both IOS and Android devices) to control the temperature of your heating device. The WiFi Thermostat gives you accurate and precise control anywhere in the home and is a premium choice for any household.
Features
- Smartphone Controllable via App
- Built In Sensor and Floor Sensor Included
- Control via Amazon Echo and Google Home Devices
IP Rating: 21
Max Load 16 amps
The WiFi Thermostats only work on 2.4GHz WiFi
Smart Dial WiFi Thermostat
The Adept Smart Dial WiFi Thermostat is a stylish programmable stat that gives you both manual and smartphone control of your underfloor heating system right at your fingertips. Featuring a textured finish and a smooth dial with an RGB ring light the thermostat to effortlessly blends into your home's aesthetic while giving you full control over your heating time schedule and temperatures.
Features
- Smartphone Controllable via App or Manual Dial Control
- Elegant Display with RGB Ring Light
- Built In Sensor and Floor Sensor Included
IP Rating: 21
Max Load 16 amps
The WiFi Thermostats only work on 2.4GHz WiFi
