AD-EPS400 Underfloor Heating System

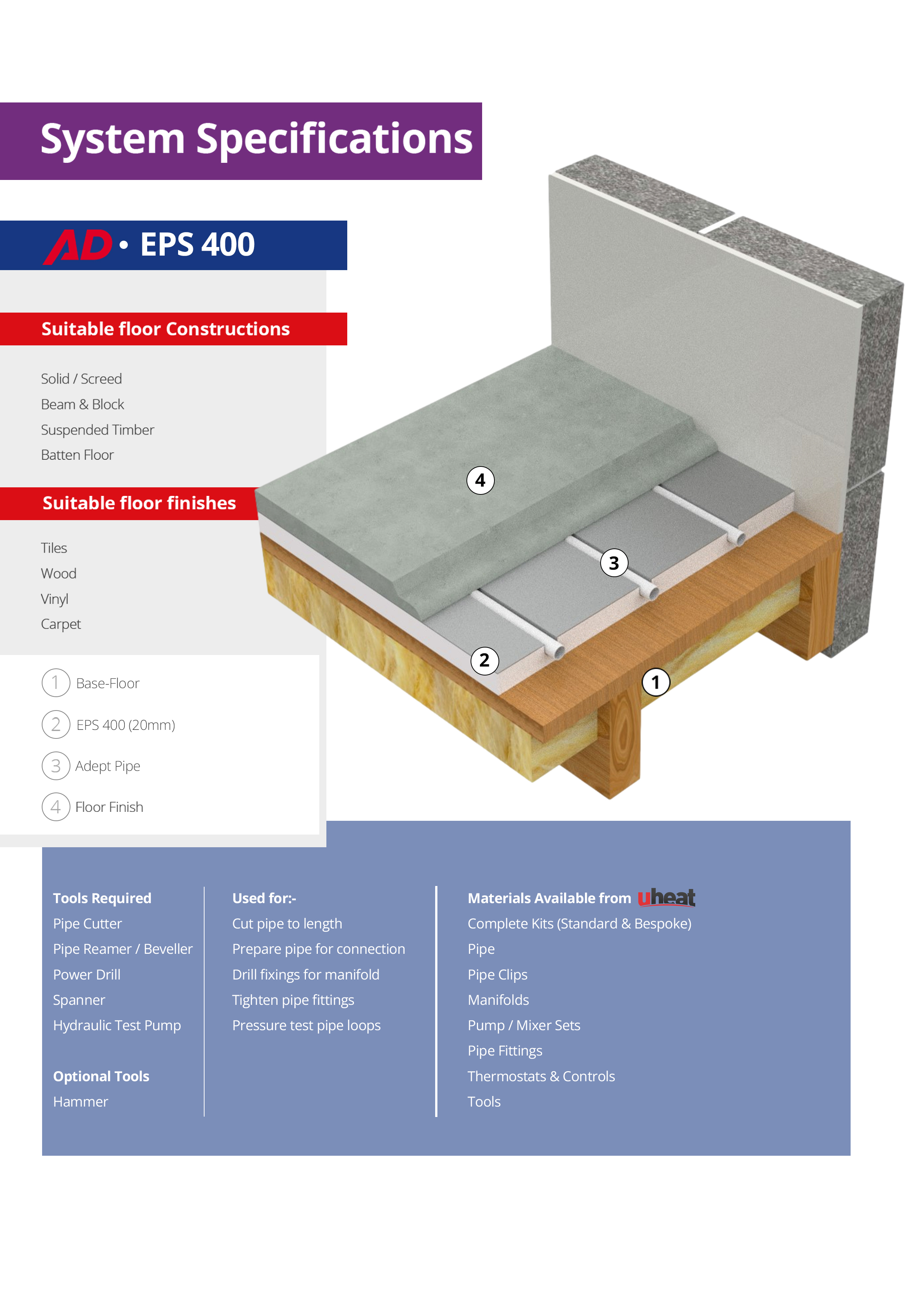

Using a pre-routed foil topped EPS board, the Adept AD-EPS400 water underfloor heating kit will only add 20mm to your floor height. It can be installed on top of dry and level concrete/screed, wooden floors, and be tiled straight on top of when used in conjunction with a recommended tile adhesive or underlay.
Key Benefits:
- AD-EPS400 is ready to be tiled straight on top of, when used in conjunction with the recommended tile adhesive.
- Is quick and easy to install.
- Can be laid onto most existing floors, when installed alongside suitable underlay or adhesive.
- Because of our unique design, our EPS400 board acts as a thermal conductor and pipe retainer.
- No large increase in floor height.
- No need to dig up concrete.
The Kits Contents:
| Kit Size (m2) | 15 | 30 | 45 | 60 | 75 | 90 | 105 |
| Single Loop Control Pack |  |
||||||
| Manifold & Control Pack | |
|
|
|
|
|
|
| Manifold Ports | 2 | 3 | 4 | 5 | 6 | 7 | |
| Pipe Length (m) | 100 | 200 | 300 | 400 | 500 | 600 | 700 |
| Pipe Connectors | |
|
|
|
|
|
|
| AD-EPS400 Panels | 23 | 46 | 69 | 92 | 115 | 138 | 161 |
Standard Delivery - 3 to 5 Working Days
Express Delivery - 1 to 2 Working Days
All our orders are dispatched via Royal Mail, APC Overnight Courier, Fedex or Fortec Pallet Network.
All consignments will require a signature so please ensure that the delivery address will have someone available to sign for the goods.
Due to additional charges imposed by our couriers for deliveries to the Scottish Highlands, offshore islands and Northern Ireland, a surcharge may be levied to cover carriage to these areas (listed below). We advise customers to contact us for a final postage fee before finalising orders.
AB31 to AB38, AB41 to AB45, AB 51 to AB56, BT, FK19 to FK 21, HS1 to HS9, IV1 to IV28, IV30 to IV32, IV36, IV40 to IV49, IV51 to IV56, KA27 to KA28, KW1 to KW3, KW5 to KW17, PA20 to PA49, PA60 to PA78, PH1, PH5 to PH10, PH15 to PH26, PH30 to PH44, TR, GY & E1 to ZE3.
Manual Thermostat
The Adept Manual Dial Thermostat is an easy to use simple On/Off switch and an easy to adjust dial to choose your optimum temperature.
Features
- Easy to Use Dial Thermostat for Easy Temperature Control
- No complicated Setup Required
- On/Off Switch
IP Rating: IP20
Max Load: 16 amps
Supply Voltage: 230v
Programmable Thermostat
Programmable Thermostat that is ultra compact and provides precise control and is easily configured to control the temperature and timings for most Heating systems, including Electric or Wet Underfloor Heating Systems.
Features
- Digital 7 Day Programmable or Non Programmable Thermostat
- Up to 6 Heating Periods Per Day
- Built In Sensor and Floor Sensor Included
IP Rating: IP20
Max Load: 16 amps
Supply Voltage: 230v
Intuitive Thermostat
The ELEKTRA MCD5 temperature controller features no knobs or dials, thus becoming optically “friendlier”, and nicely fitting in with the walls. As in previous versions of the ELEKTRA MCD, the simplicity user same remains, but this time with a touchscreen.The controller “learns” the thermal inertia characteristics of the floor, and after some days already knows when to switch the heating on in order to achieve thermal conditions required by users at a precisely set time.
Features
- 6 Event Programming Settings
- Built In Sensor and Floor Sensor Included
- Calender Settings for Planning Weekend Outings or Holdays
IP Rating: 21
Max Load 16 amps
WiFi Thermostat
The Wifi Thermostat is a smartphone controllable stat perfect for use with underfloor heating systems or for use with electric heating devices or valve actuators. Wifi Thermostats allow you to use the included free app from your smartphone (available for both IOS and Android devices) to control the temperature of your heating device. The WiFi Thermostat gives you accurate and precise control anywhere in the home and is a premium choice for any household.
Features
- Smartphone Controllable via App
- Built In Sensor and Floor Sensor Included
- Control via Amazon Echo and Google Home Devices
IP Rating: 21
Max Load 16 amps
The WiFi Thermostats only work on 2.4GHz WiFi
Smart Dial WiFi Thermostat
The Adept Smart Dial WiFi Thermostat is a stylish programmable stat that gives you both manual and smartphone control of your underfloor heating system right at your fingertips. Featuring a textured finish and a smooth dial with an RGB ring light the thermostat to effortlessly blends into your home's aesthetic while giving you full control over your heating time schedule and temperatures.
Features
- Smartphone Controllable via App or Manual Dial Control
- Elegant Display with RGB Ring Light
- Built In Sensor and Floor Sensor Included
IP Rating: 21
Max Load 16 amps
The WiFi Thermostats only work on 2.4GHz WiFi
